Multi-Flash 500
Designed with a flexible 3oz., 5oz., or 7oz. sheet of copper laminated on both sides with a polymer fabric. Multi-Flash™ 500 uses include: cavity wall flashing, foundation sill flashing, flexible flashing, head and sill flashing and through-wall flashing and has a life of the wall warranty.
- No staining
- Life of the wall warranty
- Best in class puncture & tear resistance
- Made of 90% recycled material
- Copper meets ASTM B370-12
- Fire resistant: ASTM E84 Class B material
- Mold resistant: passes ASTM D3273
- Meets all performance specifications for asphaltic copper fabric flashing
- 90 day UV exposure
- Flexible and easy to cut and form by hand
- 60' rolls for less lap joints
- HPD# available upon request

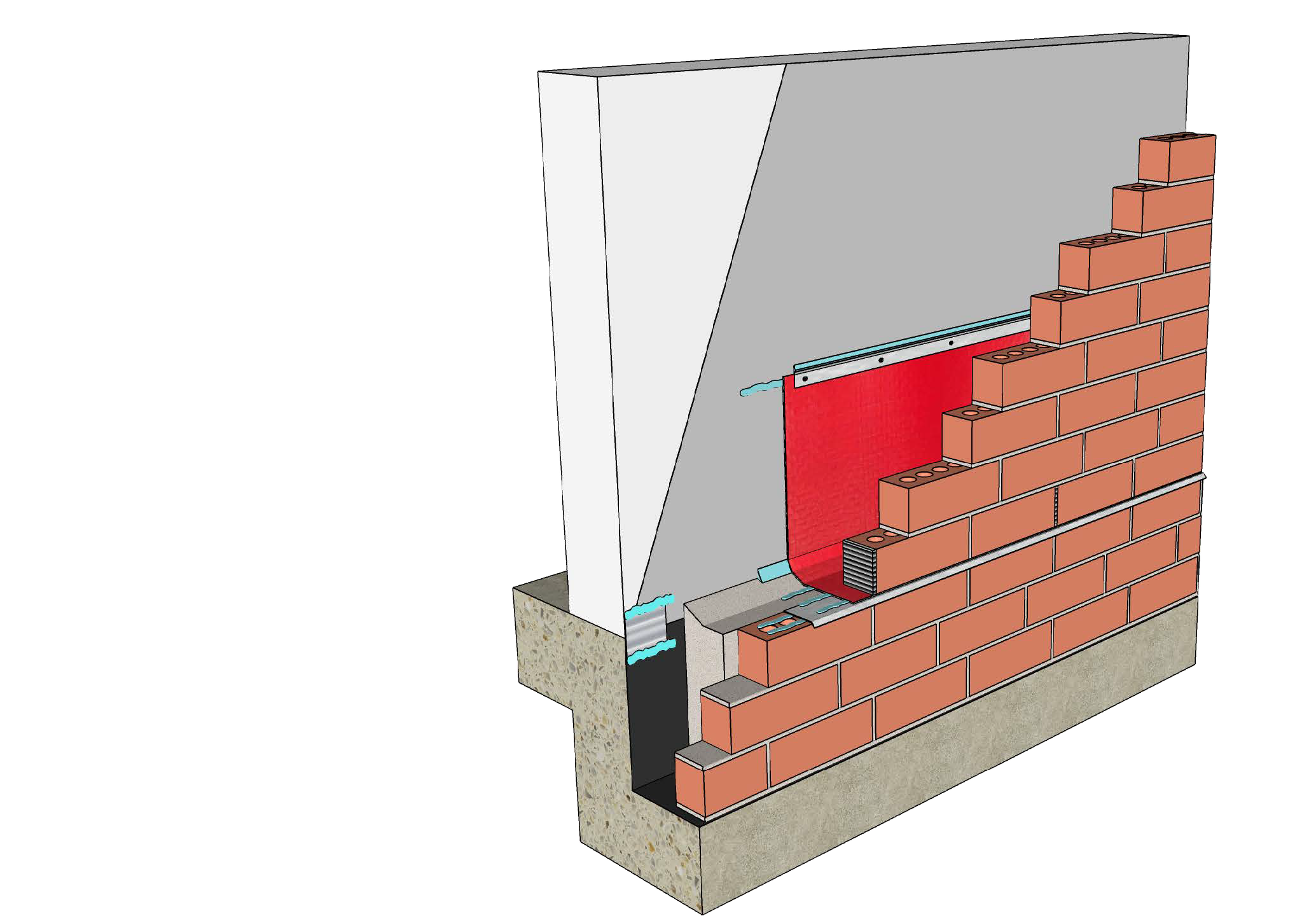

- Through-wall flashing
- Transition membrane (air barriers, roofing, waterproofing)
- Roof to parapet flashing
- Jamb closure flashing
- Air barriers
- Spray polyurethane Foam
- Insulations boards
- Construction sealants
Tech Data

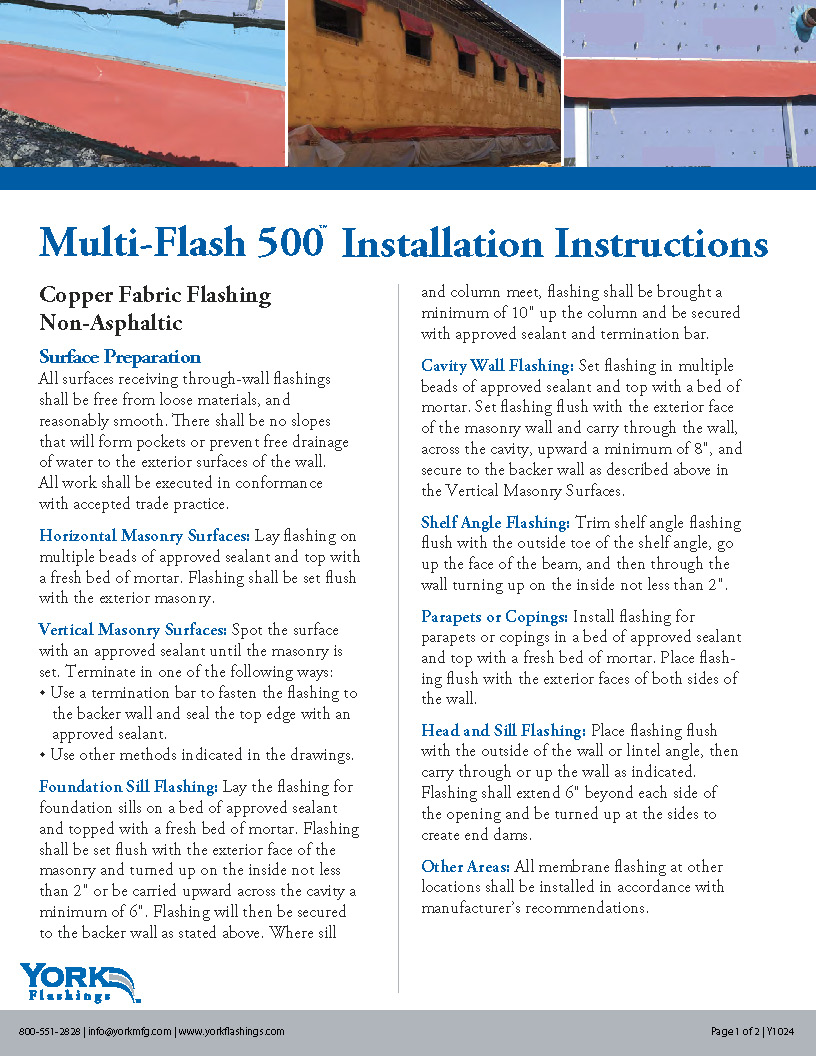

Installation Instructions
3 Part Spec
Details 2D and 3D

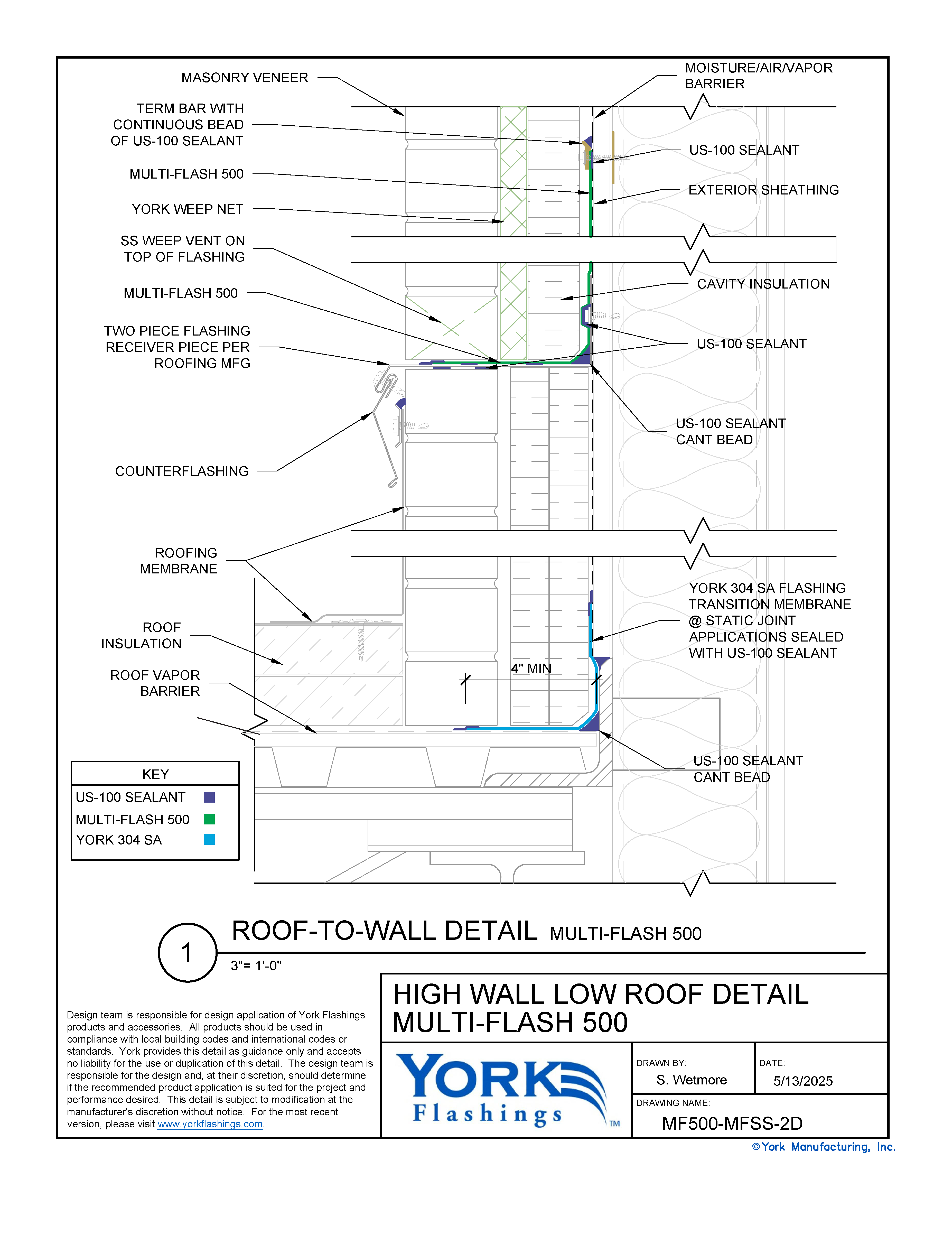

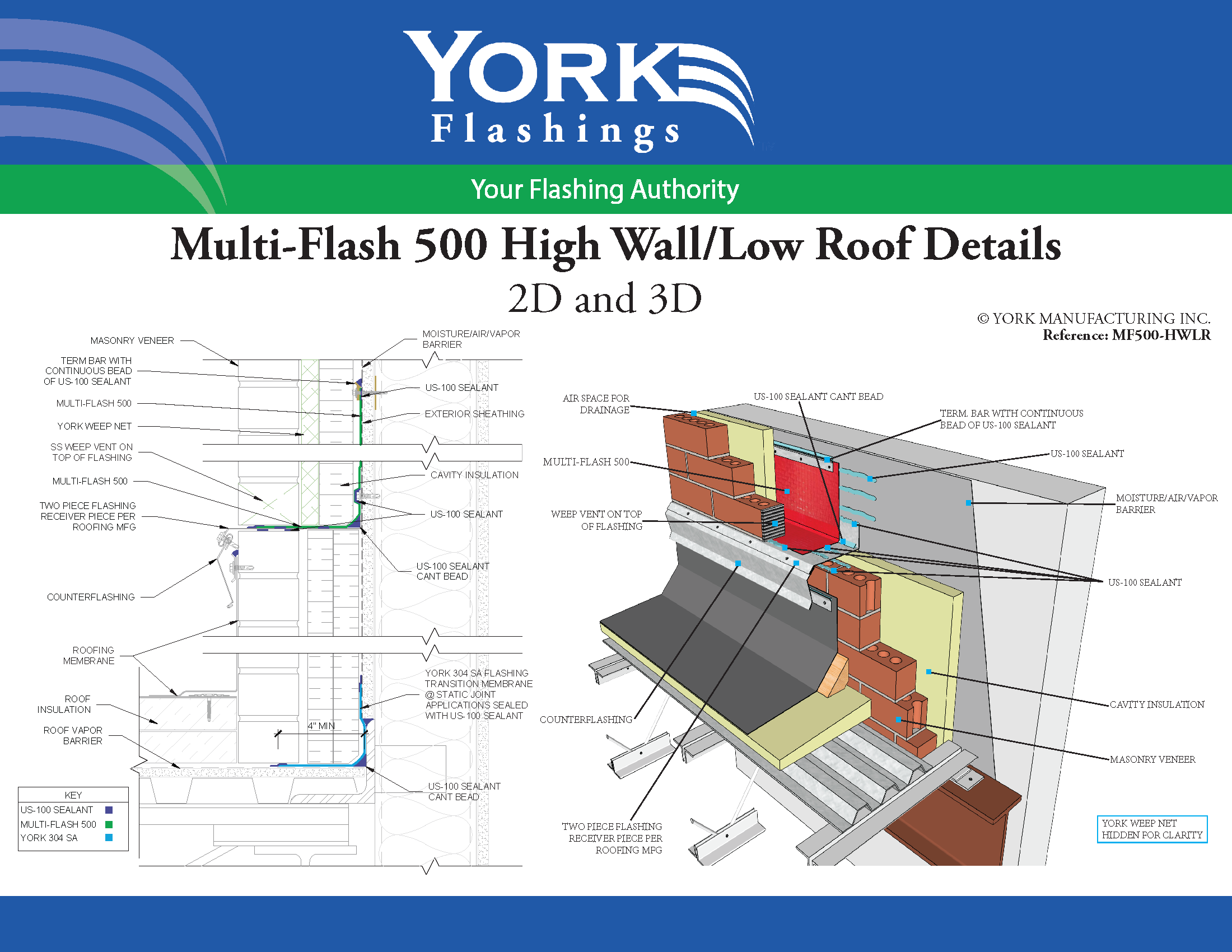

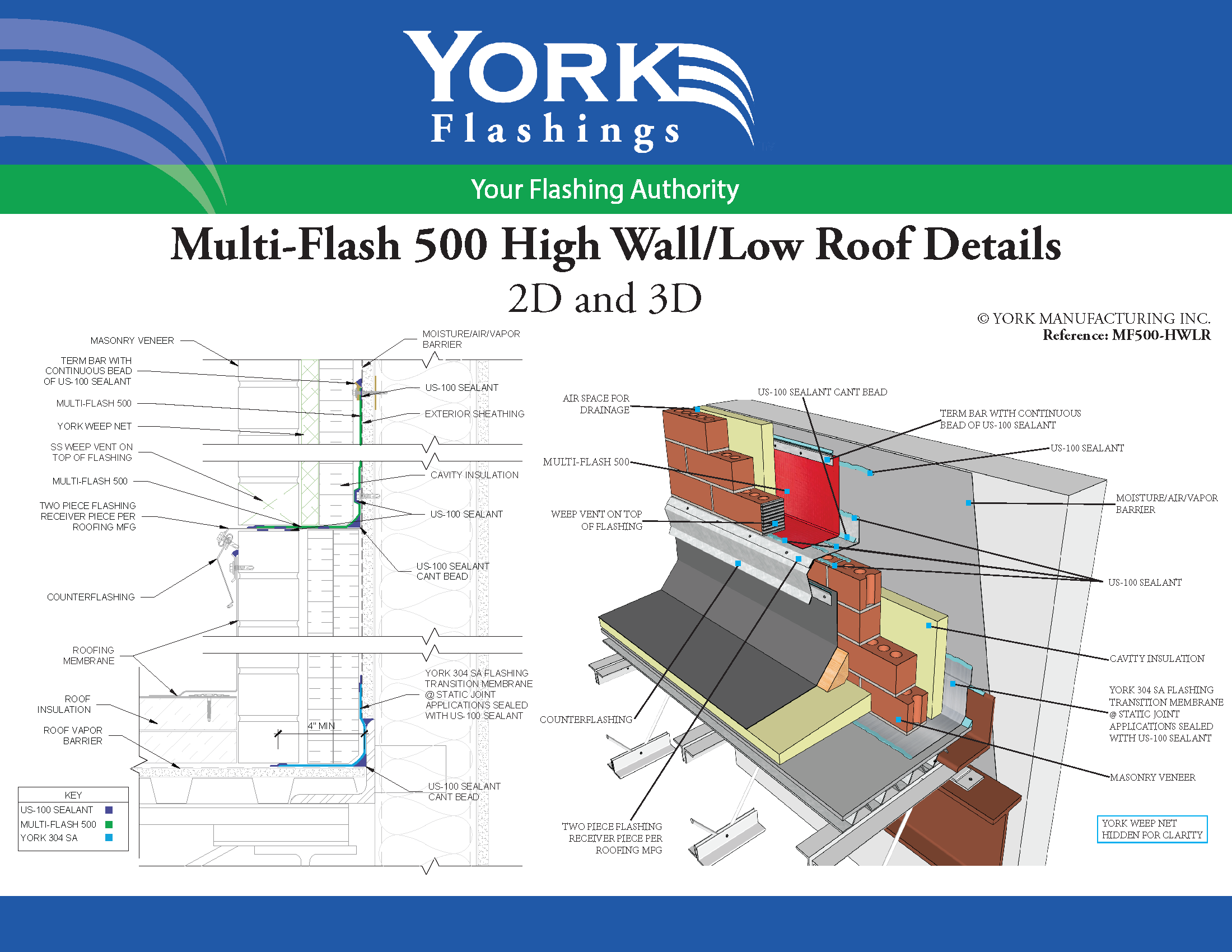

High Wall Low Roof

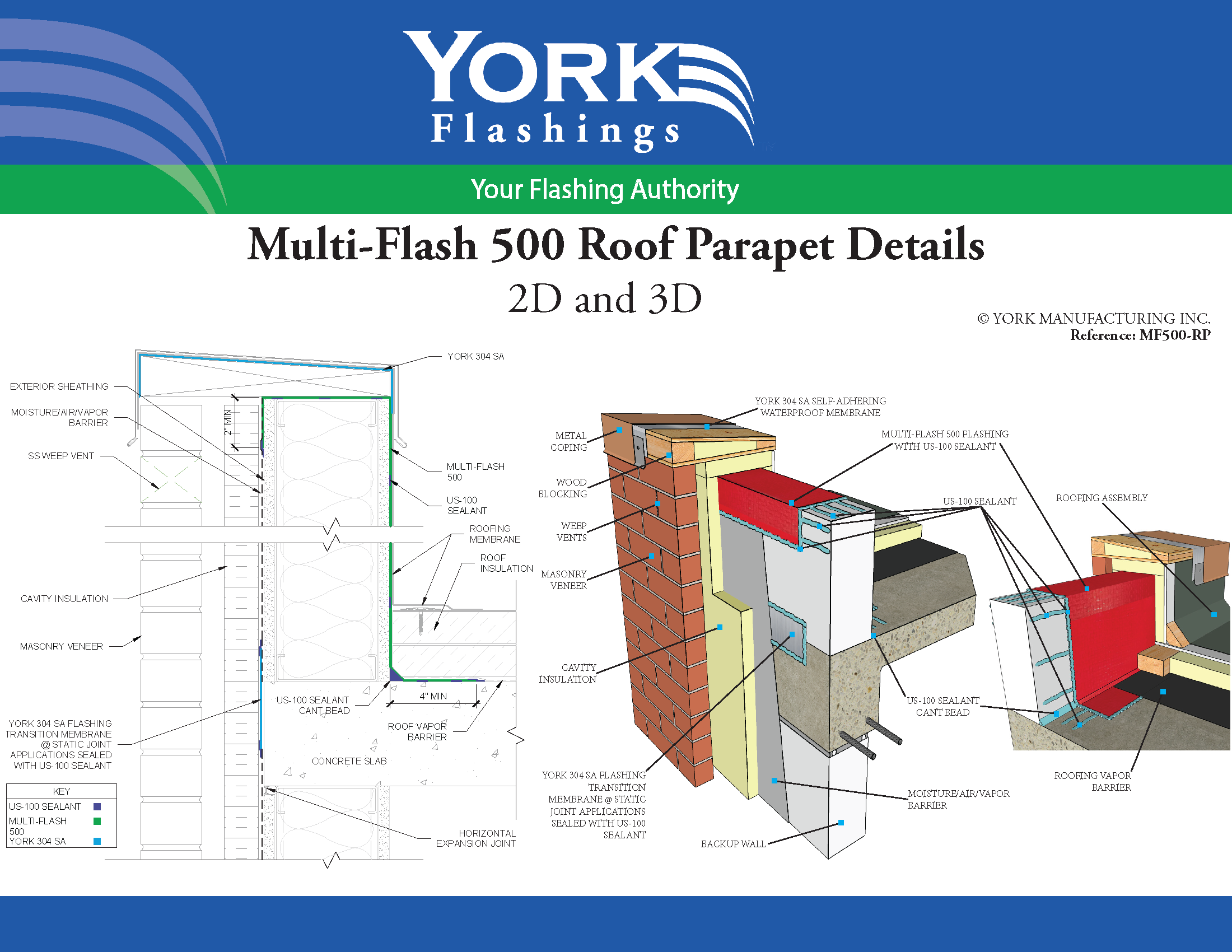

Roof to Wall Parapet

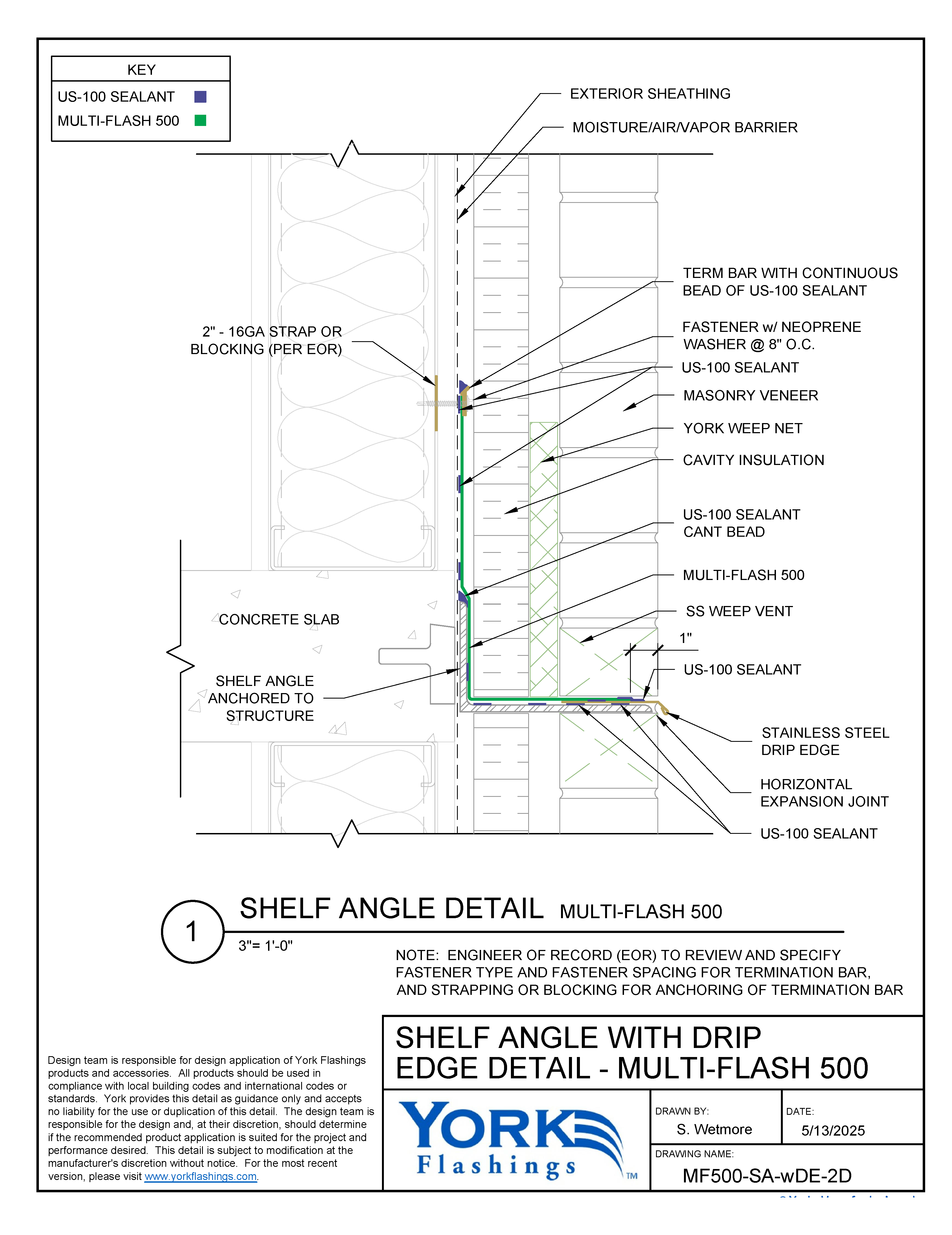

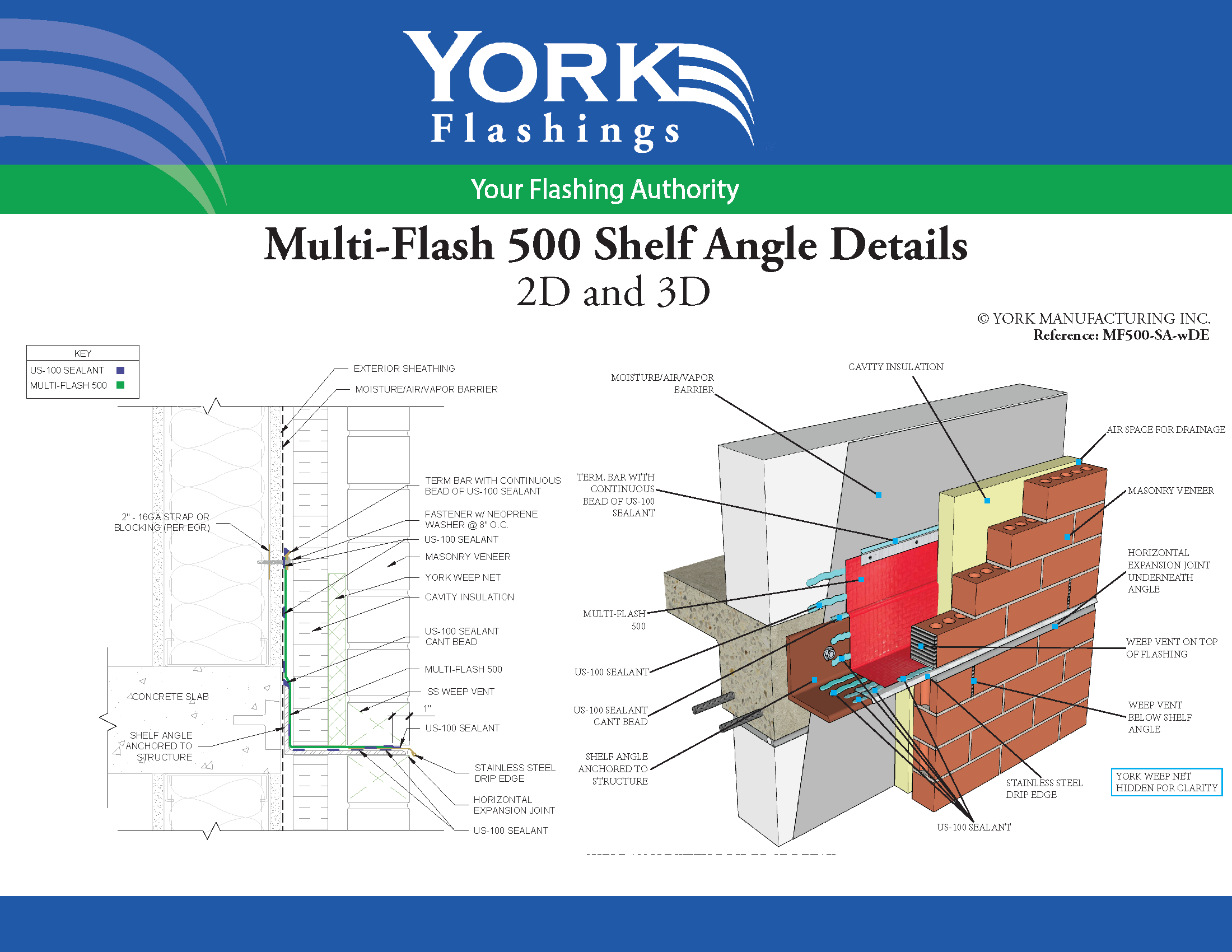

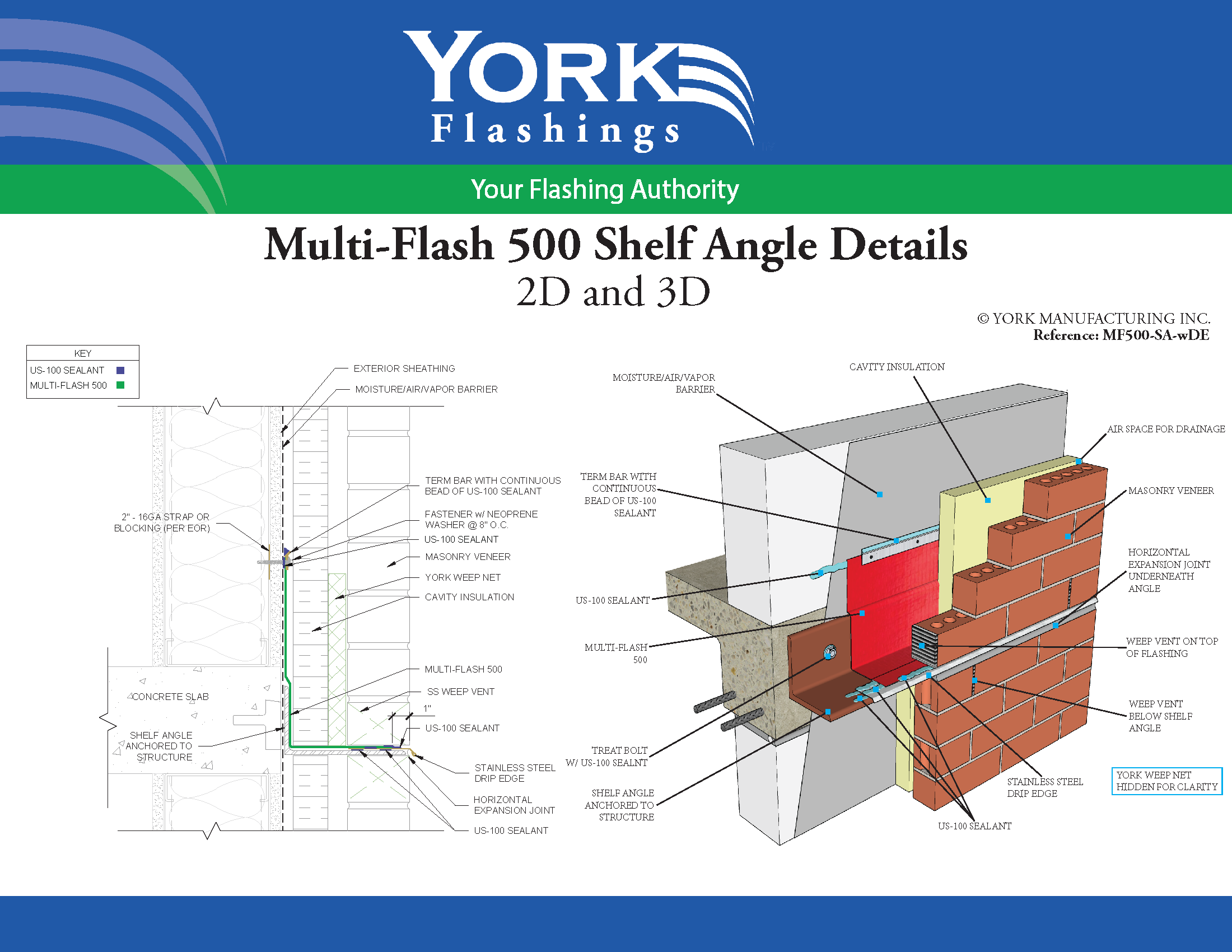

Shelf Angle

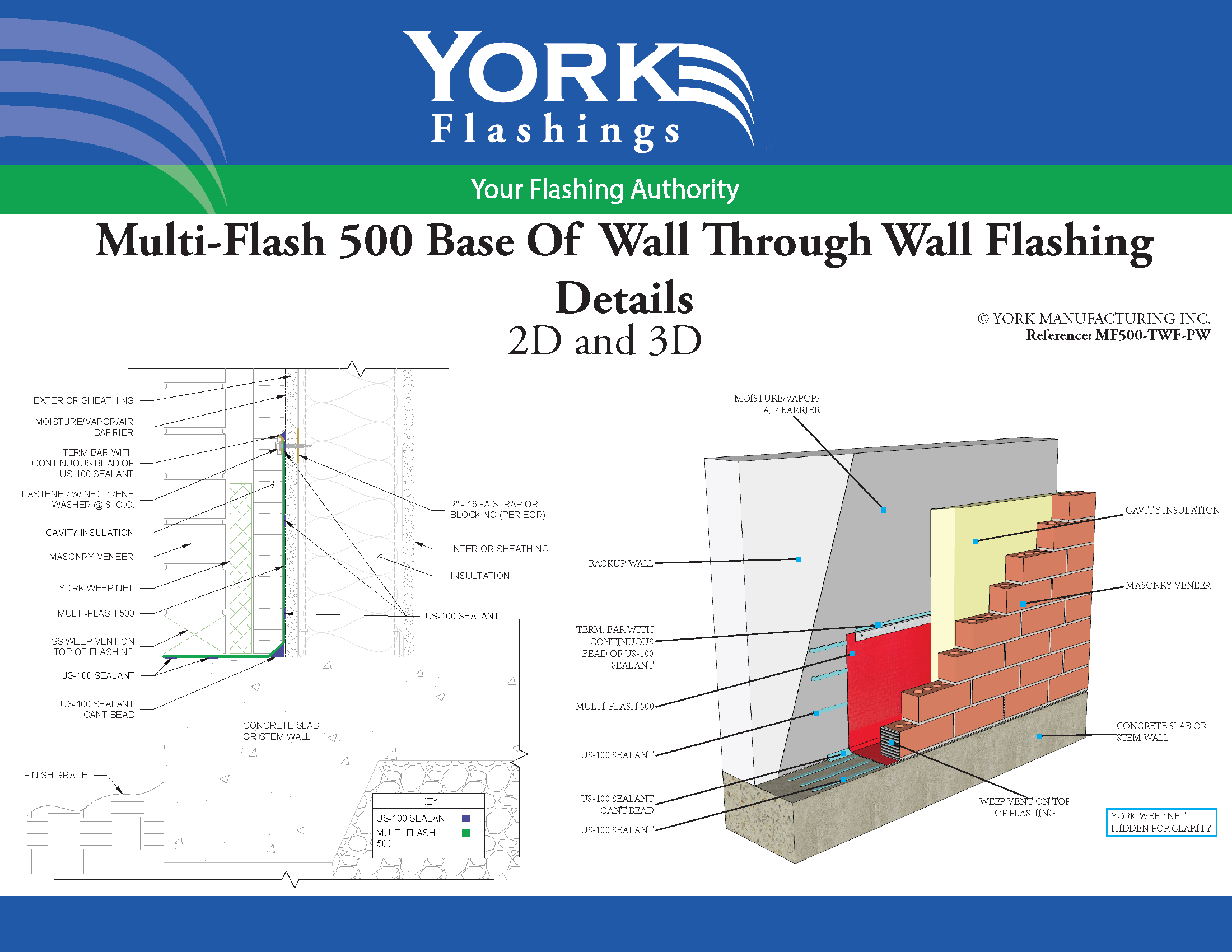

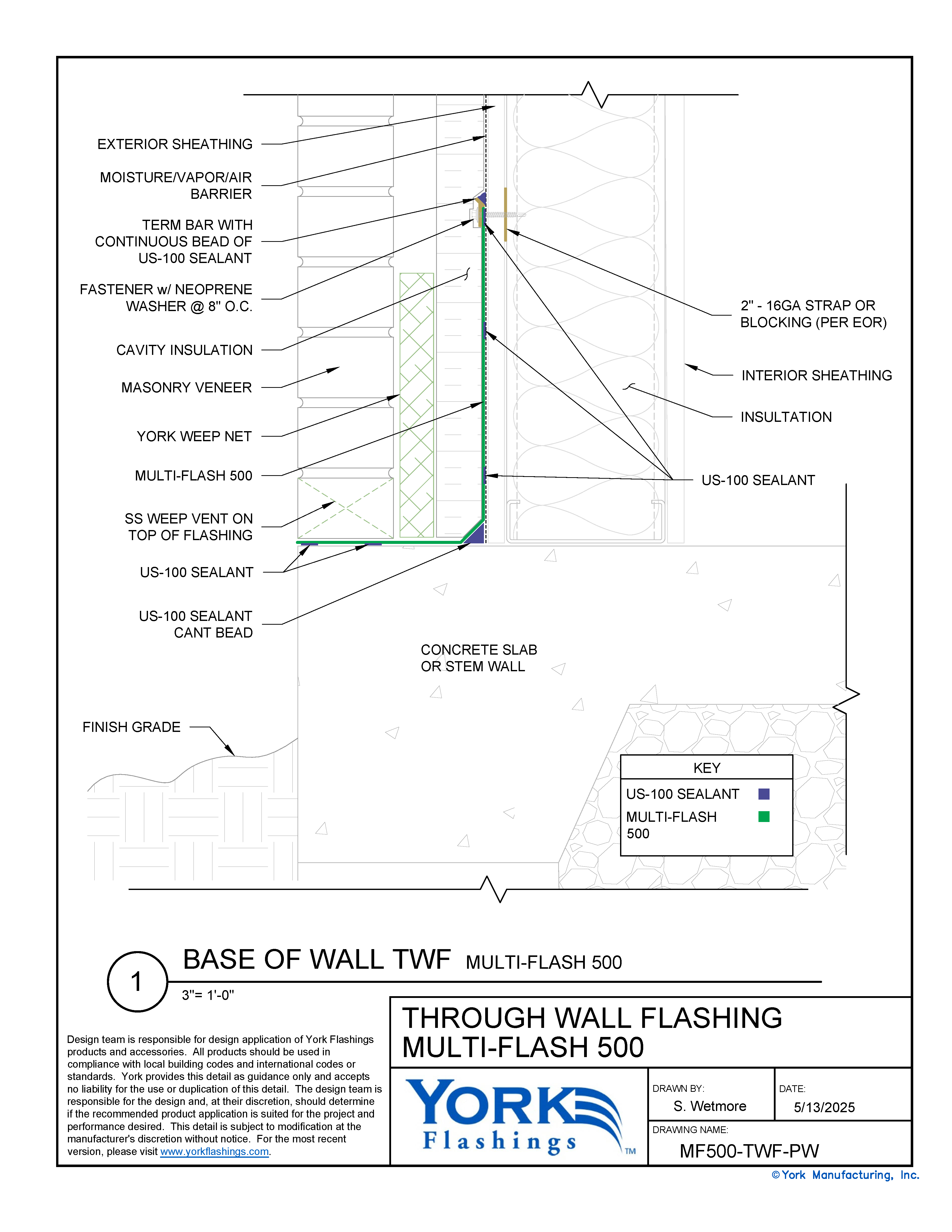

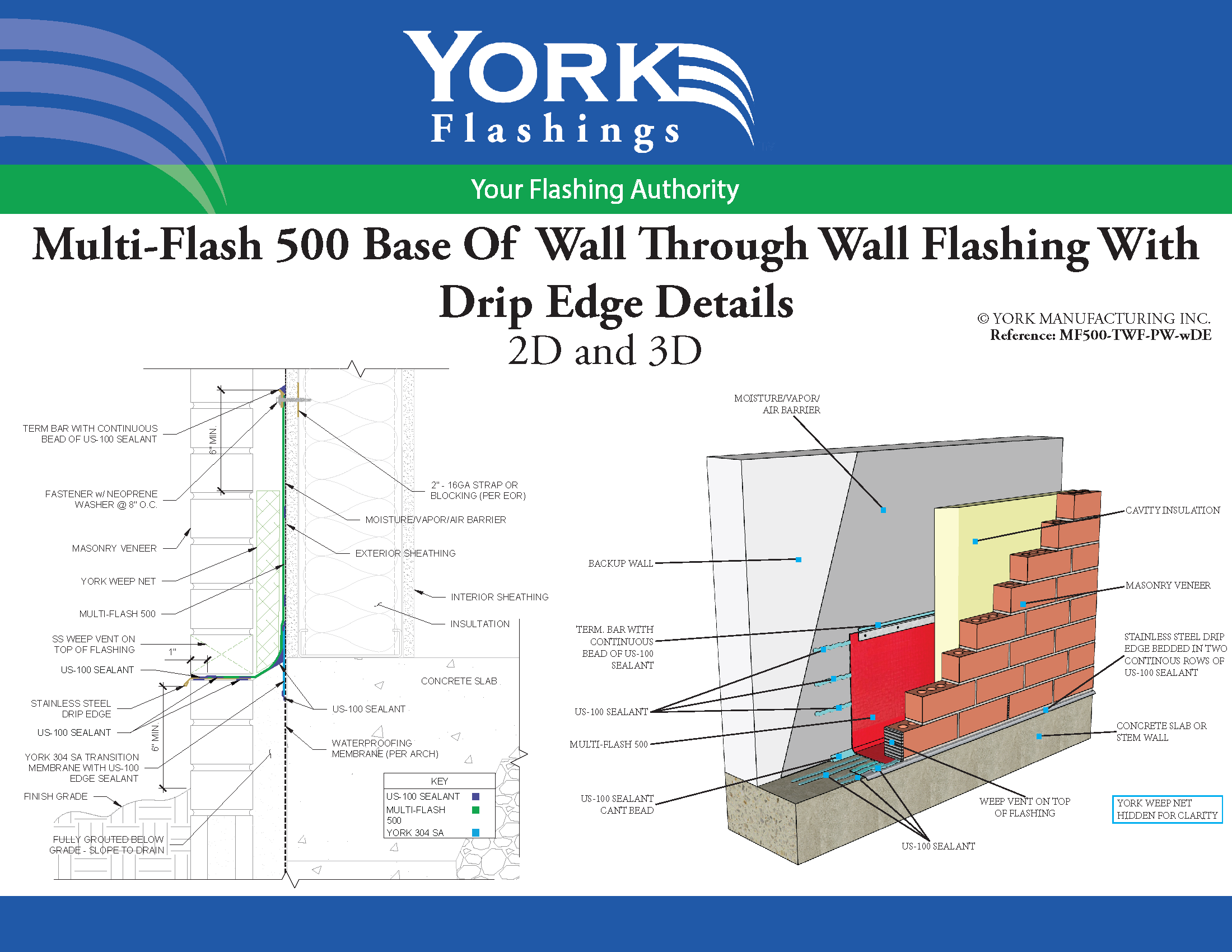

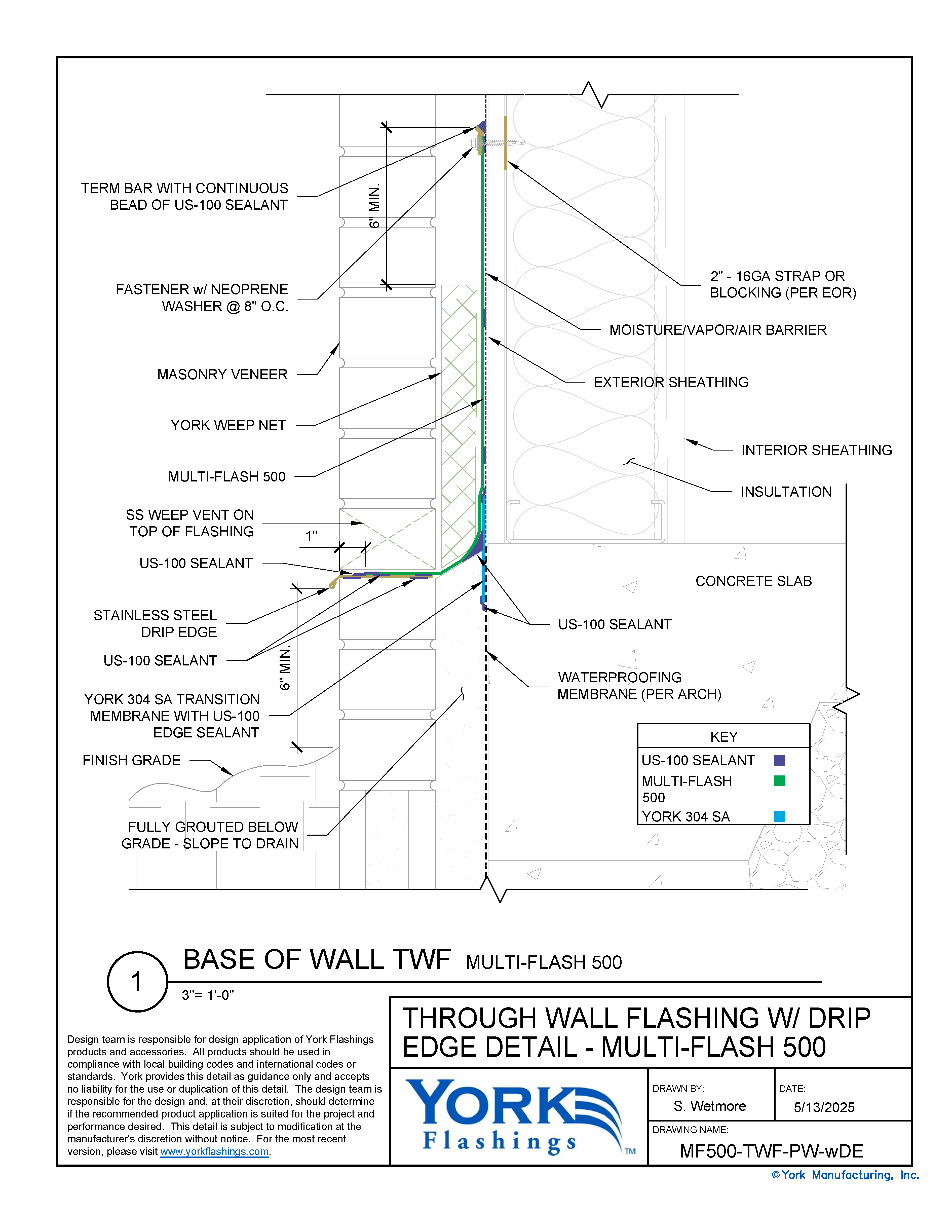

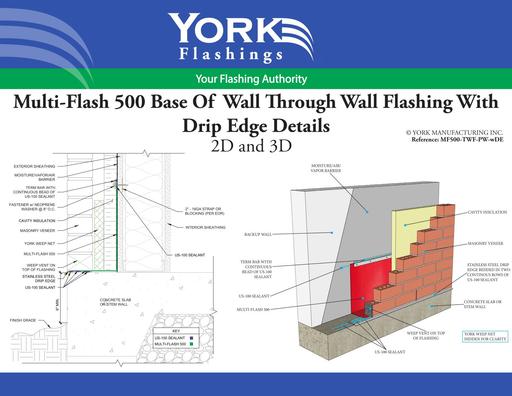

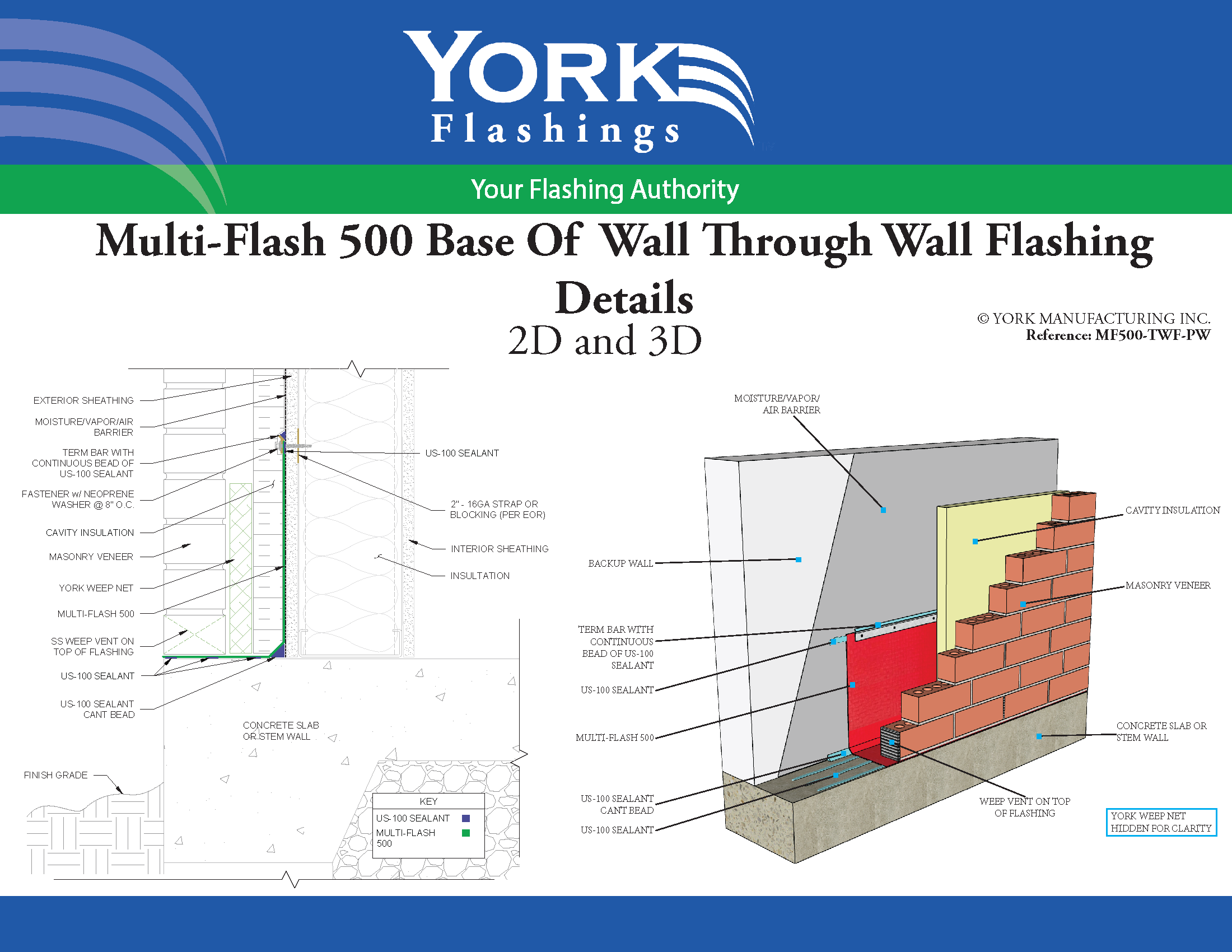

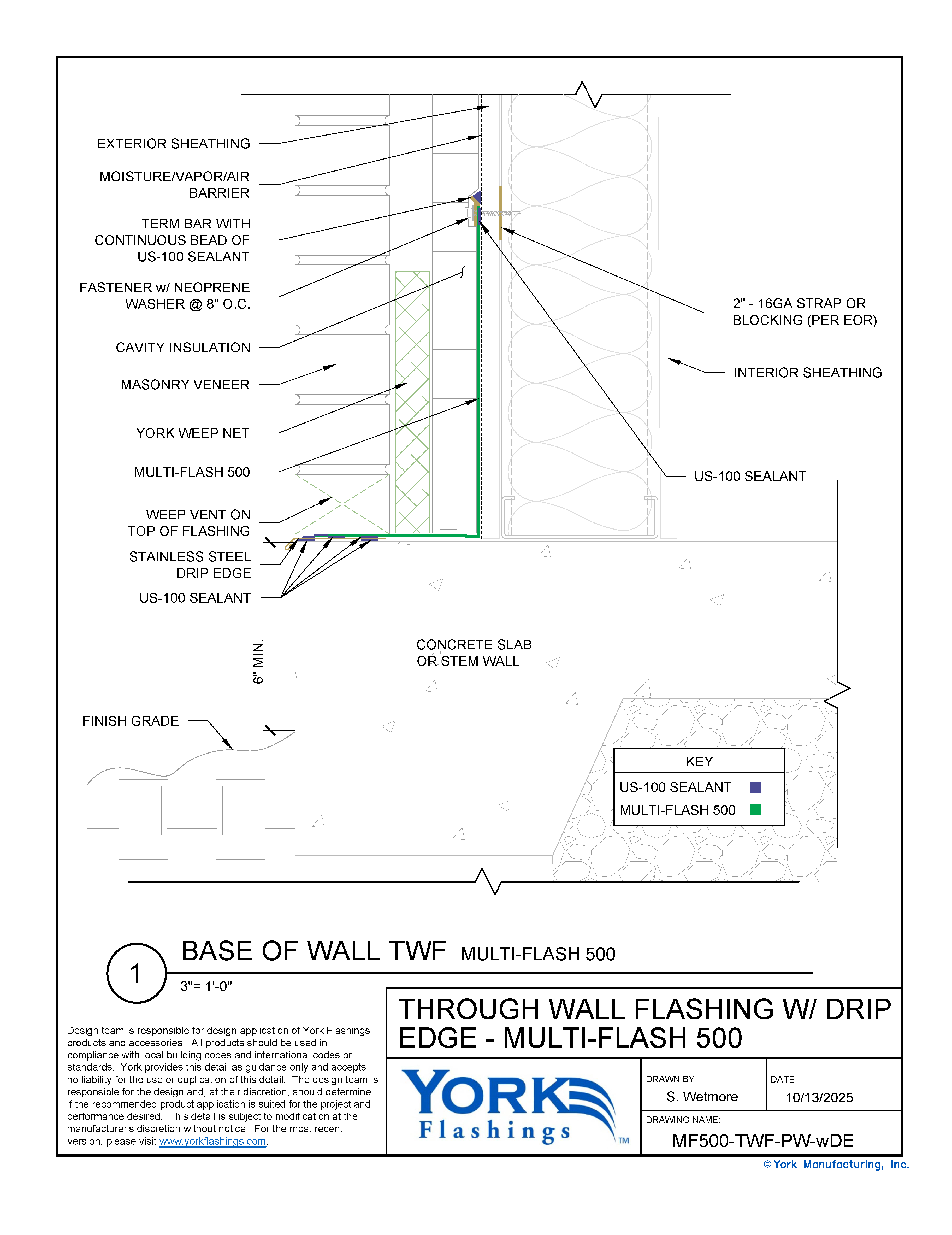

Through Wall Flashing

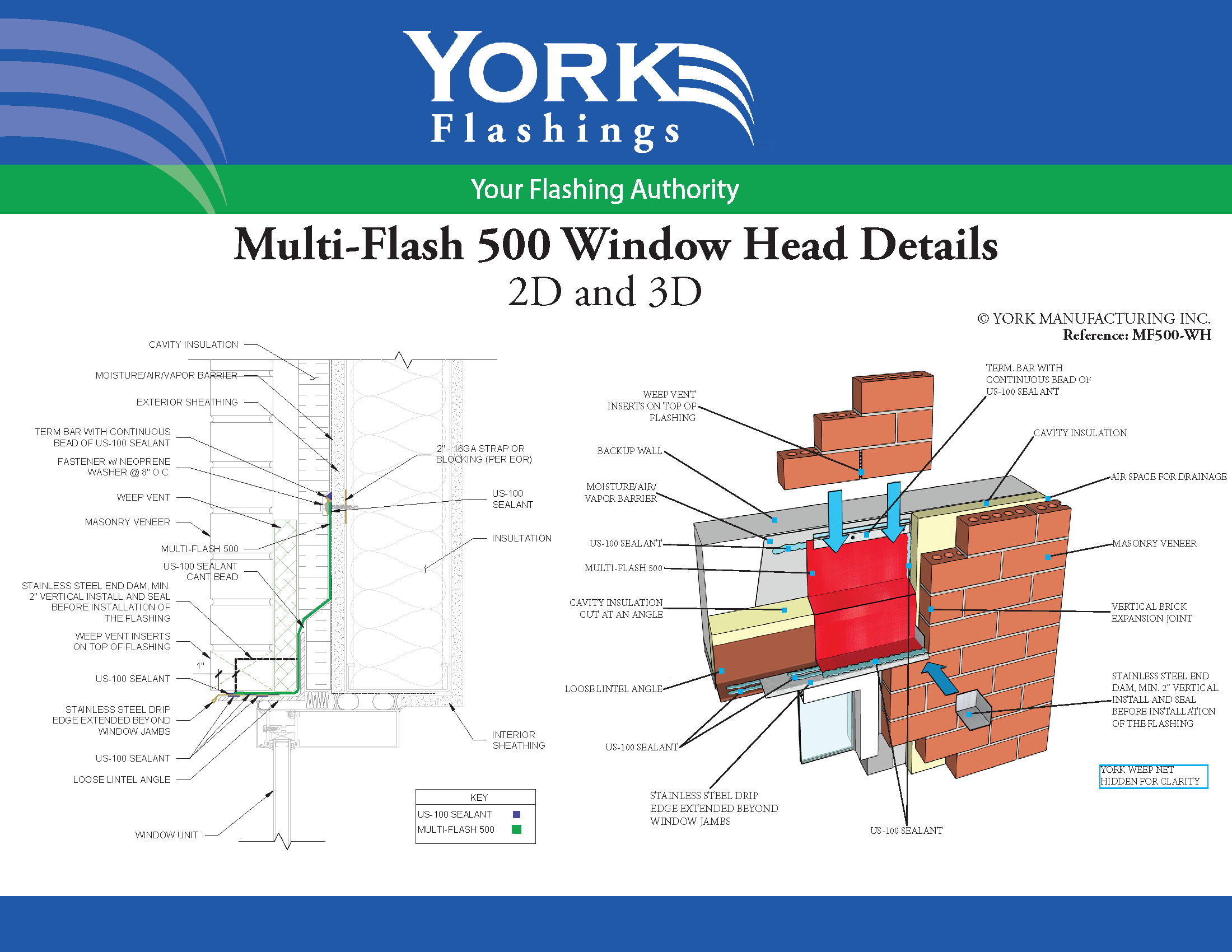

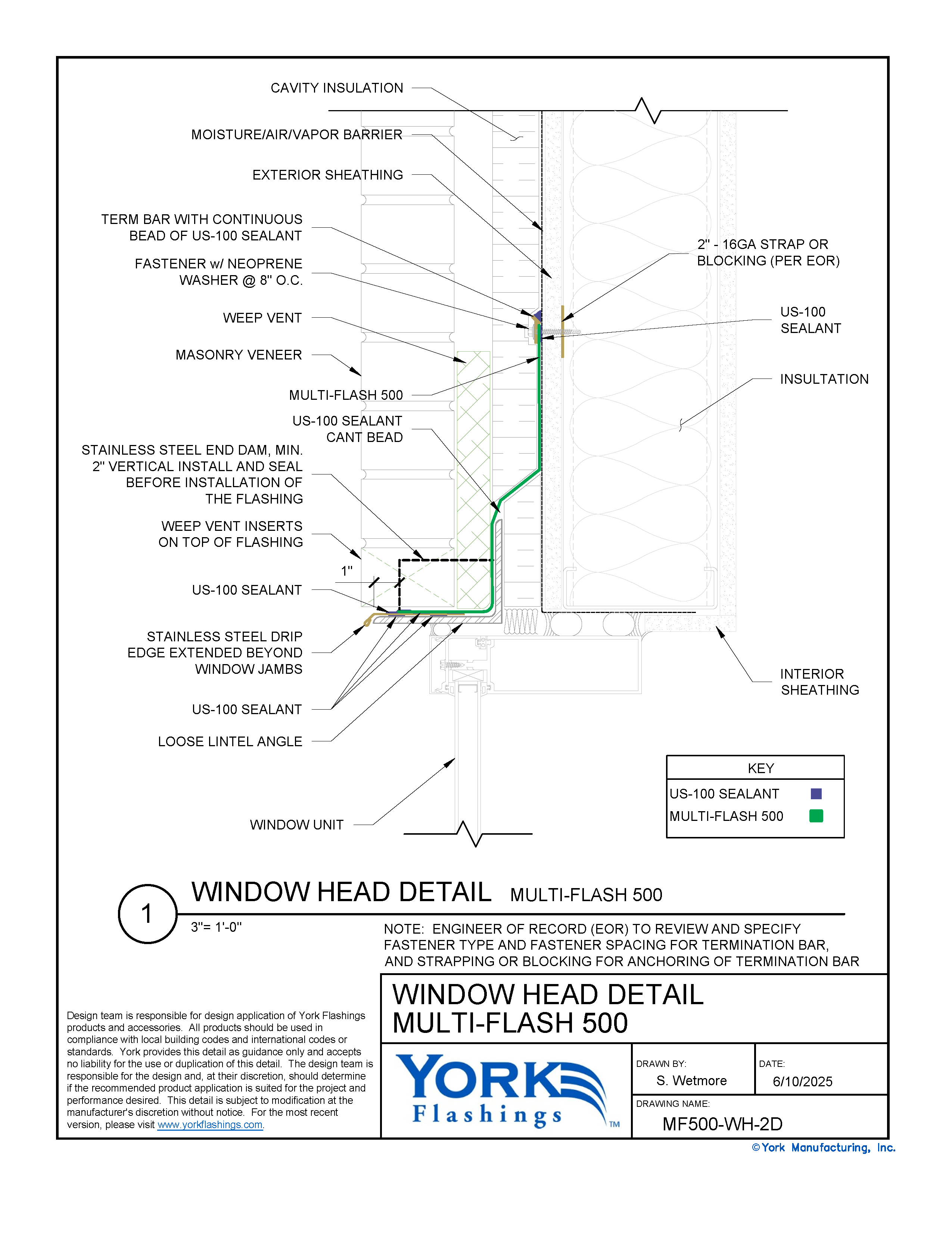

Window Head w Term Bar
BIM
HPD
LEED
SDS
Submittal Form
Submittal
Sub Request
Multi-Flash 500
Copper Flashing - Offers best in class puncture and tear resistance.
