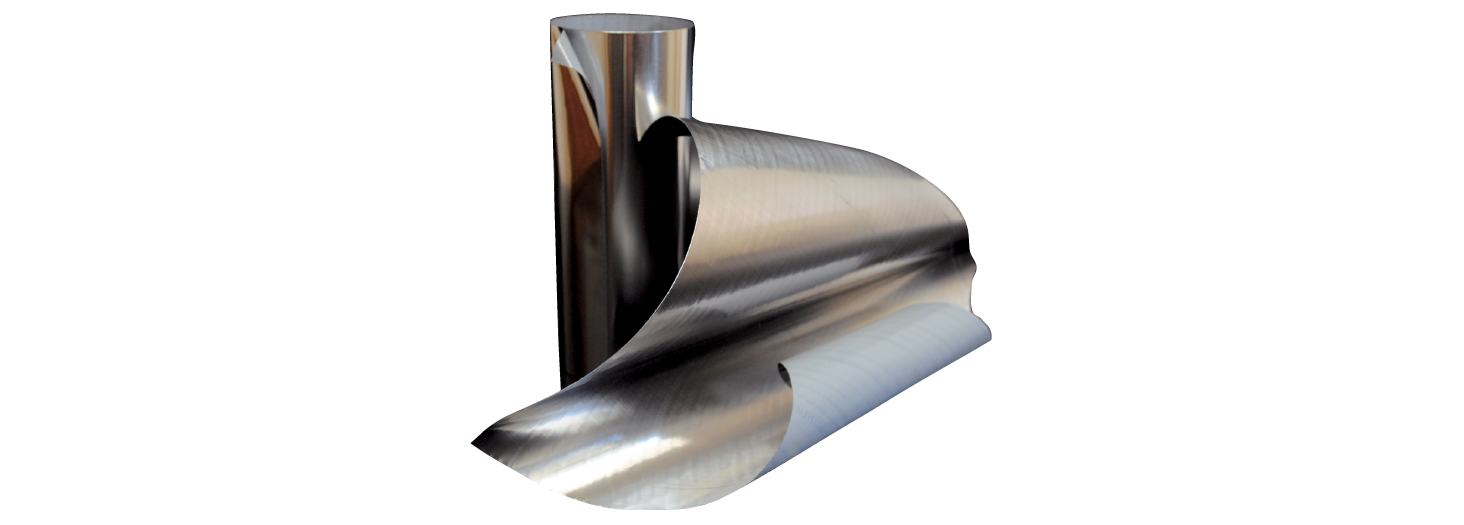

Multi-Flash SS
Multi-Flash SS has been designed with a flexible 2 mil sheet of Type 304 stainless steel laminated on one side to a polymer fabric. Multi-Flash™ SS offers best-in-class puncture and tear resistance.
- Life of the wall warranty
- Available in type 304 (standard) & type 316 for more corrosive/coastal areas
- Best in class puncture & tear resistance
- Puncture: ASTM E154; 2,500+ psi
- Tensile: ASTM D412; 100,000 - Fire resistant: ASTM E84 Class A material
- Mold resistant: passes ASTM D3273
- Heat resistant: Will not degrade in high heat applications (like SPF applications)
- Stainless steel face is an excellent surface for air barriers & sealants to adhere to
- Exceeds all performance specifications for York's copper fabric flashing
- Unlimited UV exposure: to prevent damage, product must be concealed within 180 days
- Flexible & easy to cut & form by hand
- Made of 60% recycled material & recyclable
- 60' rolls for less lap joints
- HPD# available upon request
- Non-staining: can be used with limestone
- Through-wall flashing
- Transition membrane (air barriers, roofing, waterproofing)

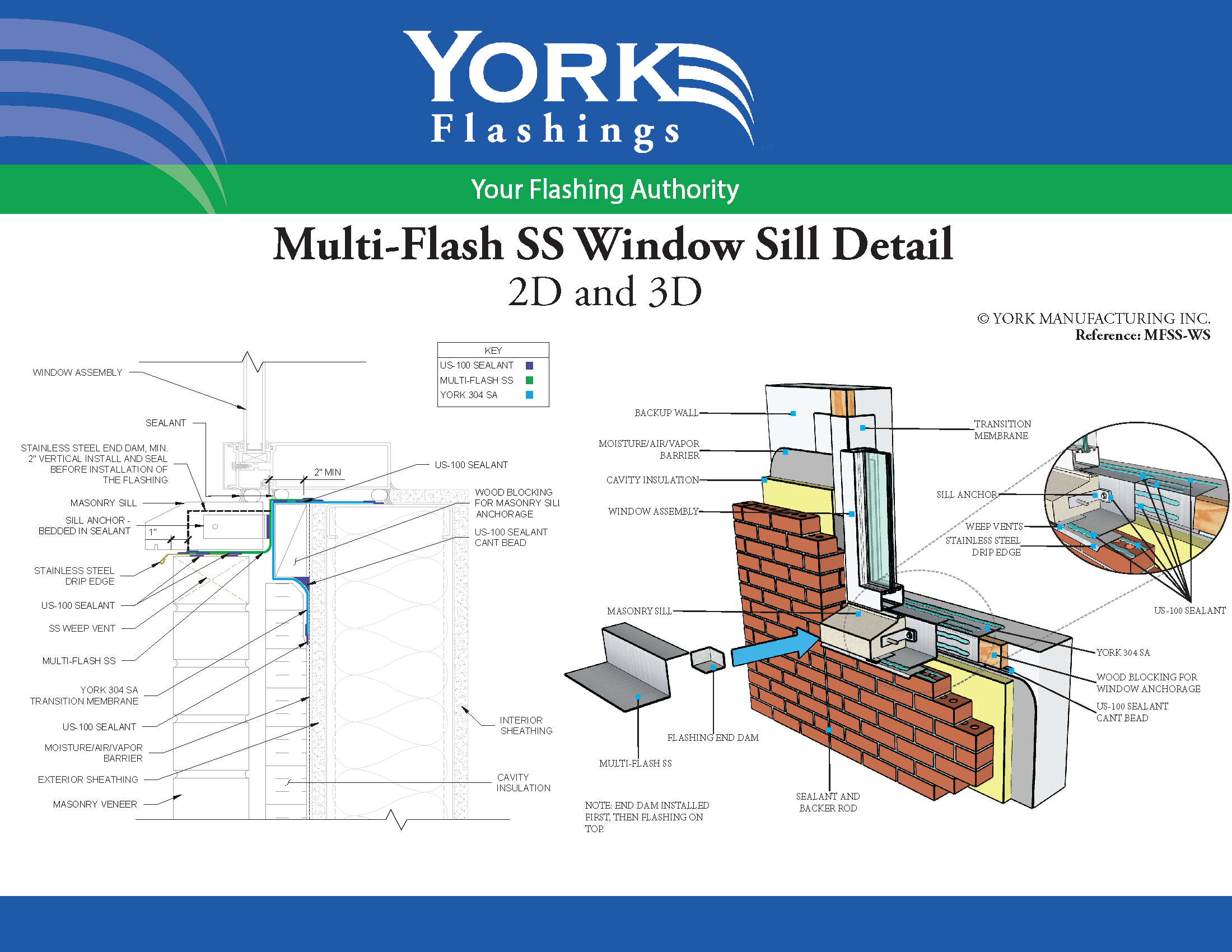

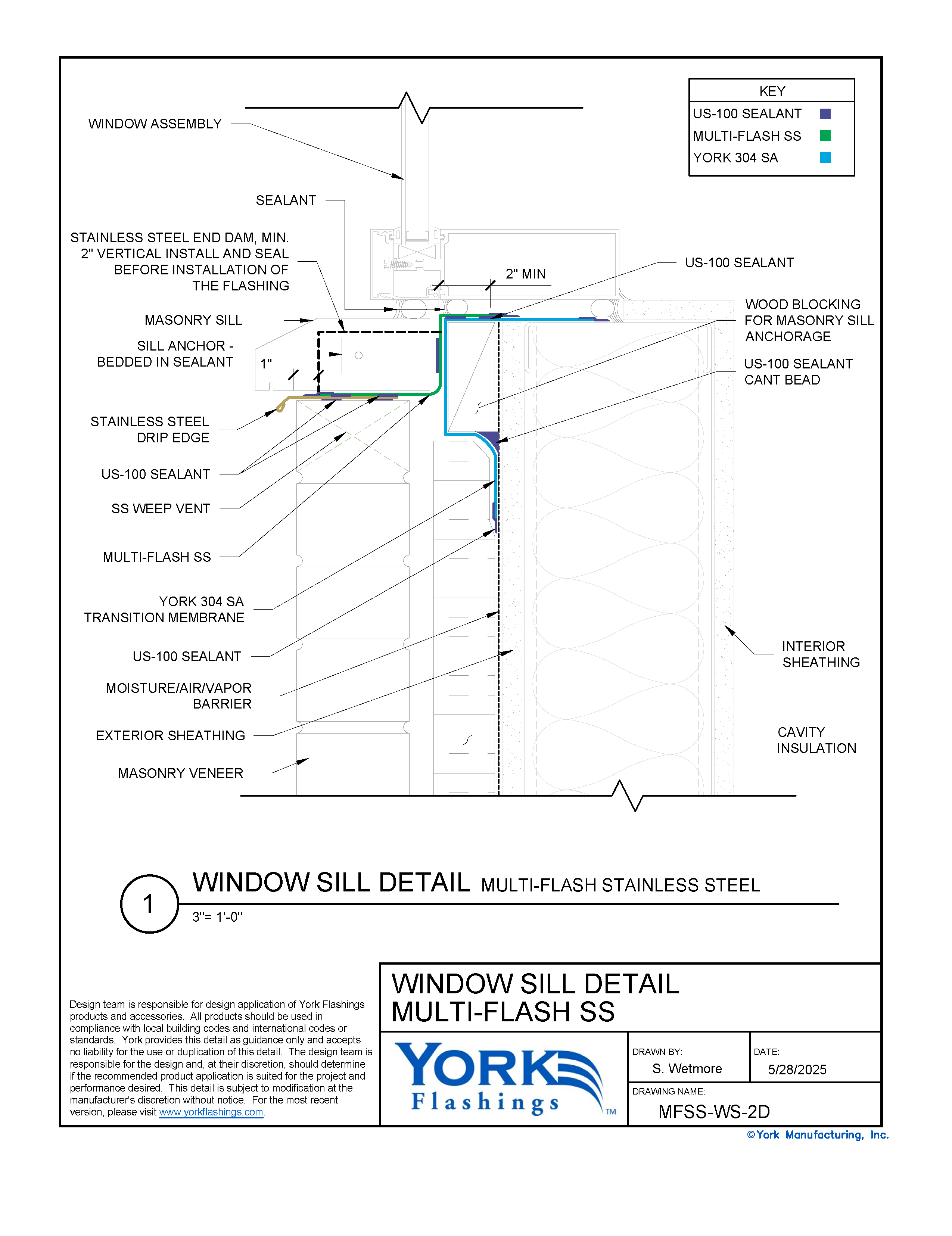

- Window & door sill pan flashing
- Jamb closure flashing
- Roof to parapet flashing
- Deck ledger flashing
- Air barriers
- Spray polyurethane Foam
- Insulation boards
- Construction sealants
Tech Data

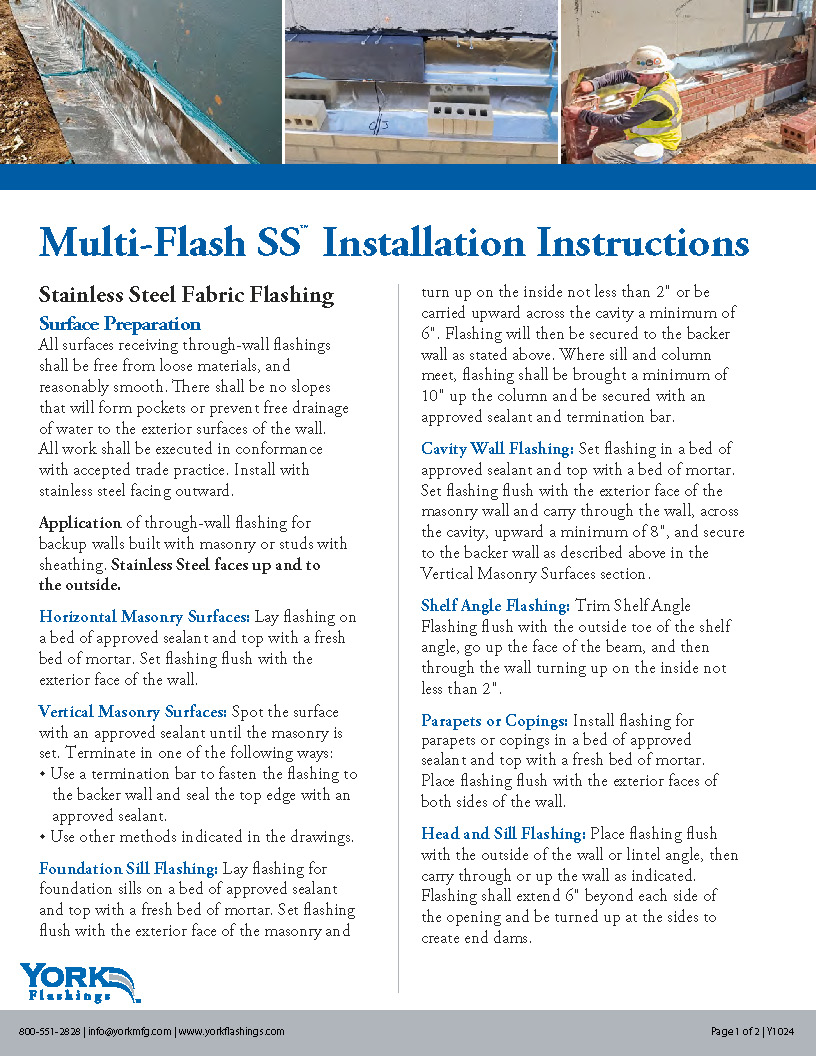

Installation Instructions

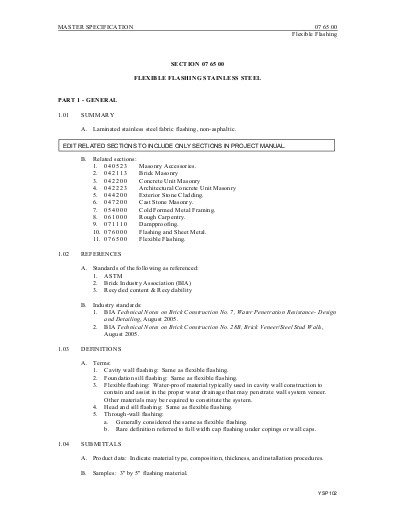

3 Part Spec
Details 2D and 3D

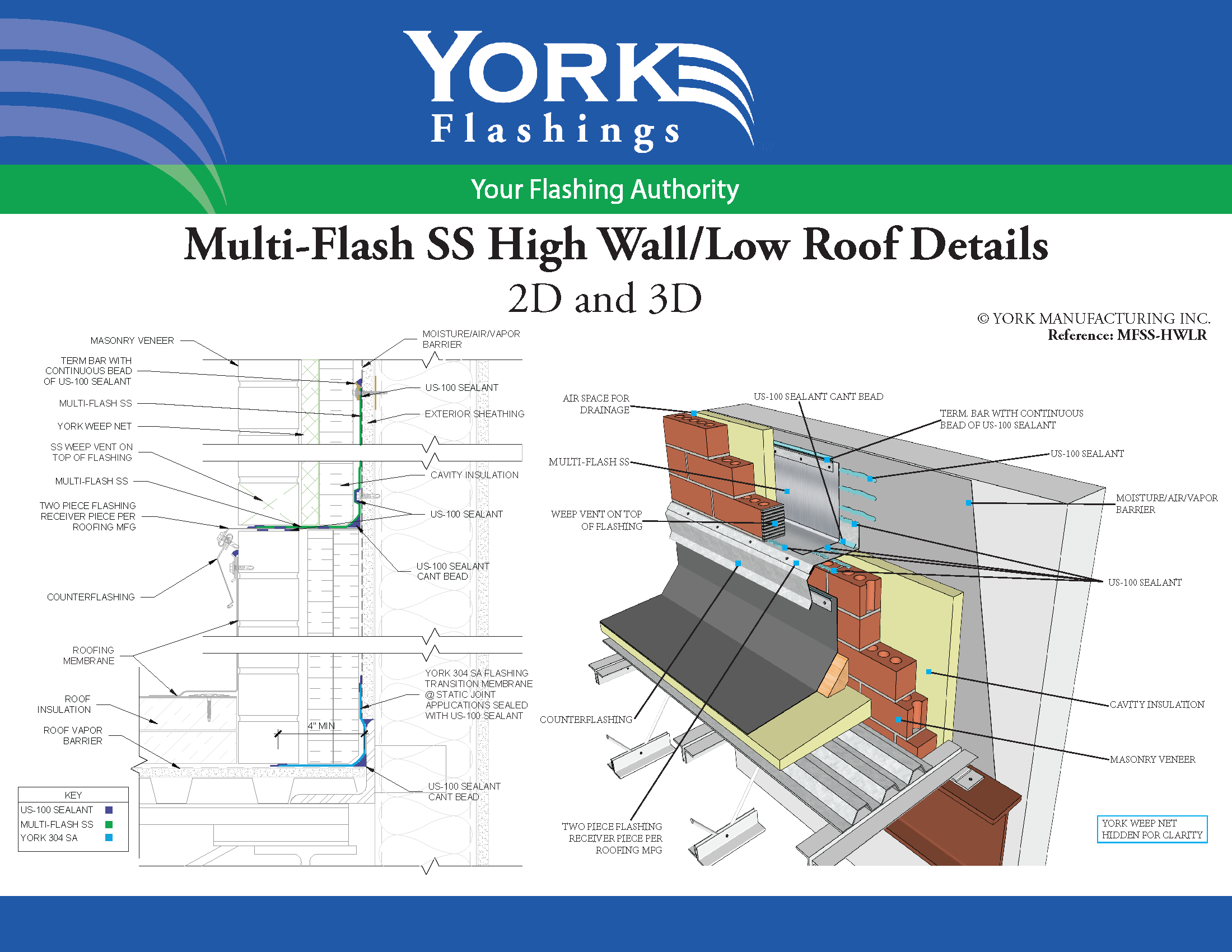

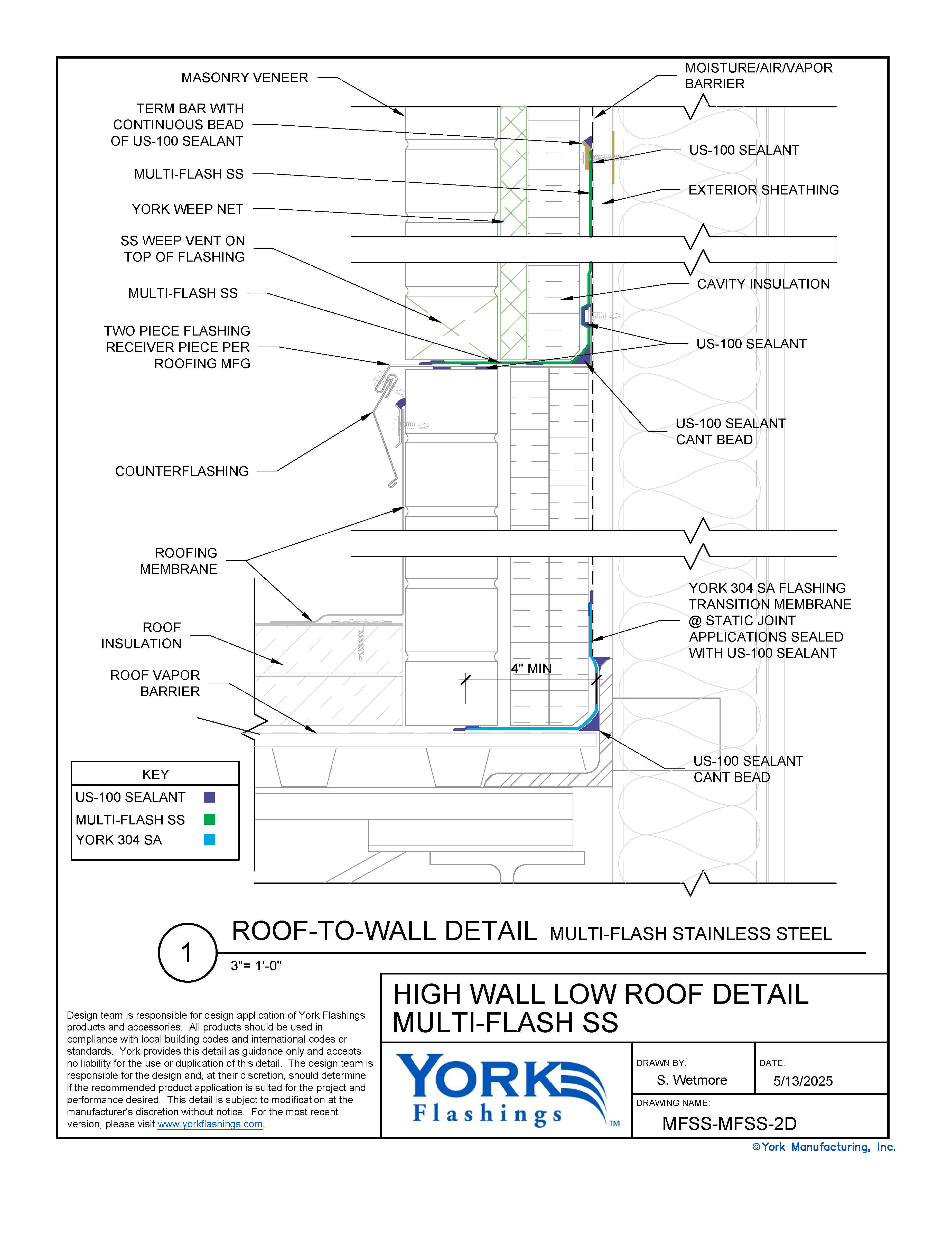

High Wall Low Roof

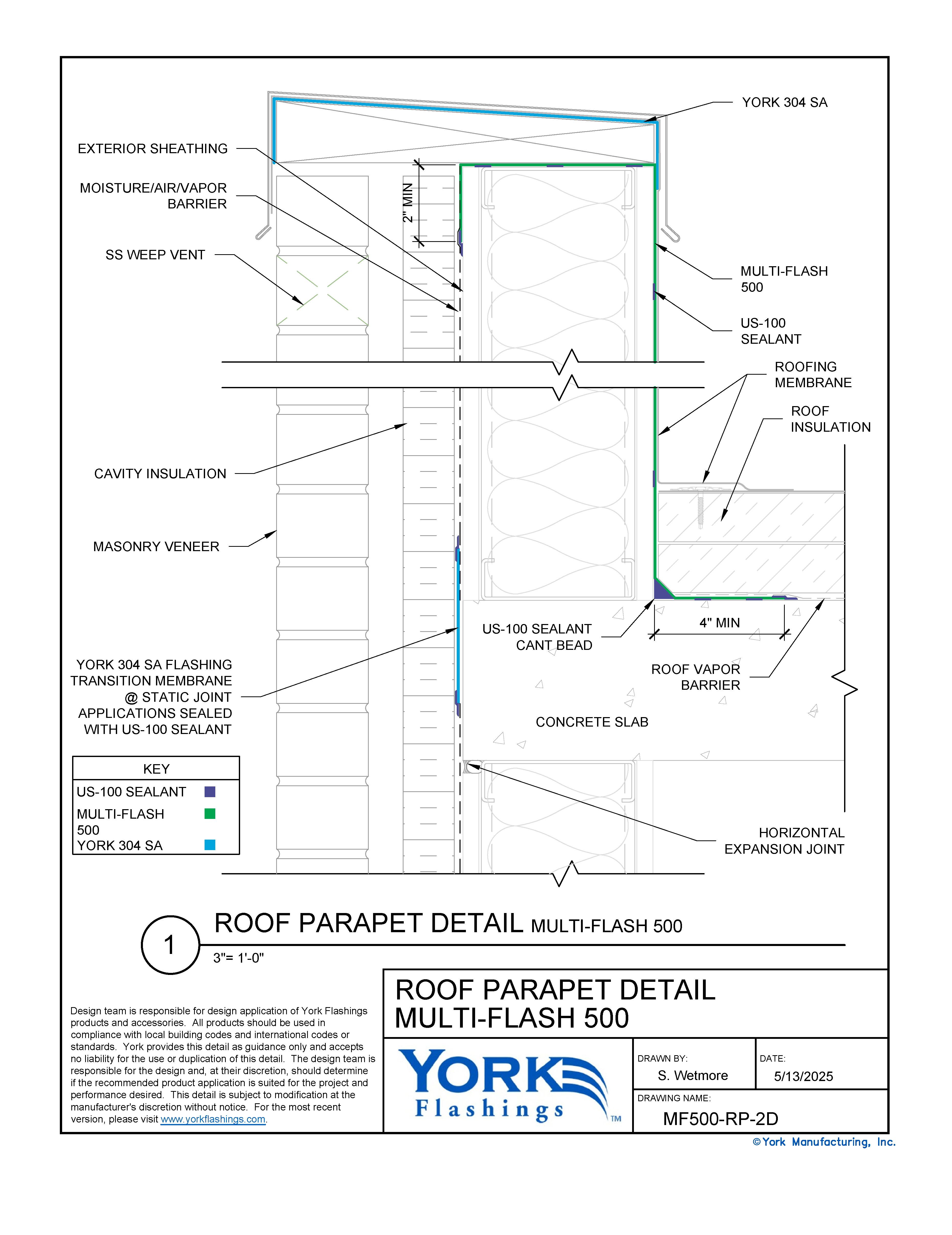

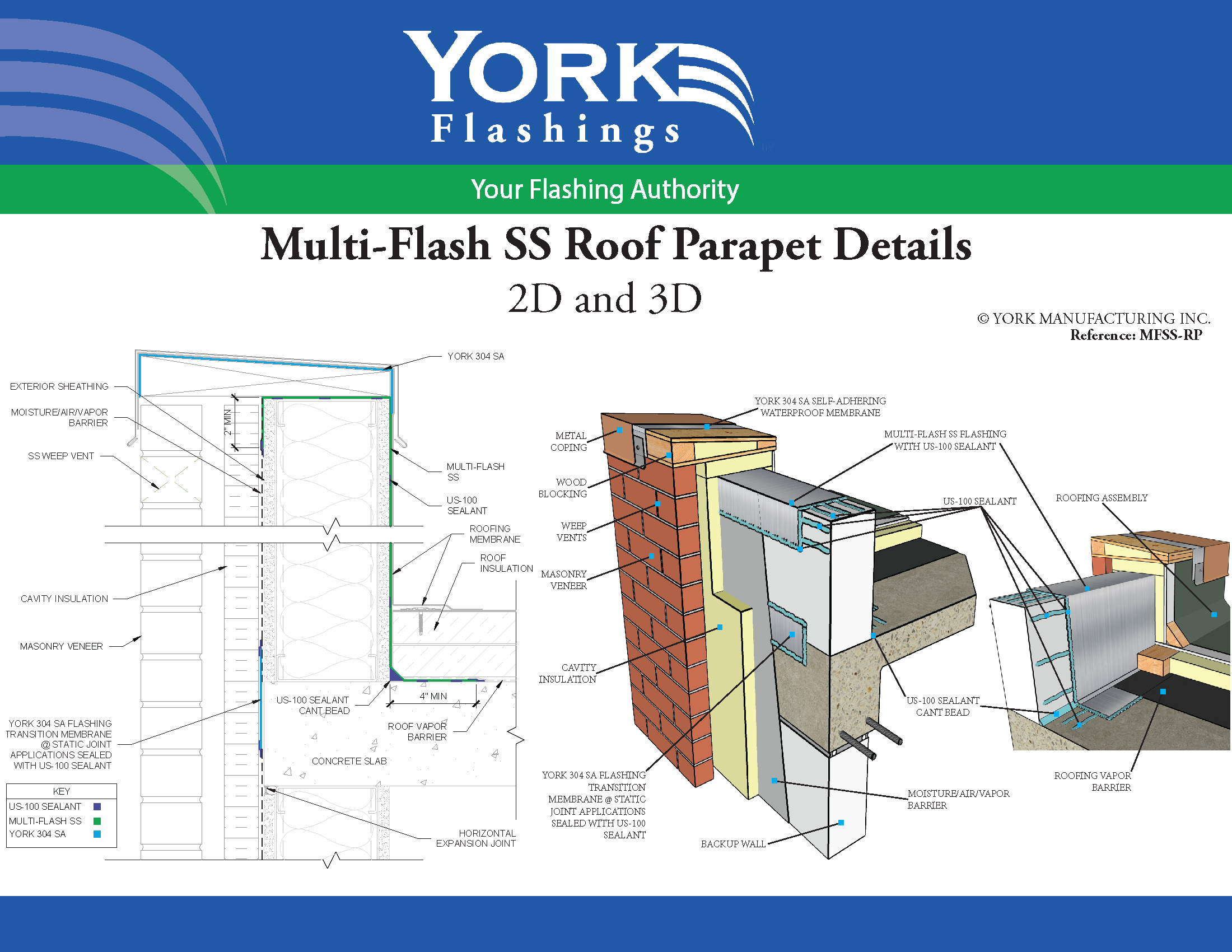

Roof to Wall Parapet

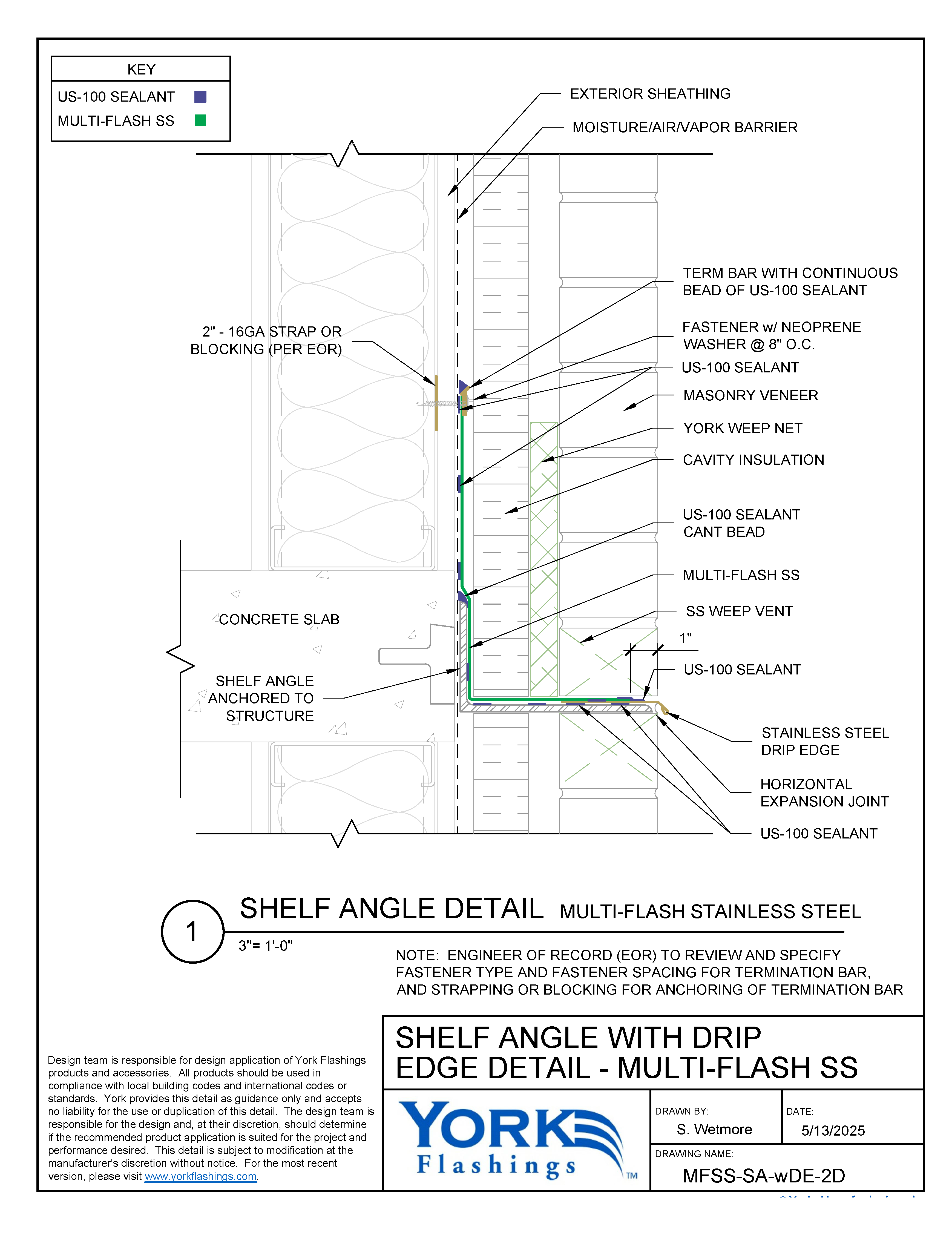

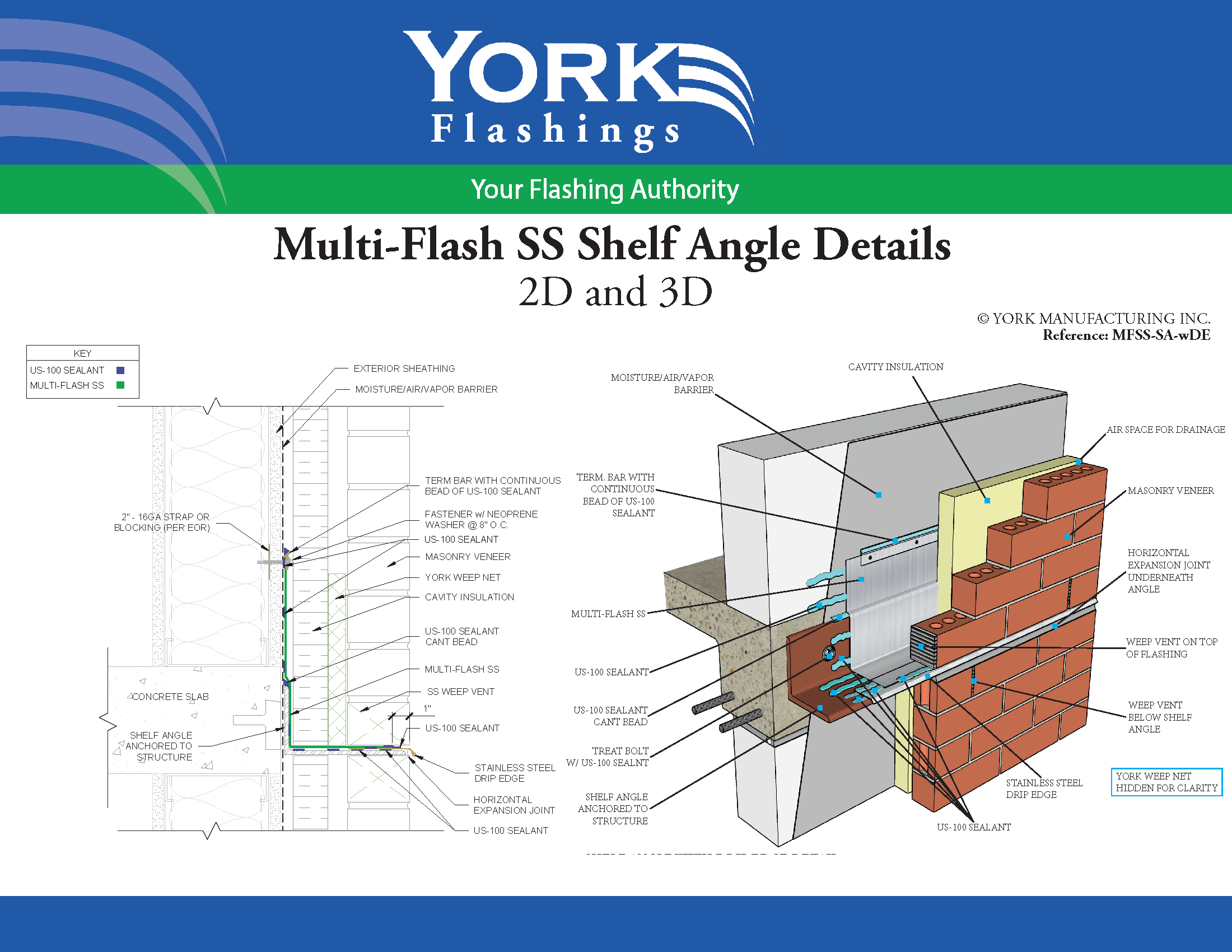

Shelf Angle

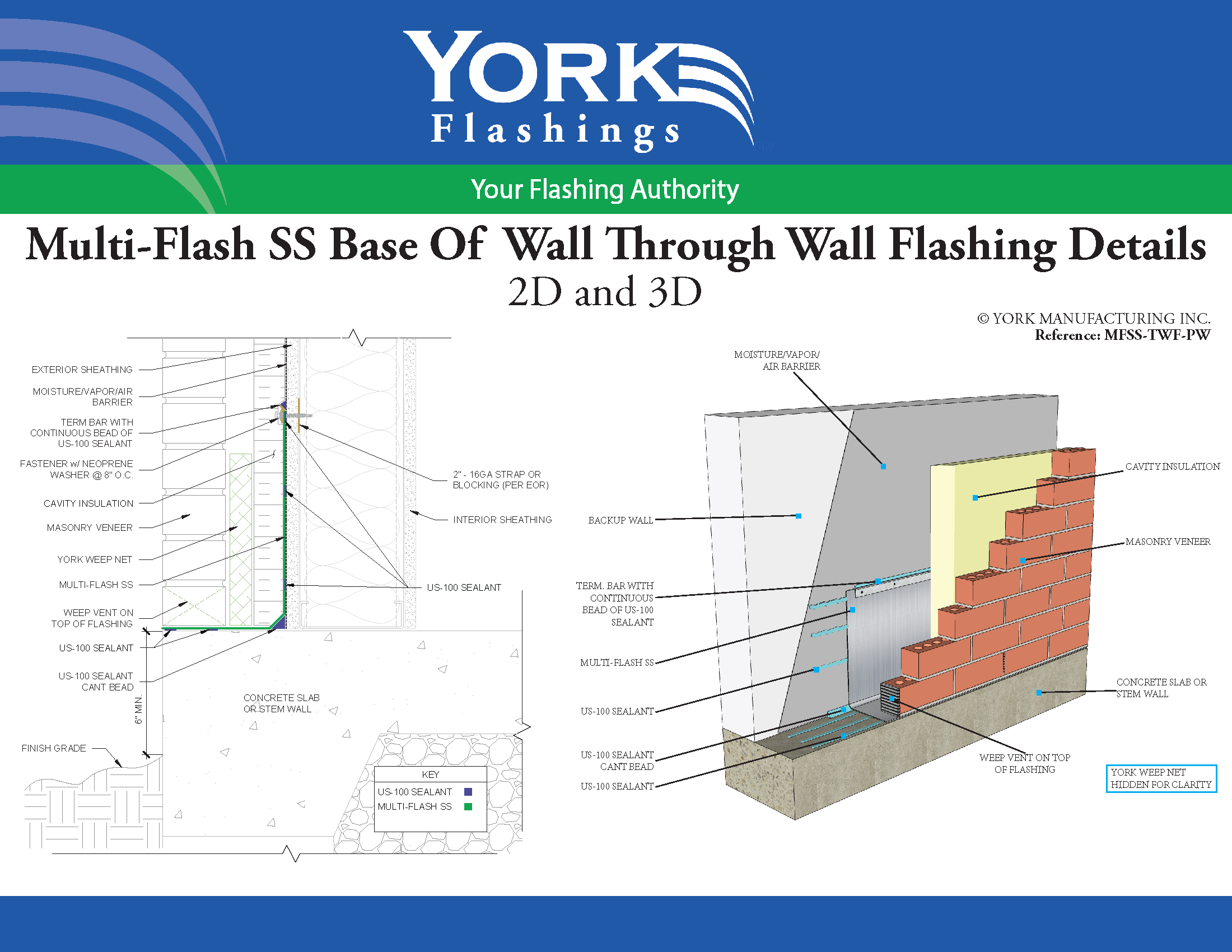

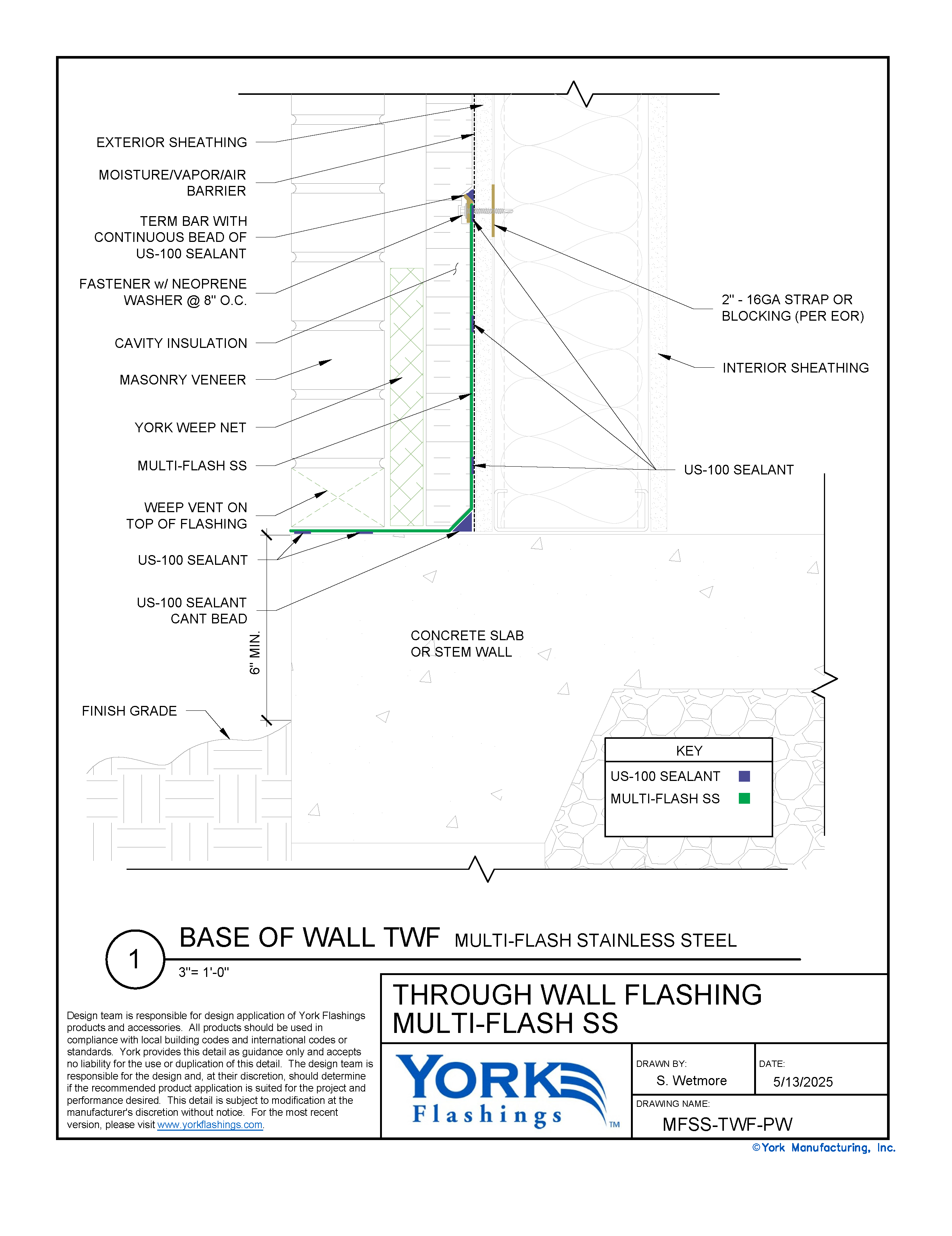

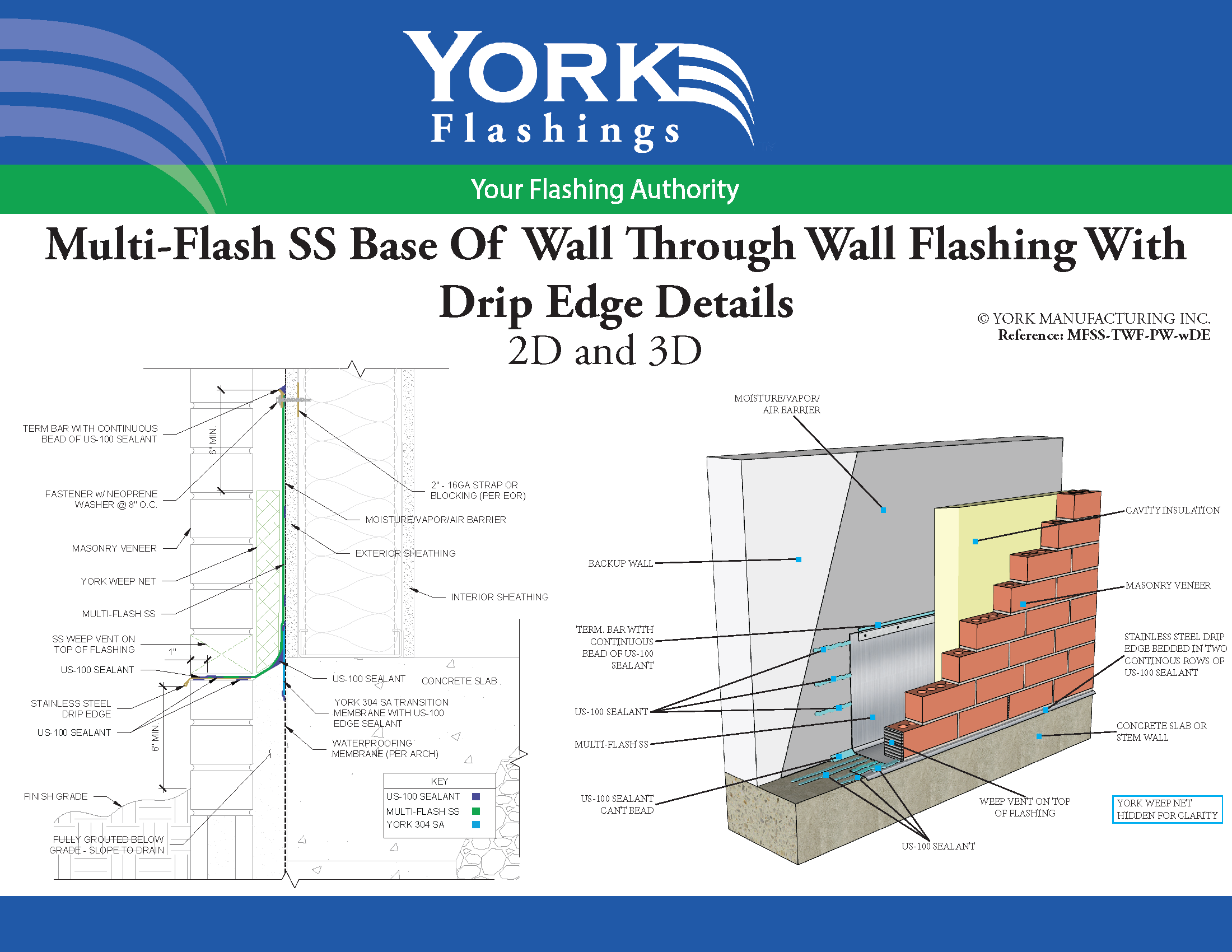

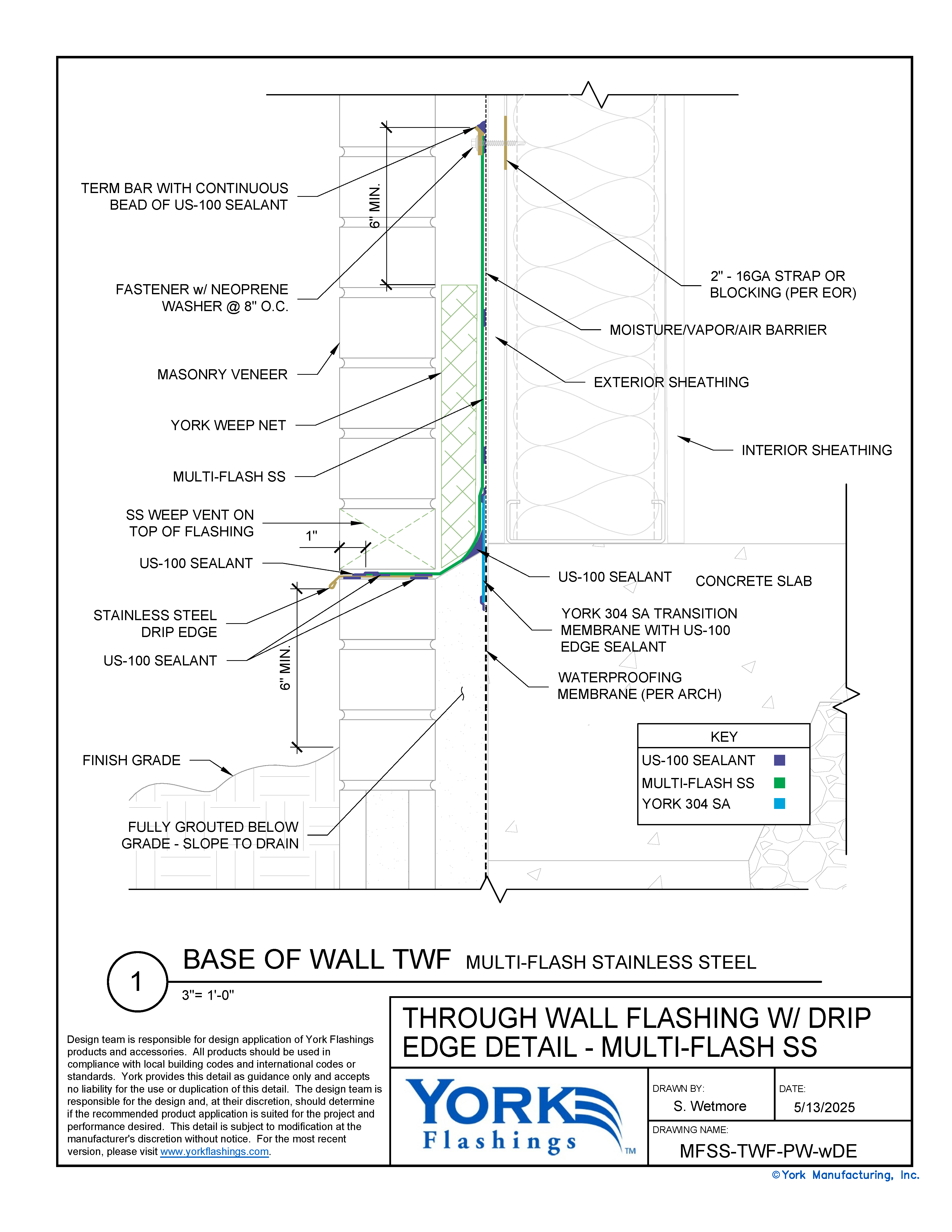

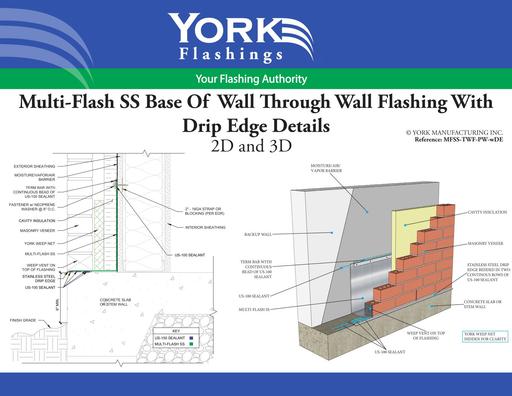

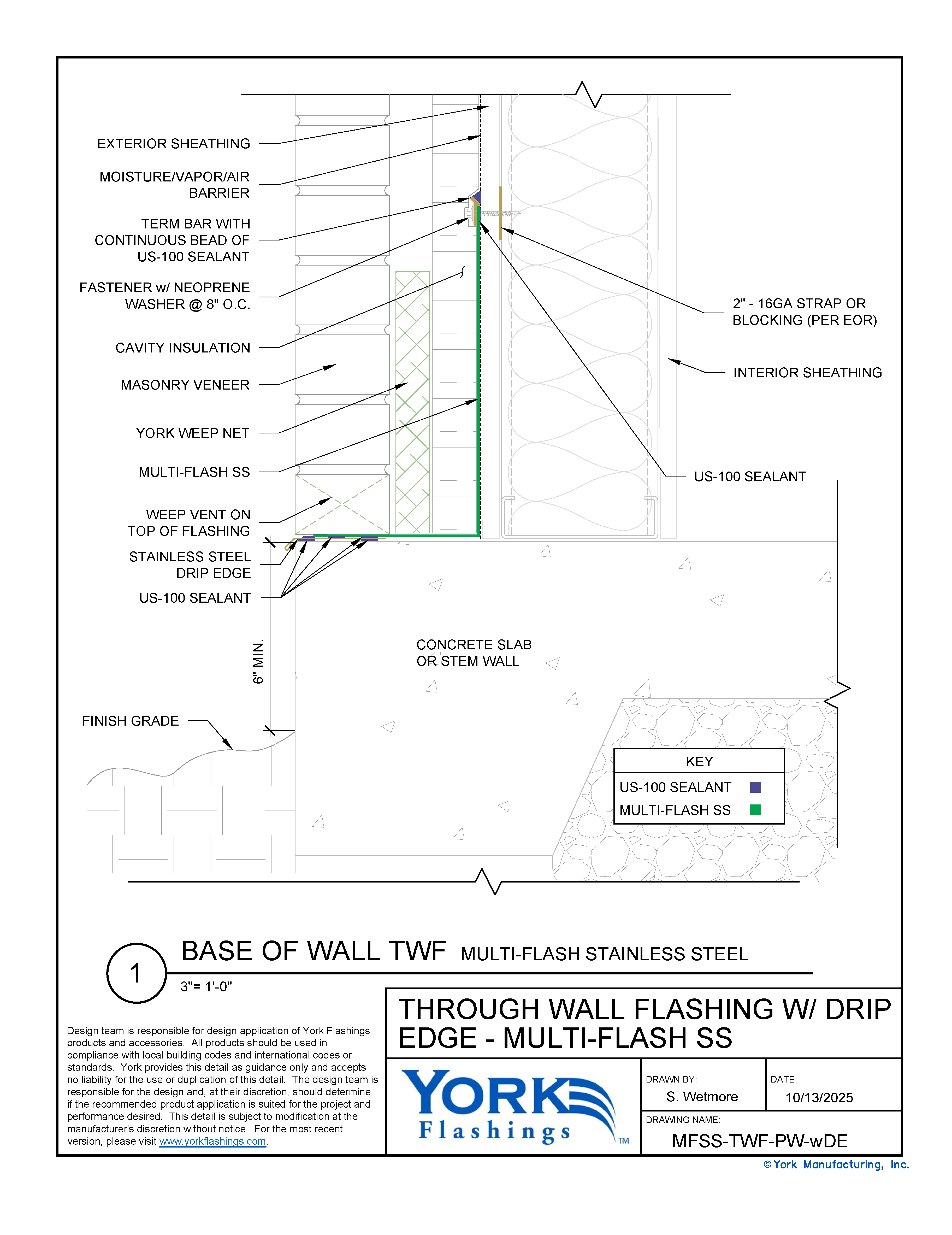

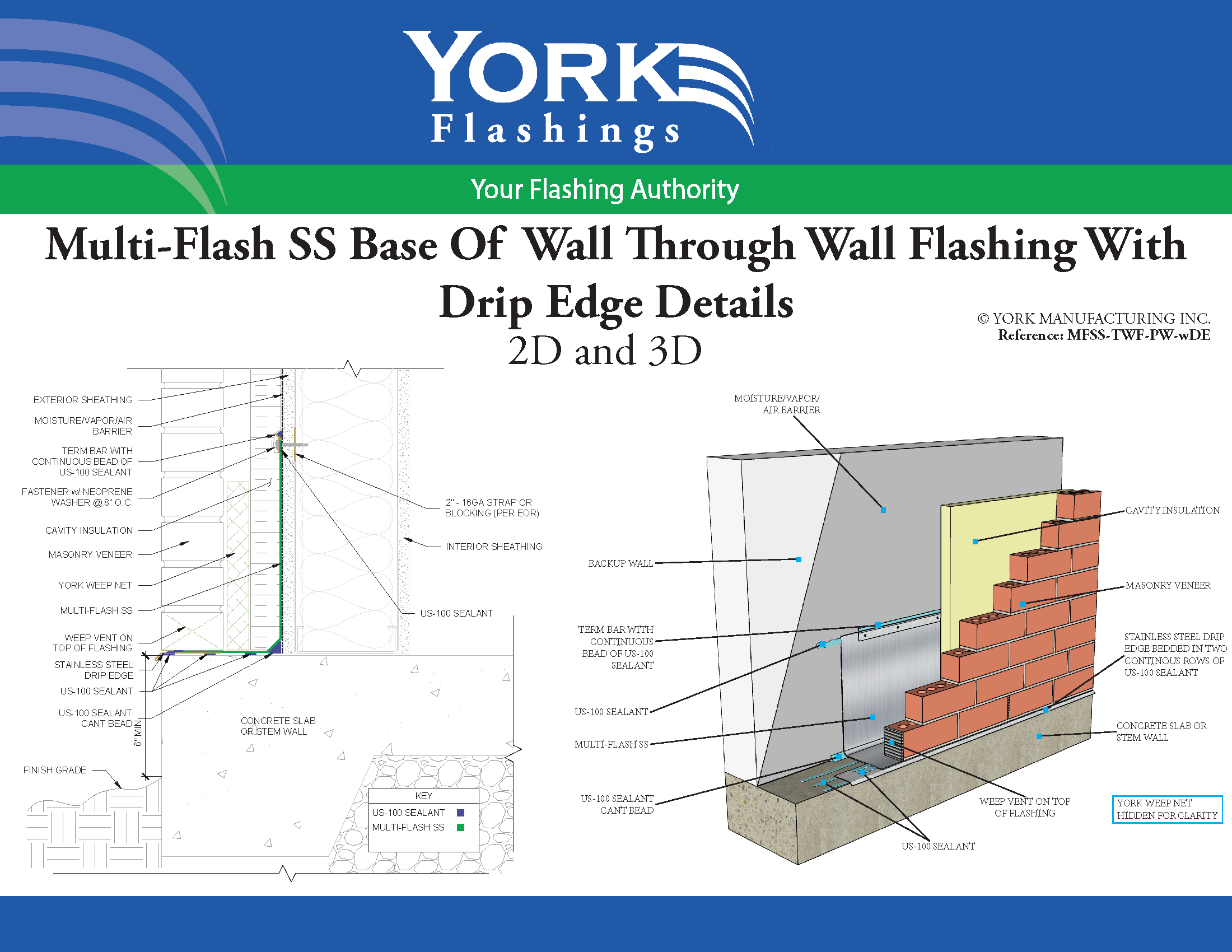

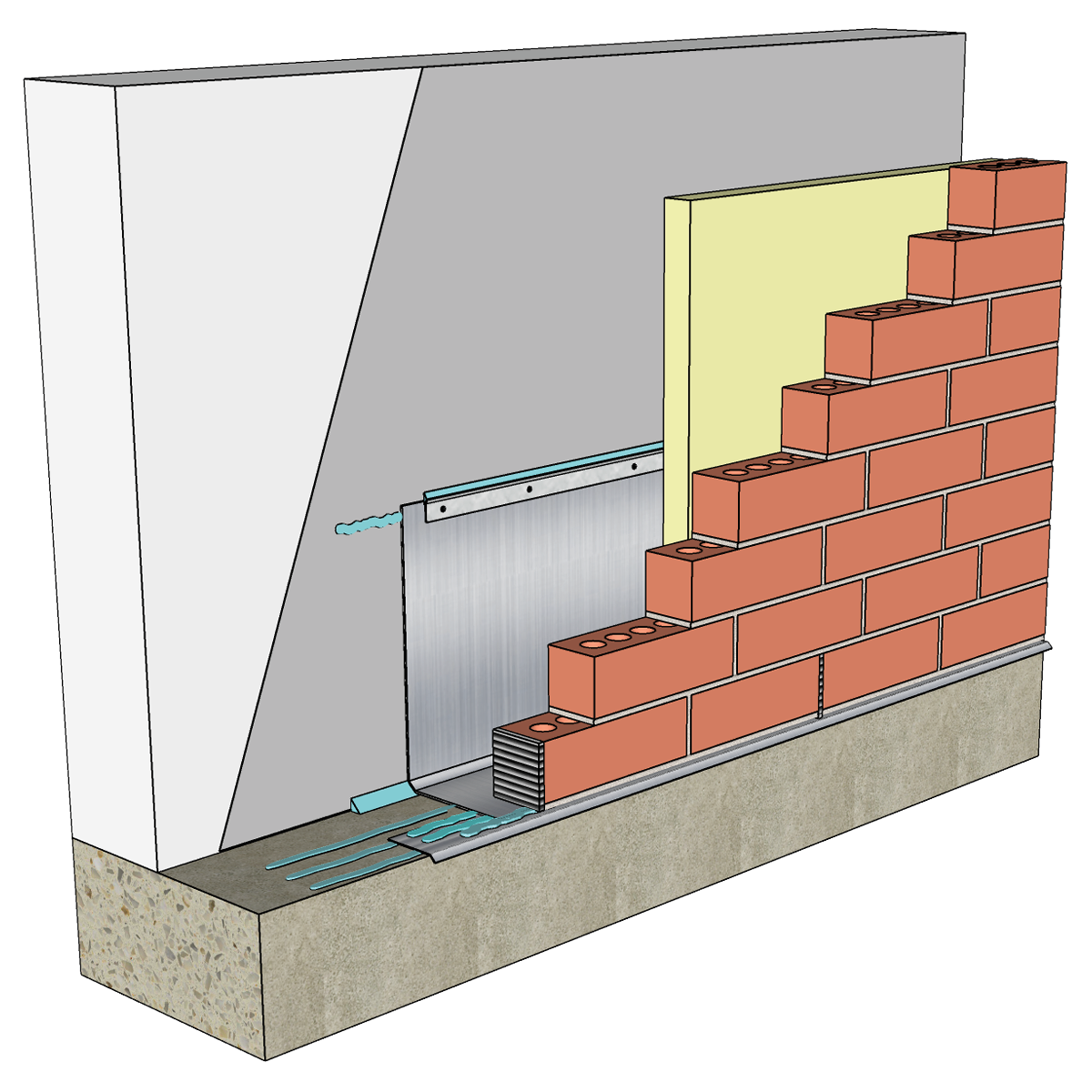

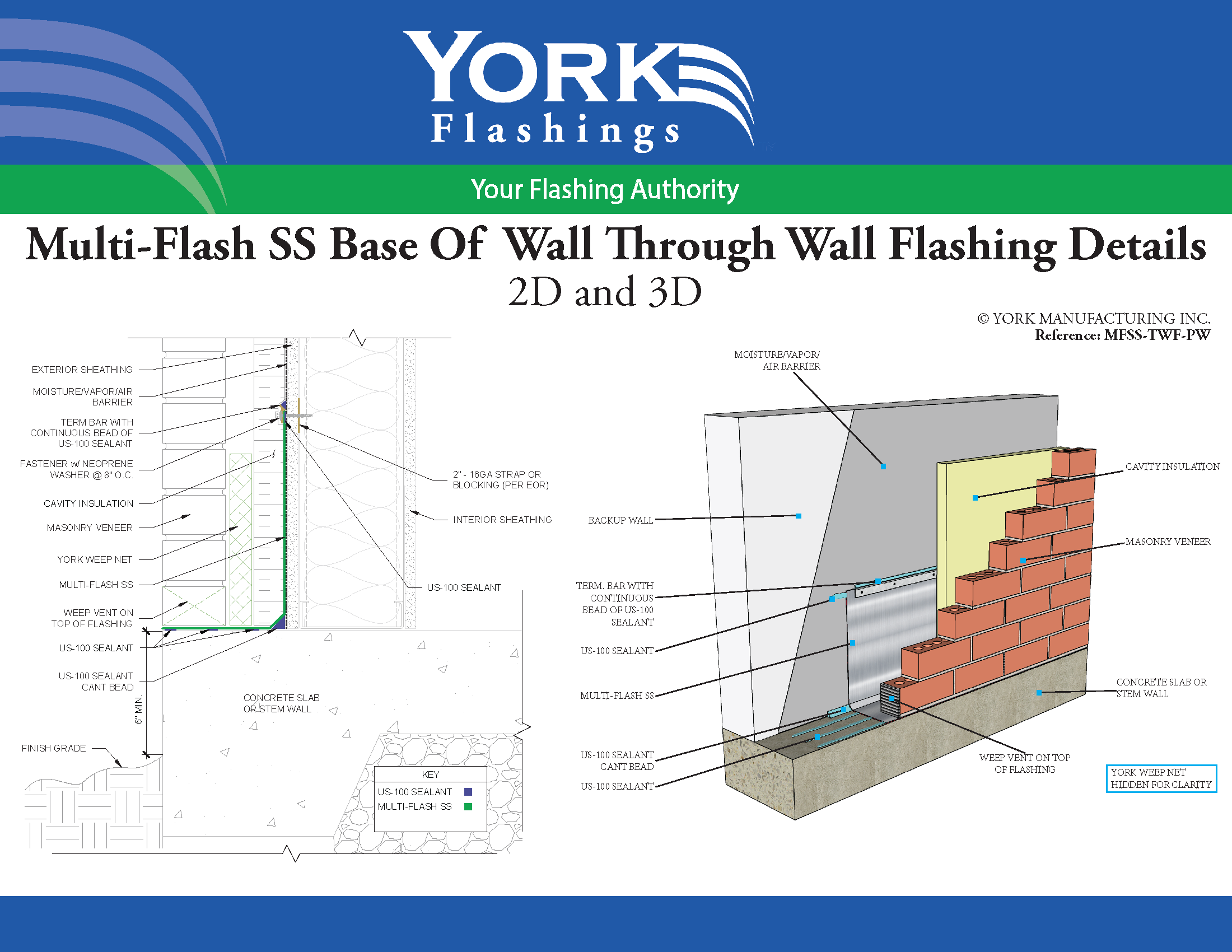

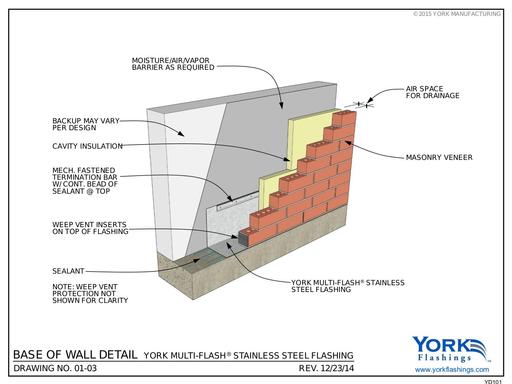

Through Wall Flashing

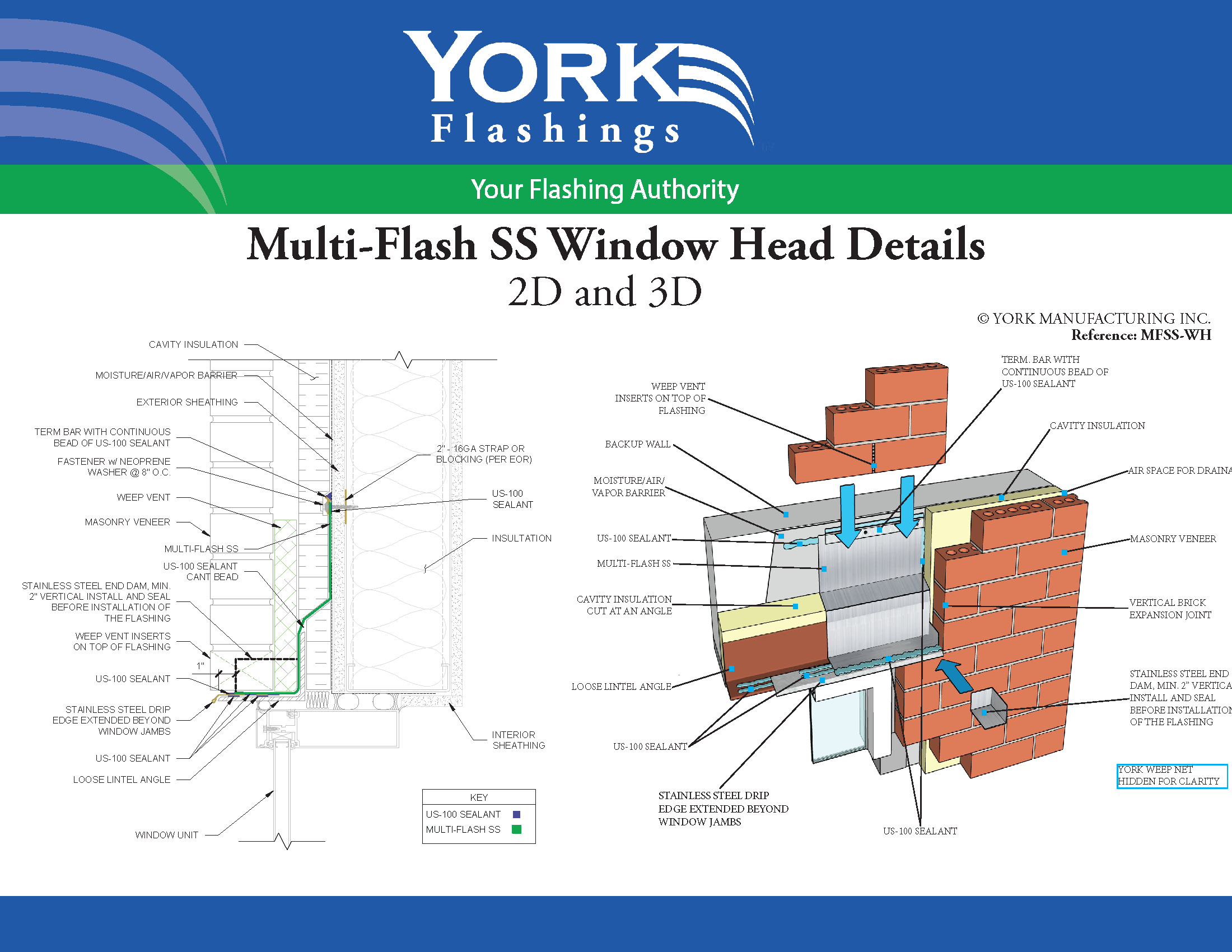

Window Head Reglet

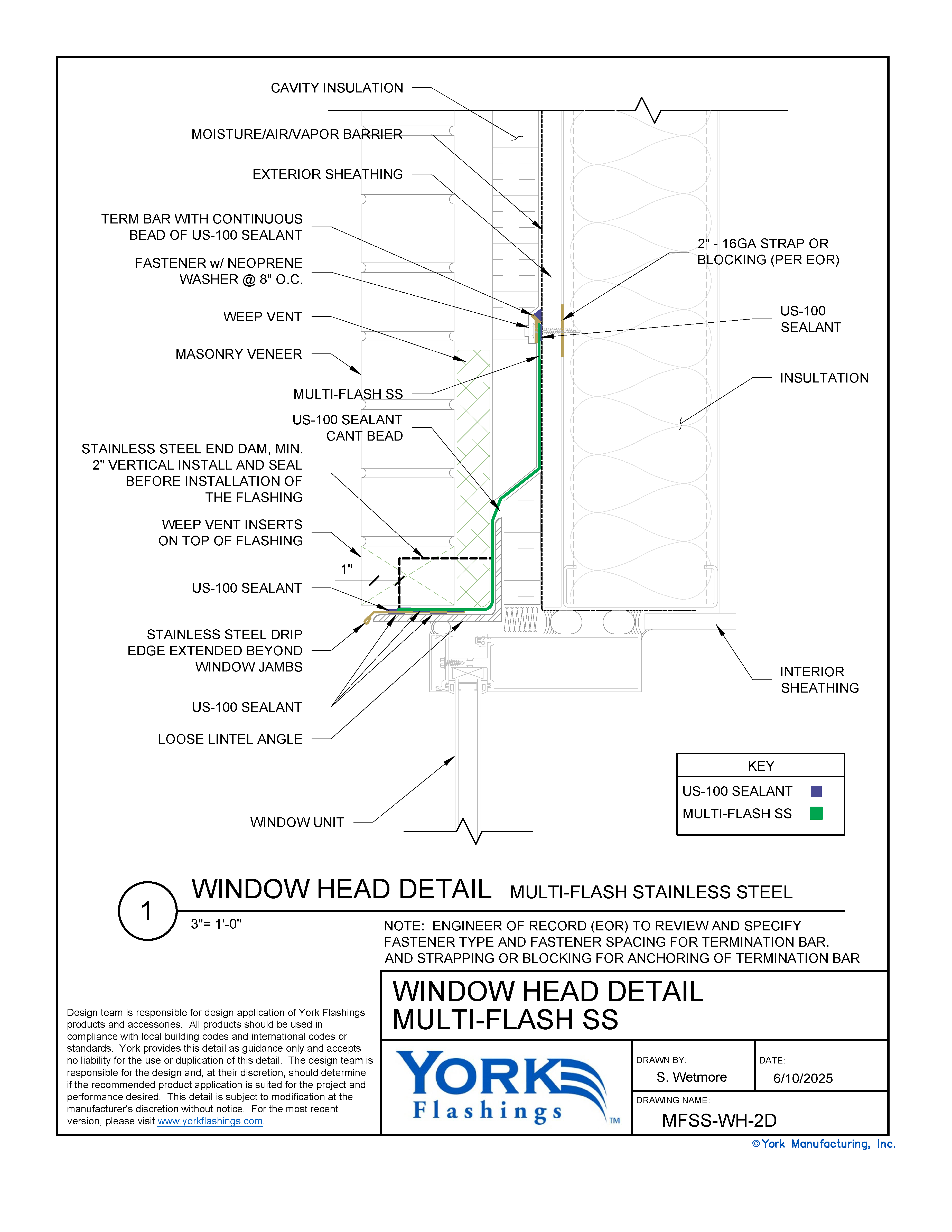

Window Head w Term Bar
BIM
HPD
LEED
SDS
Submittal Form
Submittal
Sub Request
Multi-Flash SS
Offers best-in-class puncture and tear resistance with a flexible 2 mil sheet of Type 304 stainless steel laminated on one side to a polymer fabric. Multi-Flash SS is compatible with air barriers, spray polyurethane foam, insulation boards, and construction sealants.
