Termination Bar (T-96)
York's Termination Bar (T-96) is a rigid thermoplastic extrusion designed to support vertical flashing material at its termination point.
- 100% Recycled
- Non-corrosive
- UV Resistant
- Rot-resistant
- Non-conductive
- Cavity wall flashings can be installed properly since the sealant lip provides a reservoir for sealants at the top of the termination
- No pre-drilled holes, so installers can always hit the studs on a stud backup wall
- Material guide lip to give installers correct termination point
- Flexible - it can be bent around corners without severely lessening its strength like aluminum or having to be cut like stainless steel
- Easy to install
- Approved for use with all flashing materials, drainage boards, waterproofing membranes, and many other items requiring a termination point
Tech Data

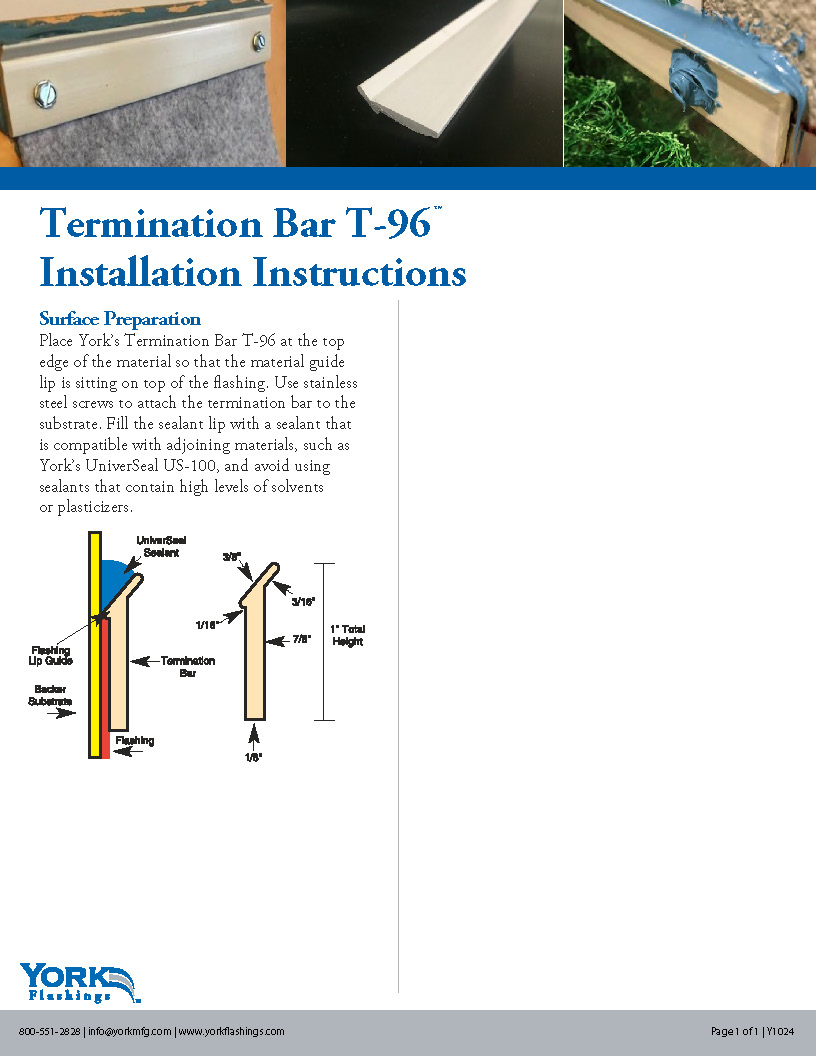

Installation Instructions
3 Part Spec
Details 2D and 3D
BIM
HPD
LEED
SDS
Submittal Form
Submittal
Sub Request
Termination Bar (T-96)
York's Termination Bar (T-96) is a mechanically fastened bar approved for use with all flashing materials, drainage boards, waterproofing membranes, and many other items requiring a termination point. Termination Bar (T-96) is a rigid thermoplastic extrusion designed to support vertical flashing material at its termination point. This product is non-corrosive, UV resistant, rot-resistant, non-conductive, and 100% recycled. The York Termination Bar (T-96) has a positioning lip on the back of the bar to help installers put it in the appropriate position and has a sealant catch lip that helps hold the sealant at the critical termination point.
