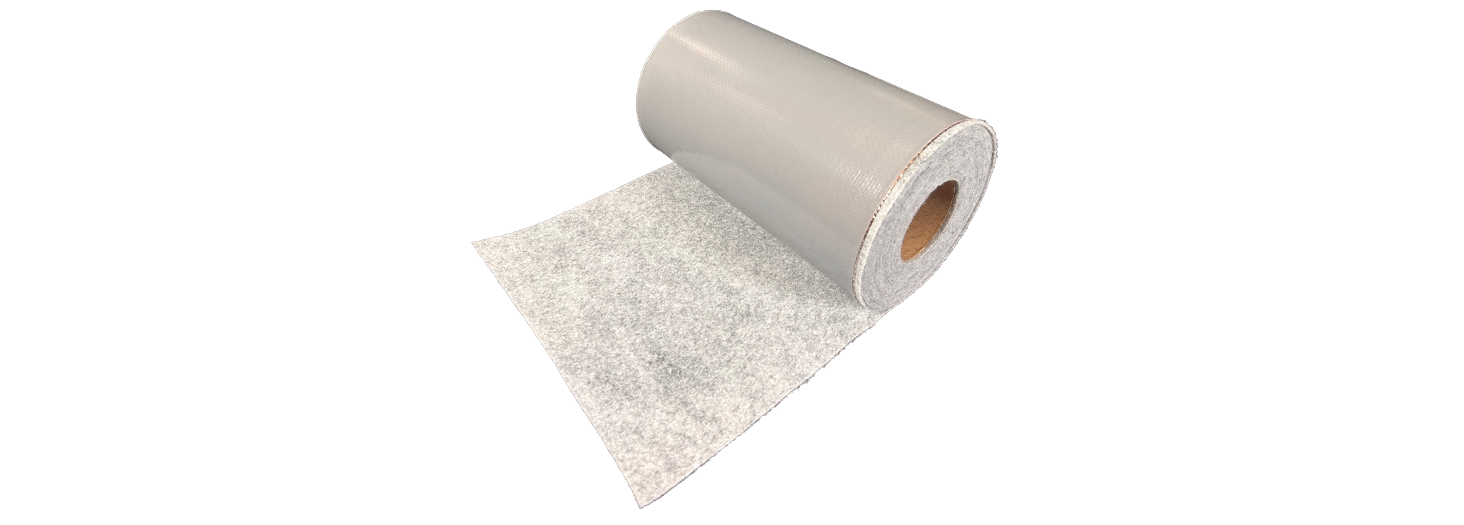

Flash-Vent SS
Designed with a flexible 2 mil sheet of type 304 stainless steel laminated on one side to a polymer fabric and drainage fabric on the opposite side. Flash-Vent™ SS uses include: cavity wall flashing, foundation sill flashing, flexible flashing, head and sill flashing and through-wall flashing. Flash-Vent™ SS has a life of the wall warranty

- Available in type 304 (standard) & type 316 for more corrosive/coastal areas
- Life of the wall warranty
- Does not clog with mortar
- Eliminates need for mortar netting - Best in class puncture & tear resistance
- Puncture: ASTM E154; 2,500+ psi
- Tensile: ASTM D412; 100,000 - Fire resistant: ASTM E84 Class A material
- Mold resistant: passes ASTM D3273
- Made of 60% recycled stainless steel
- HPD# available upon request
- Continuous weep/active drainage

- Flash-Vent SS is an active drainage plane flashing which helps expel the moisture from the wall
- Flash-Vent SS fabric does not clog from dirt, debris, or mortar droppings, keeping a clear path to the weep vents
- Made with USA stainless steel, this product has a life of the wall warranty
- One piece installation eliminates the need for a mortar deflection device which saves labor

- Air barriers
- Spray polyurethane Foam
- Cavity wall insulations
- Construction sealants
Tech Data

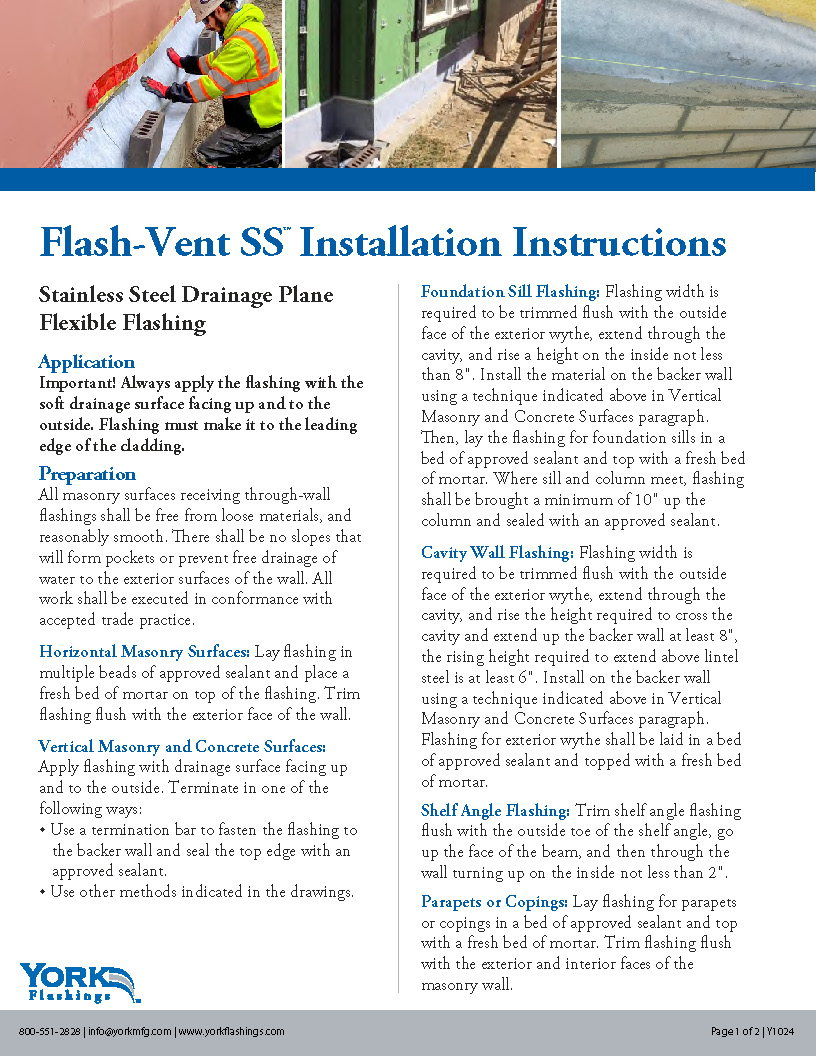

Installation Instructions
3 Part Spec
Details 2D and 3D

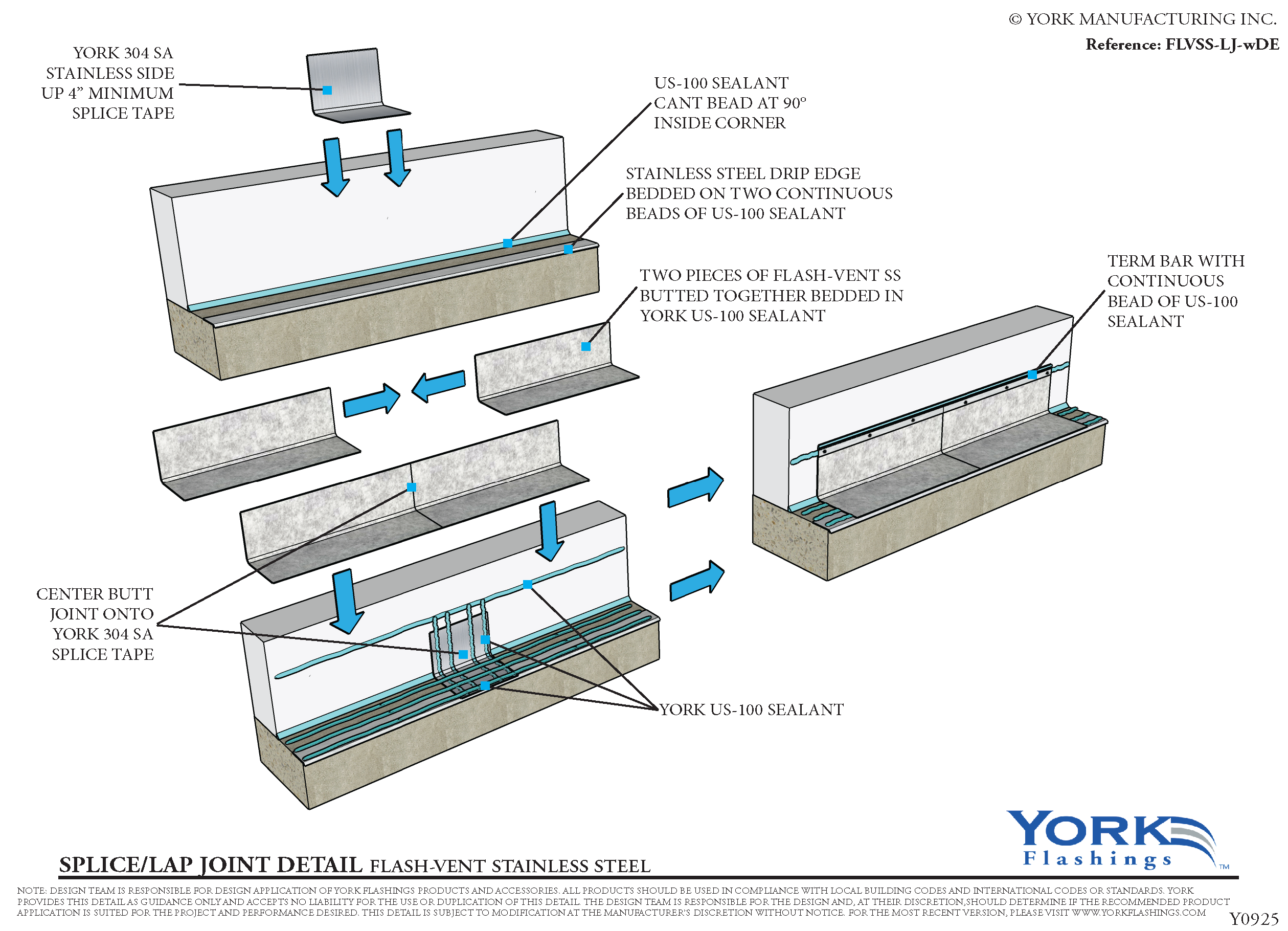

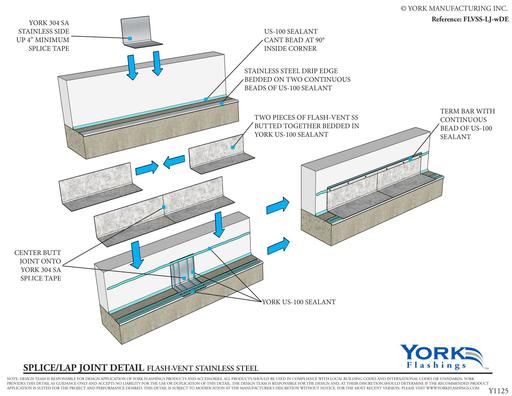

Flash Vent SS Splice

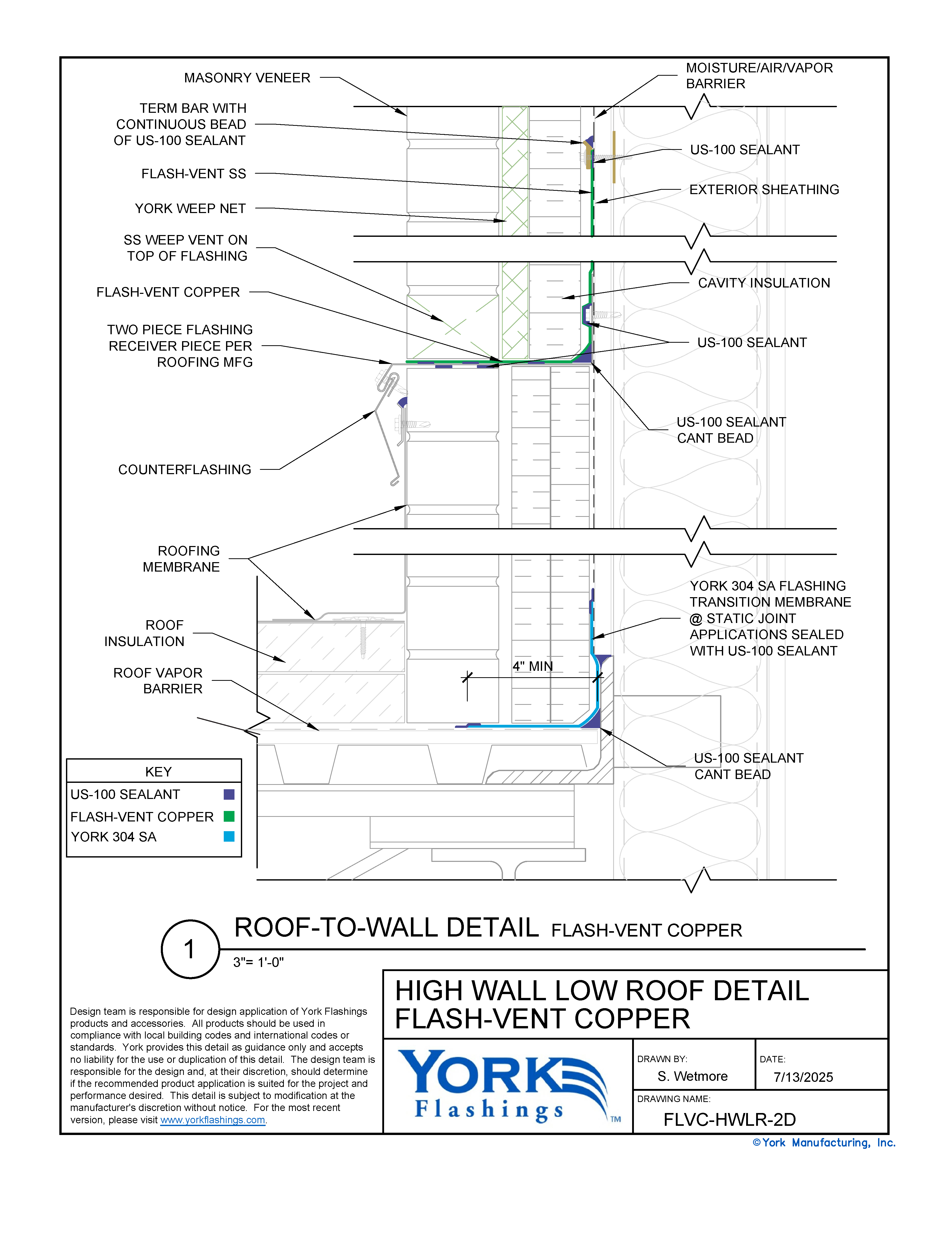

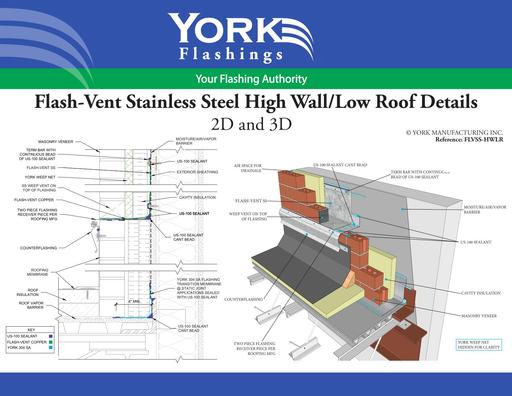

High Wall Low Roof
Roof Parapet
Roof To Wall

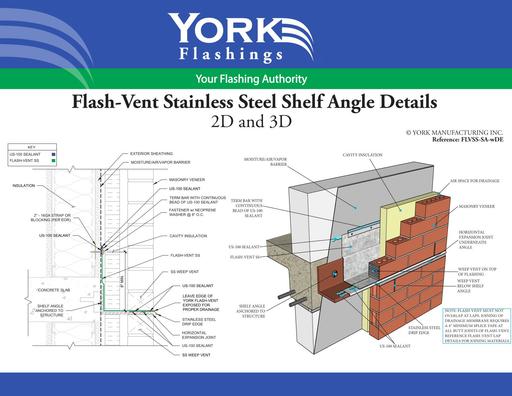

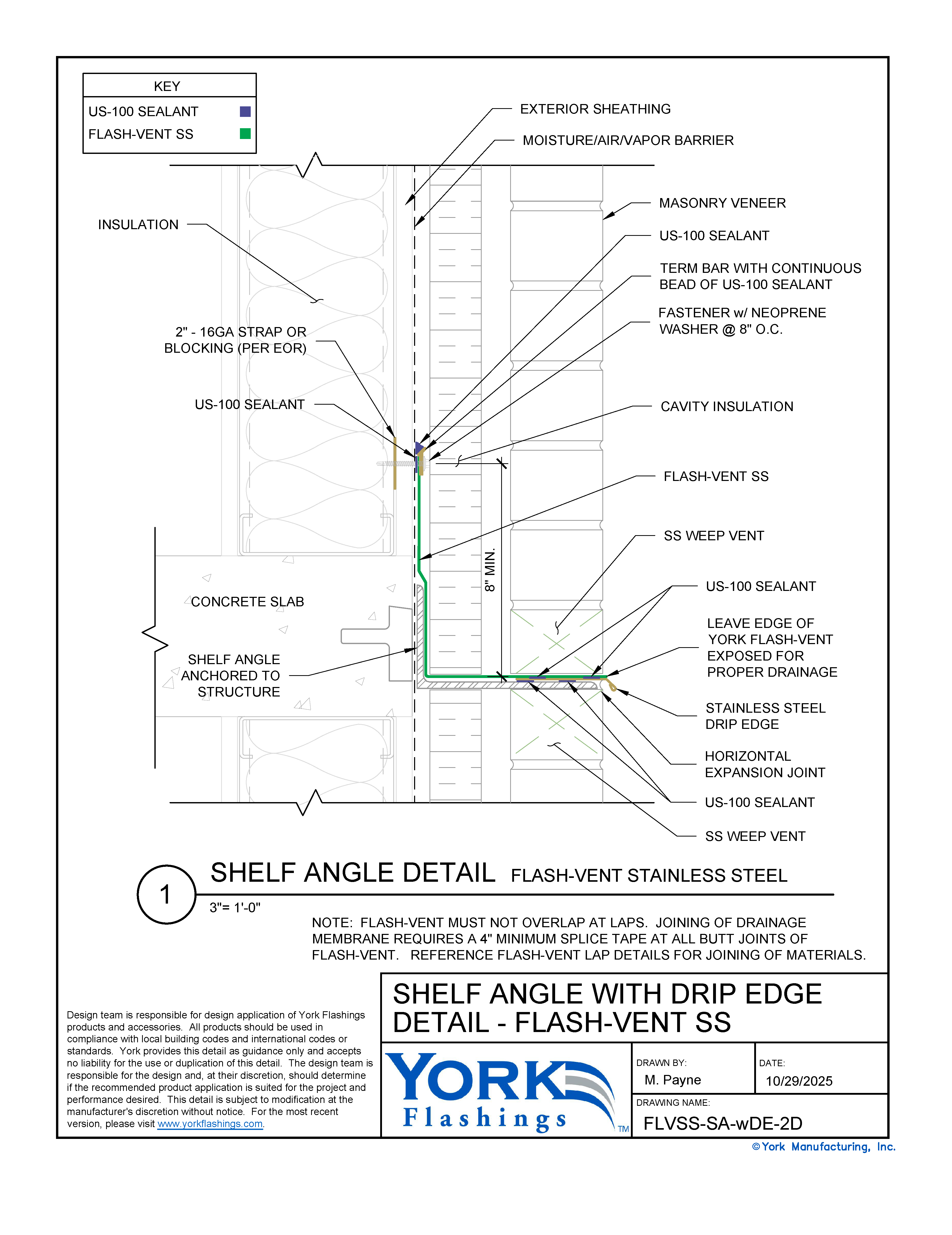

Shelf Angle

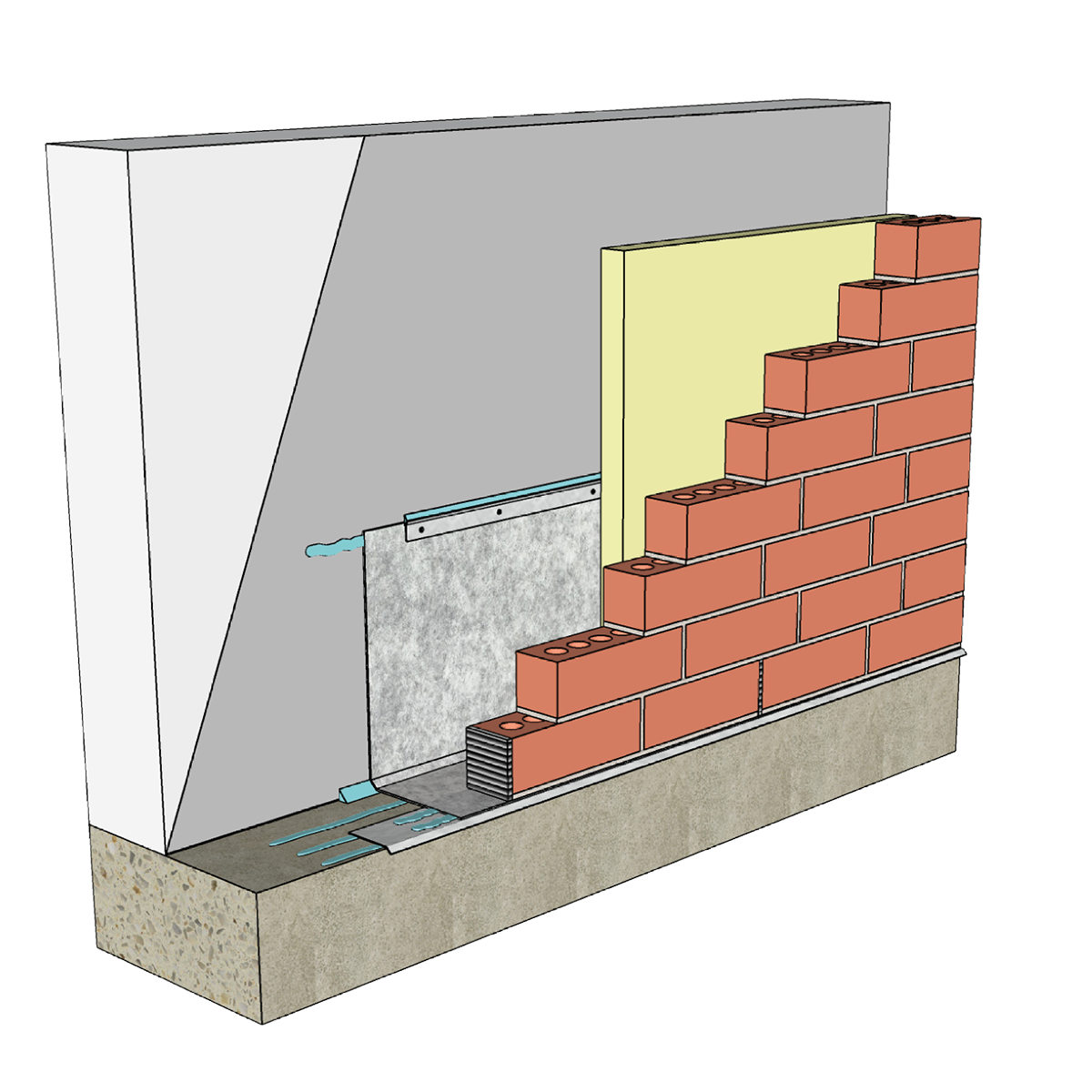

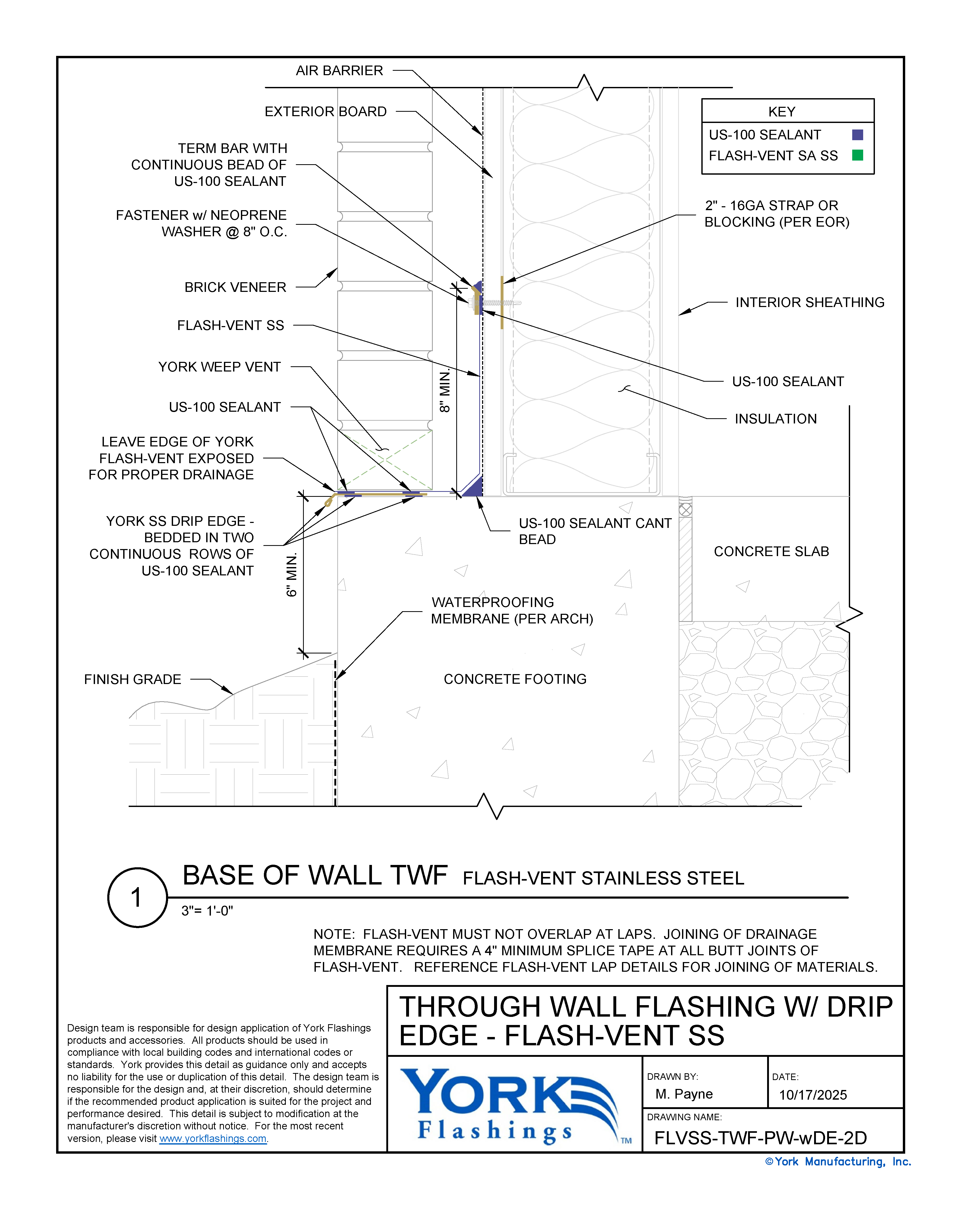

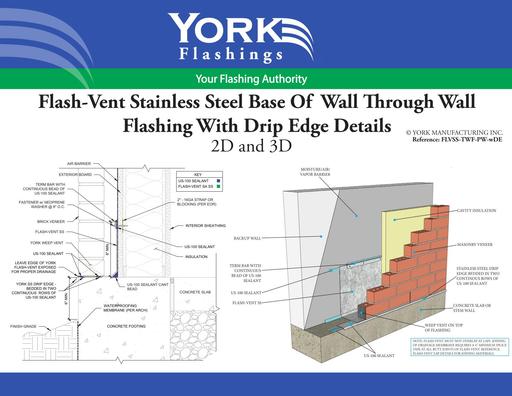

Through Wall Flashing

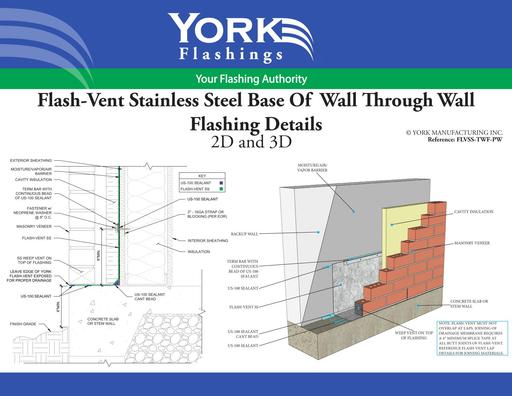

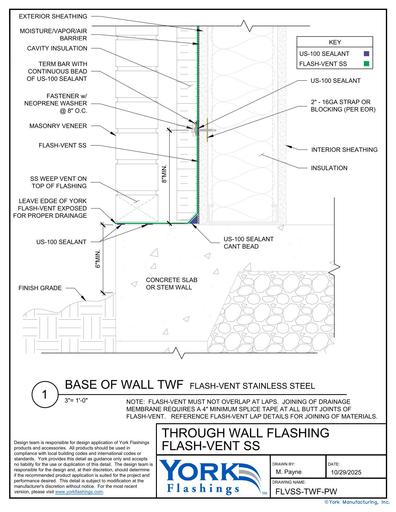

Through Wall Flashing No Drip Edge
Window Head
BIM
HPD
LEED
SDS
Submittal Form
Submittal
Sub Request
Flash-Vent SS
Stainless Steel Flashing - Does not clog, eliminating the need for mortar netting.
