Multi-Flash 500 SA
Designed with a flexible 3oz., 5oz., or 7oz. sheet of copper laminated on one side with a polymer fabric, butyl adhesive, and a siliconized release liner.

- No staining
- 20-year warranty
- Best in class puncture & tear resistance
- Made of 90% recycled material
- Copper meets ASTM B370-12
- Fire resistant: ASTM E84 Class B material
- Mold resistant: passes ASTM D3273
- Meets all performance specifications for asphaltic copper fabric flashing
- 90 day UV exposure
- Flexible and easy to cut and form by hand
- Butyl adhesive/watertight bond
- HPD# available upon request

- Through-wall flashing
- Transition membrane (air barriers, roofing, waterproofing)
- Roof to parapet flashing
- Jamb closure flashing

- Air barriers
- Spray polyurethane Foam
- Insulations boards
- Construction sealants
Tech Data

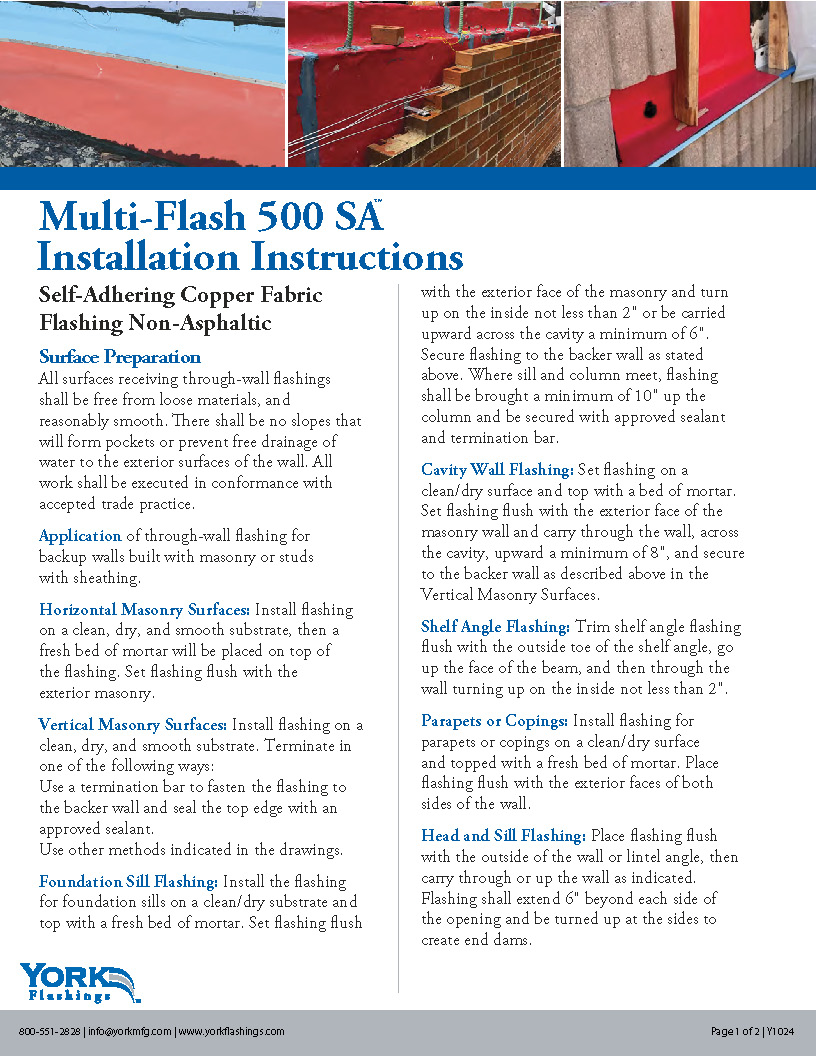

Installation Instructions
3 Part Spec
Details 2D and 3D

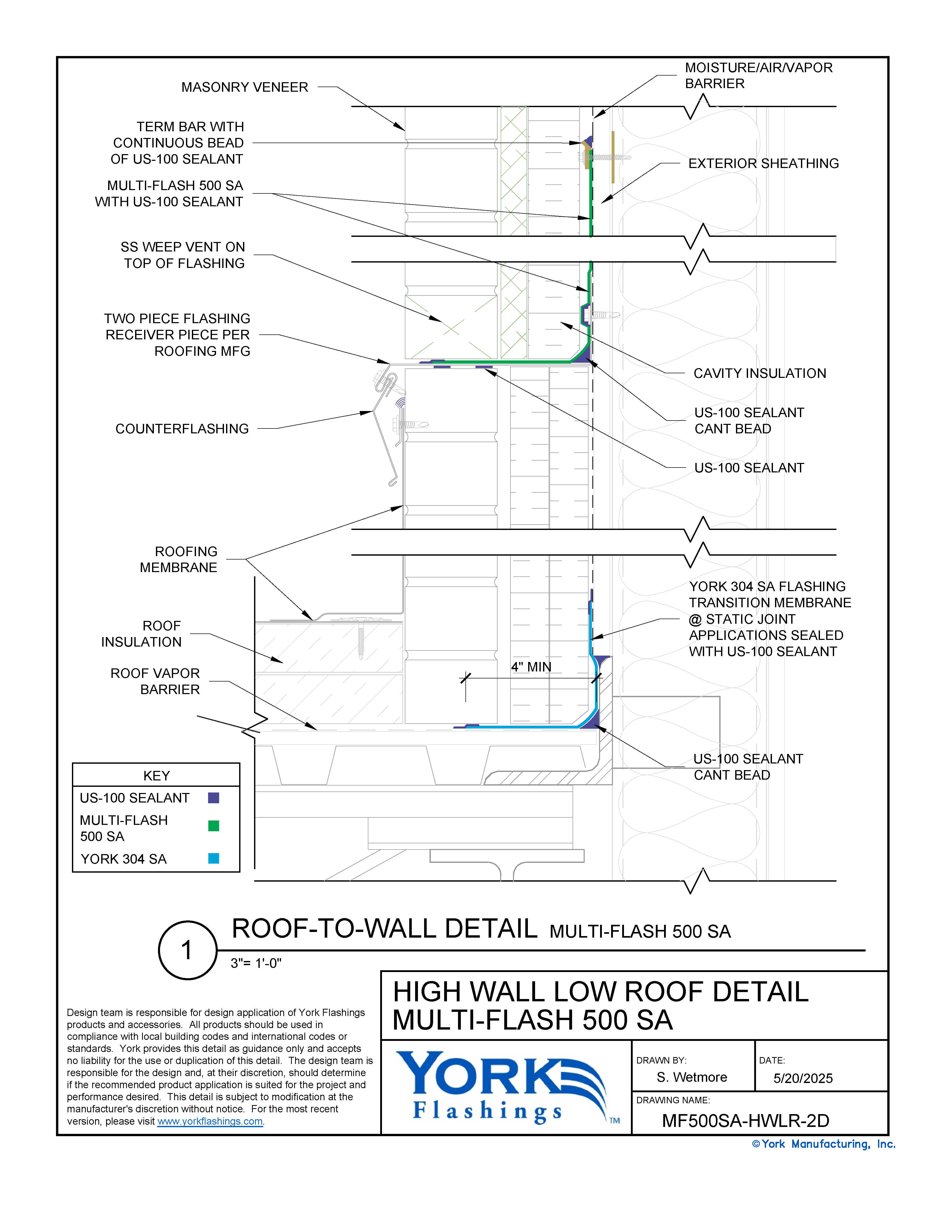

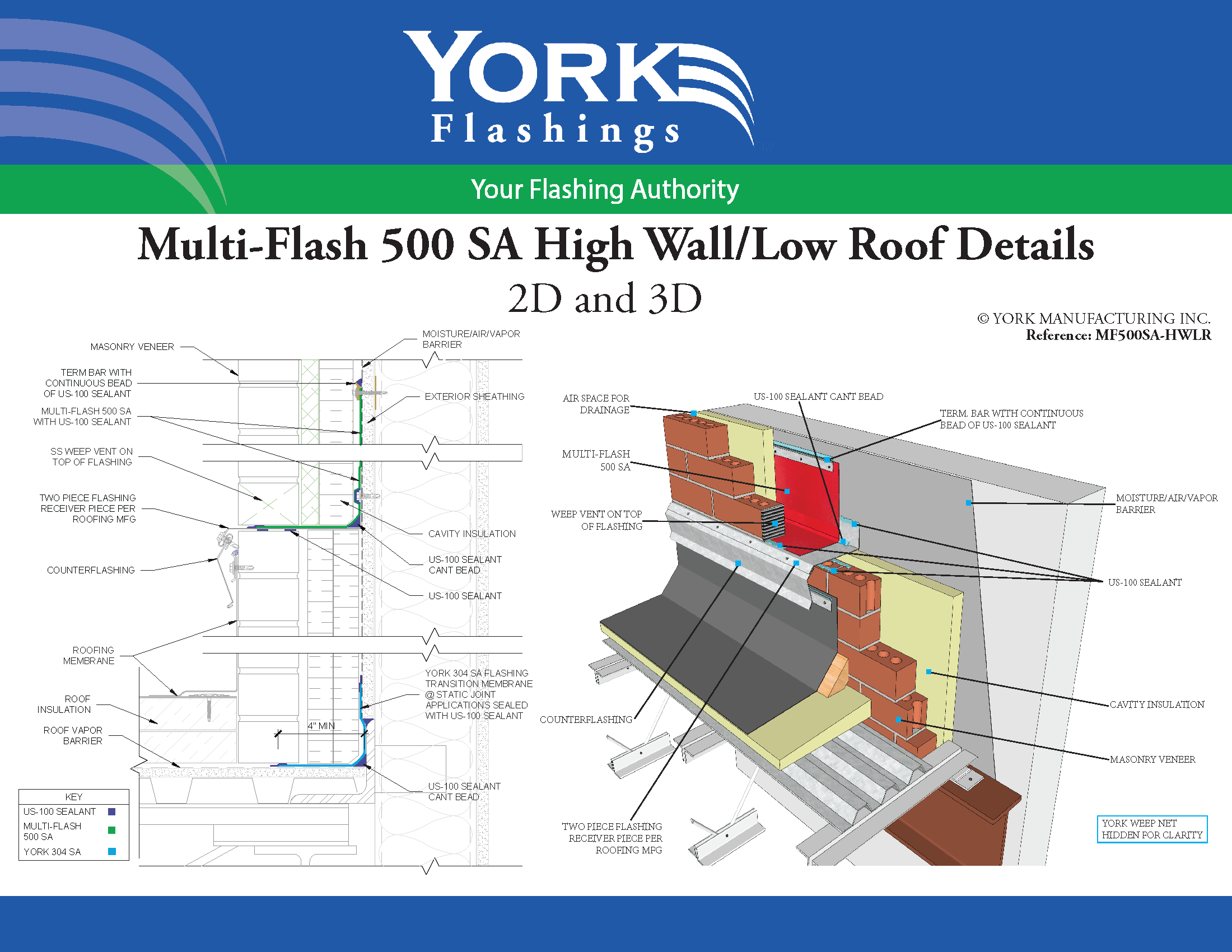

High Wall Low Roof

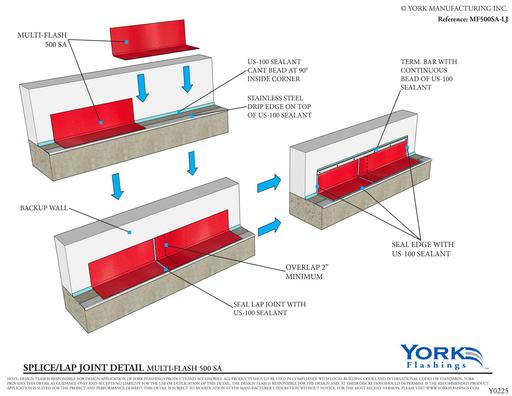

Lap Joint
Roof Parapet

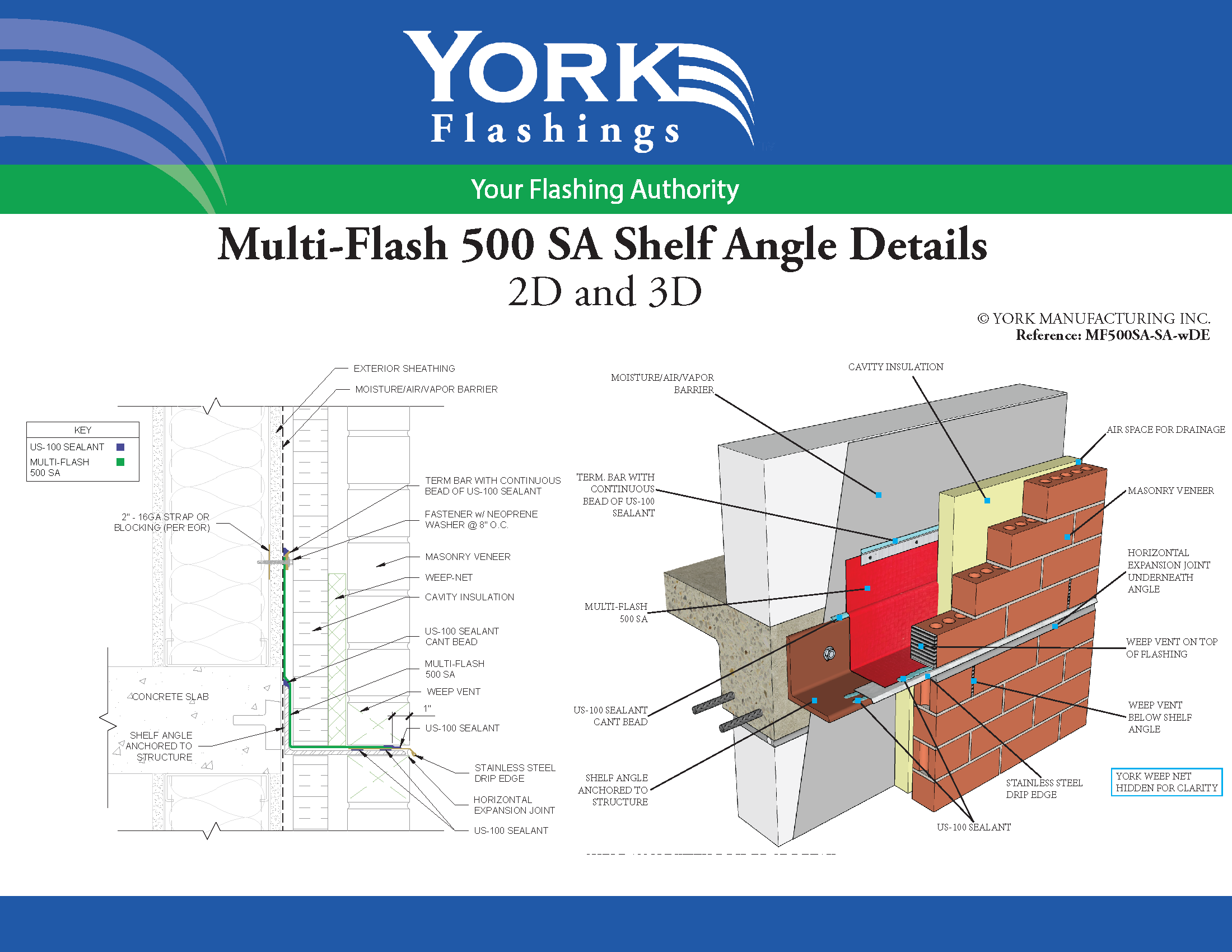

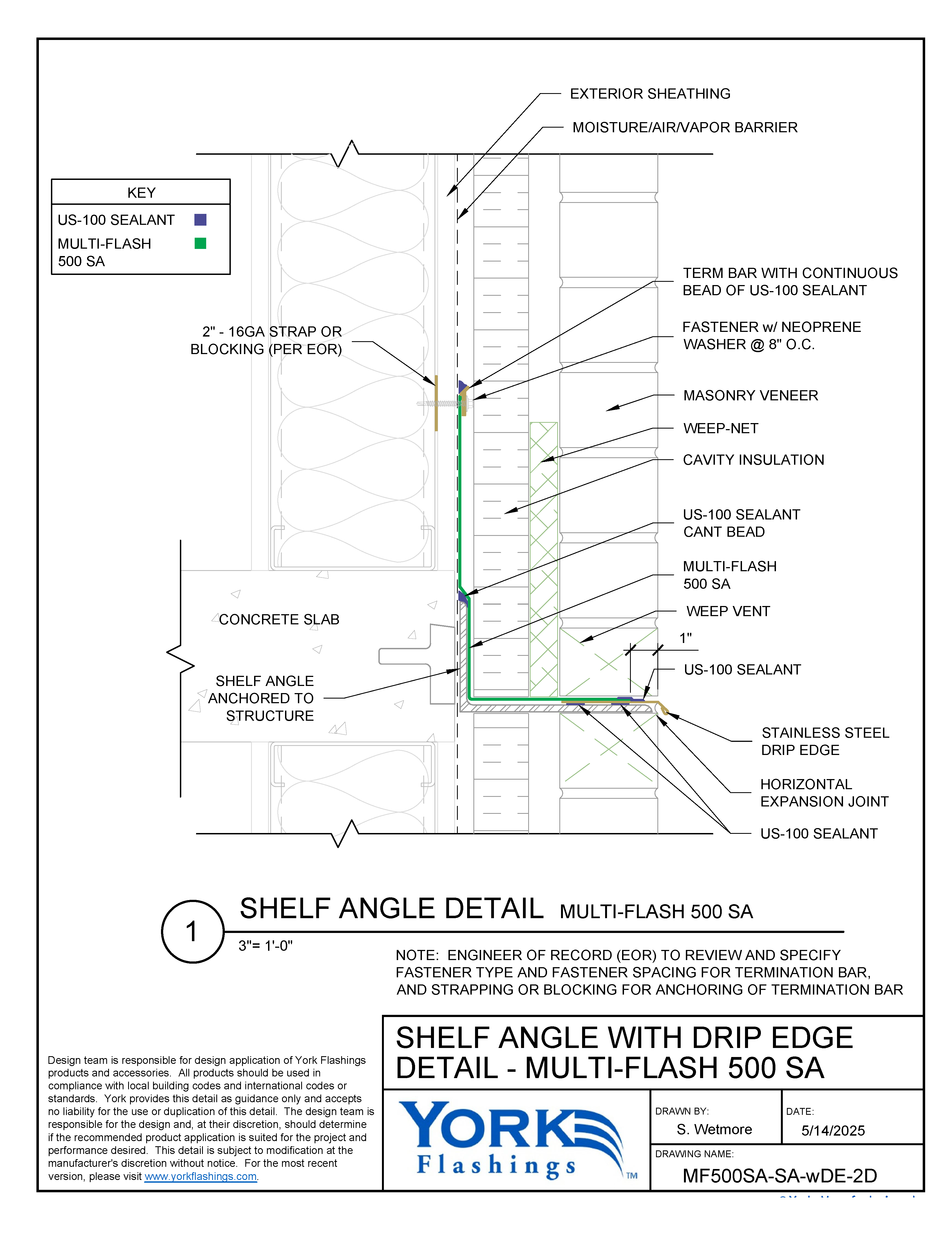

Shelf Angle

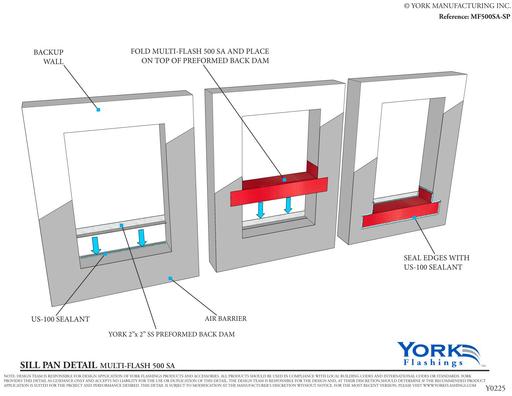

Sill Pan

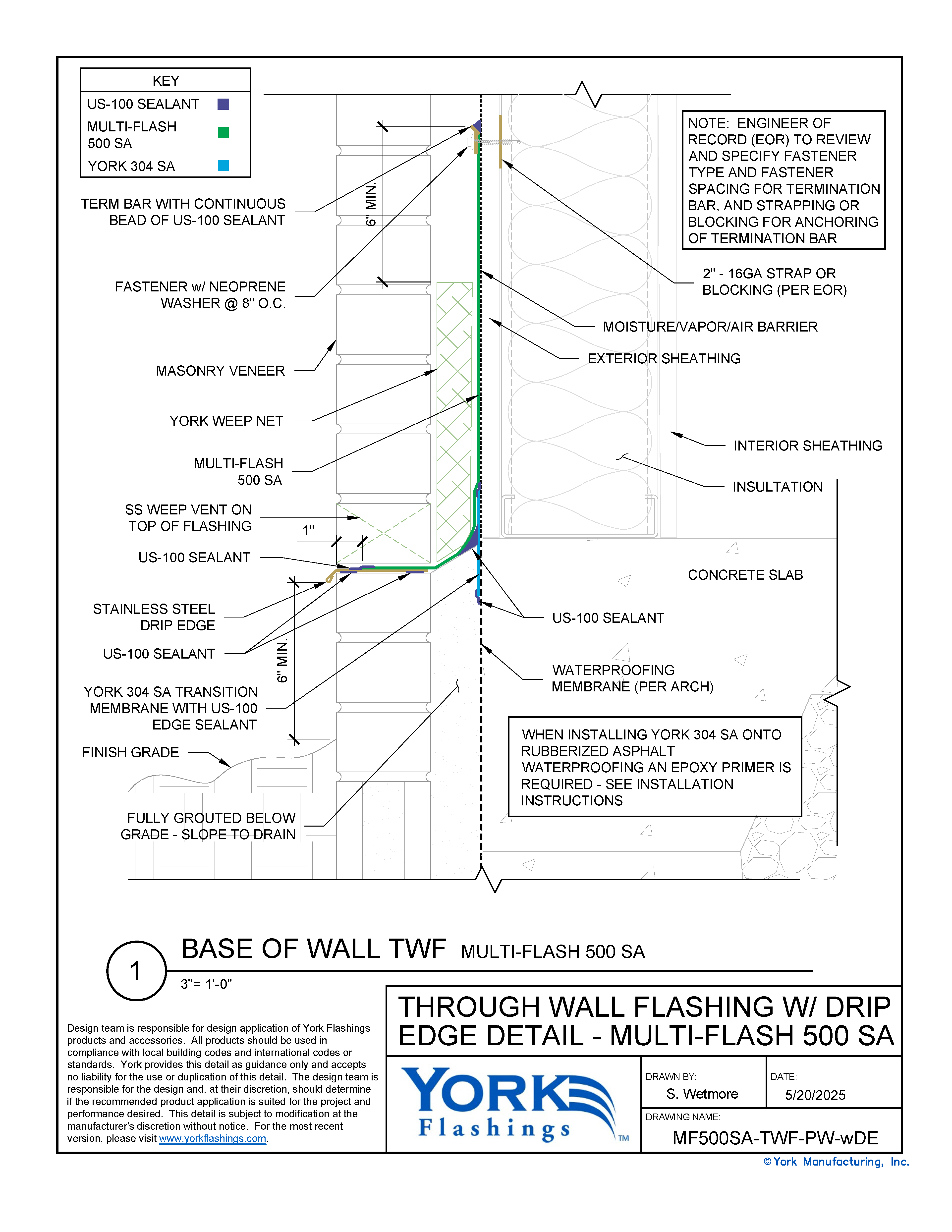

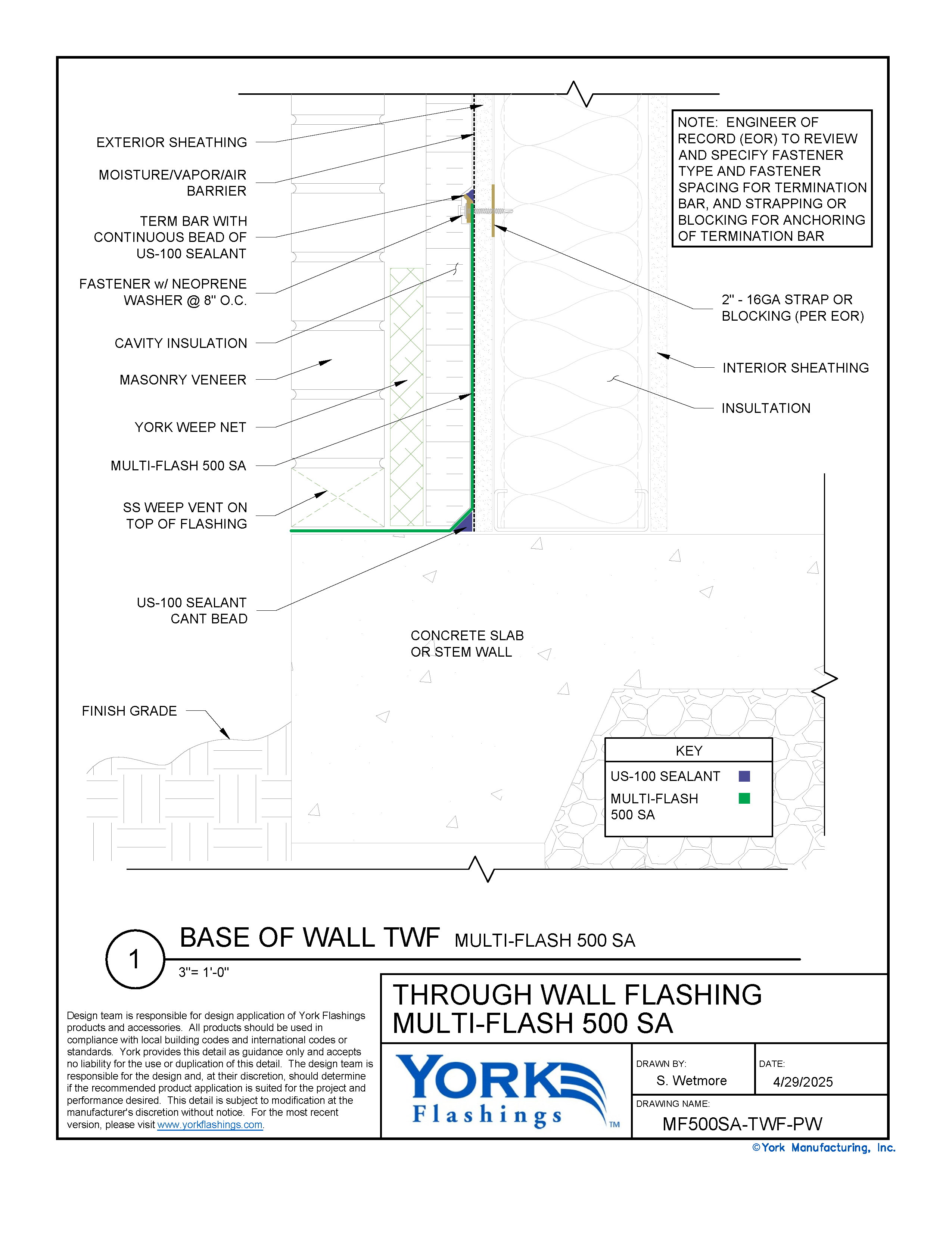

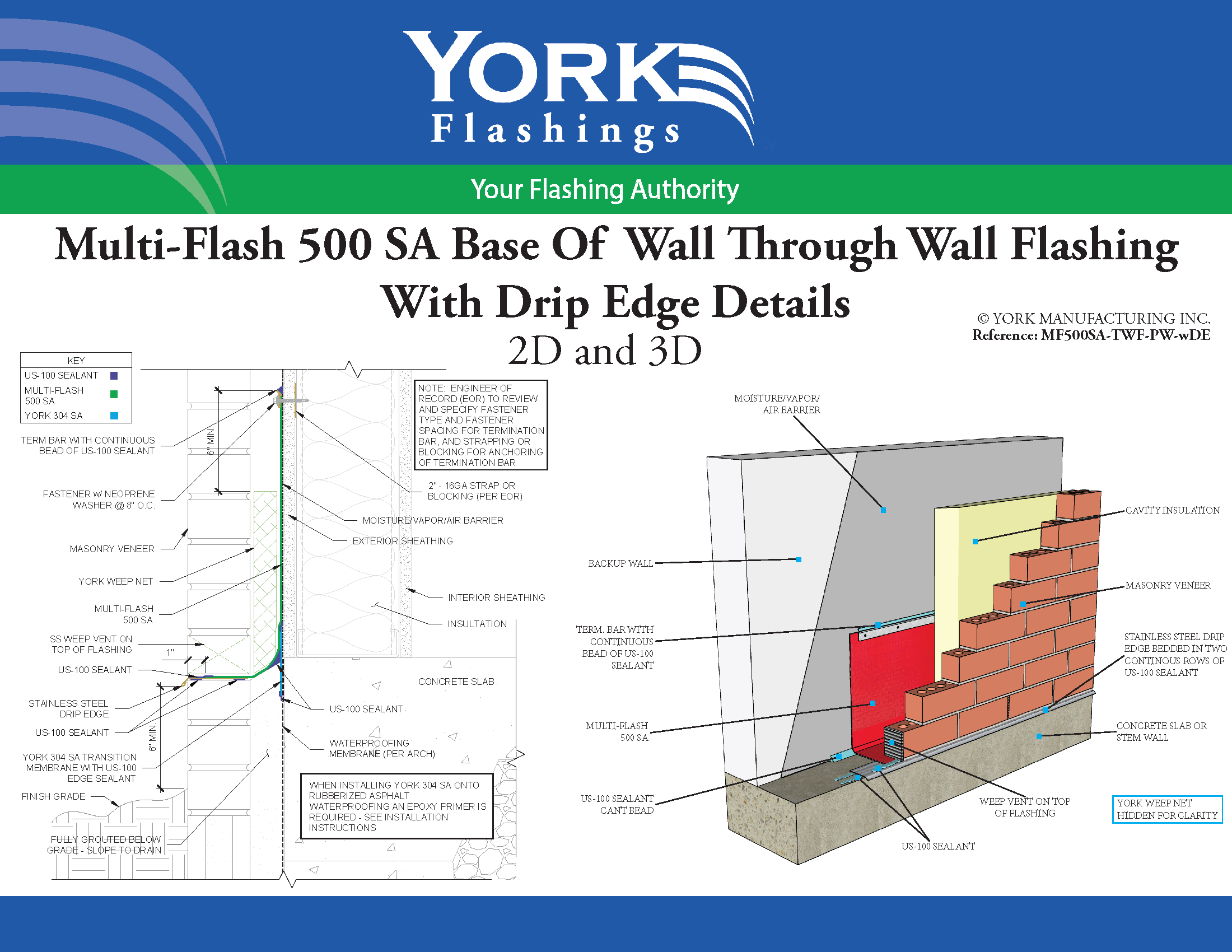

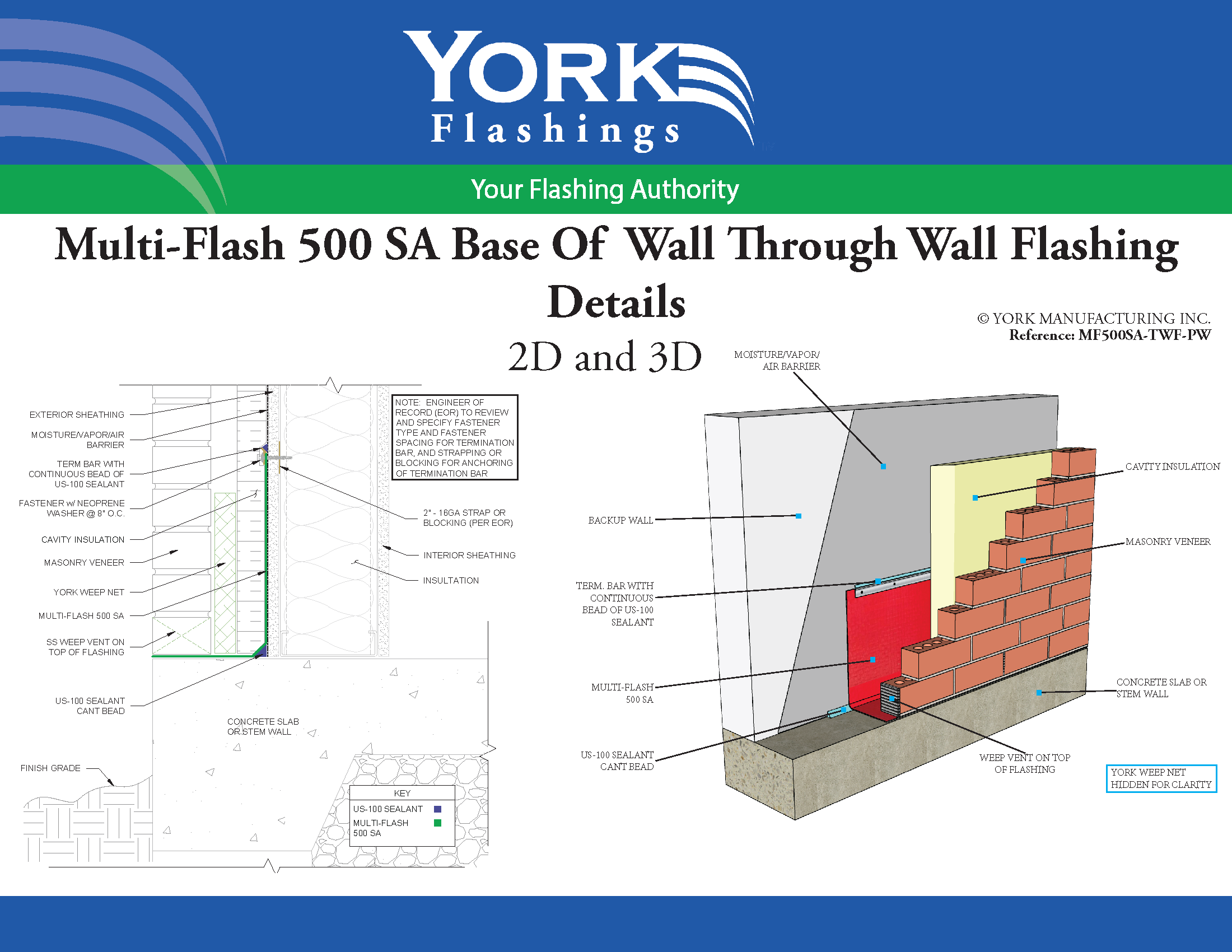

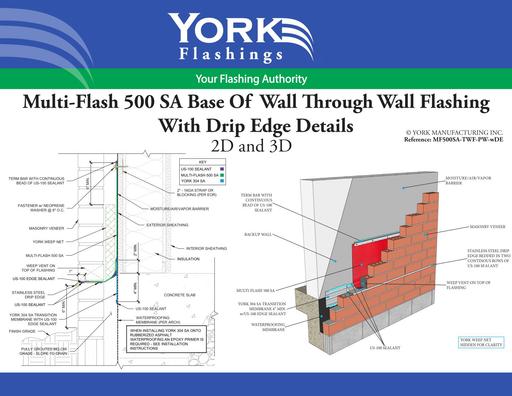

Through Wall Flashing

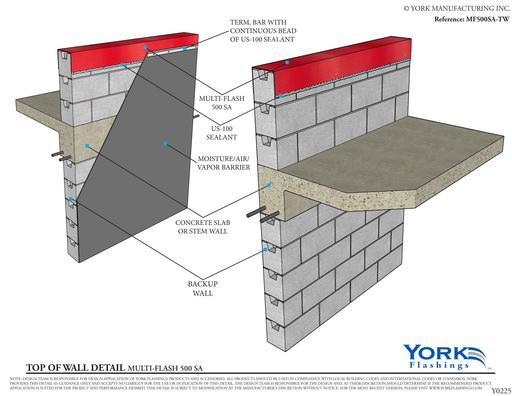

Top of Wall

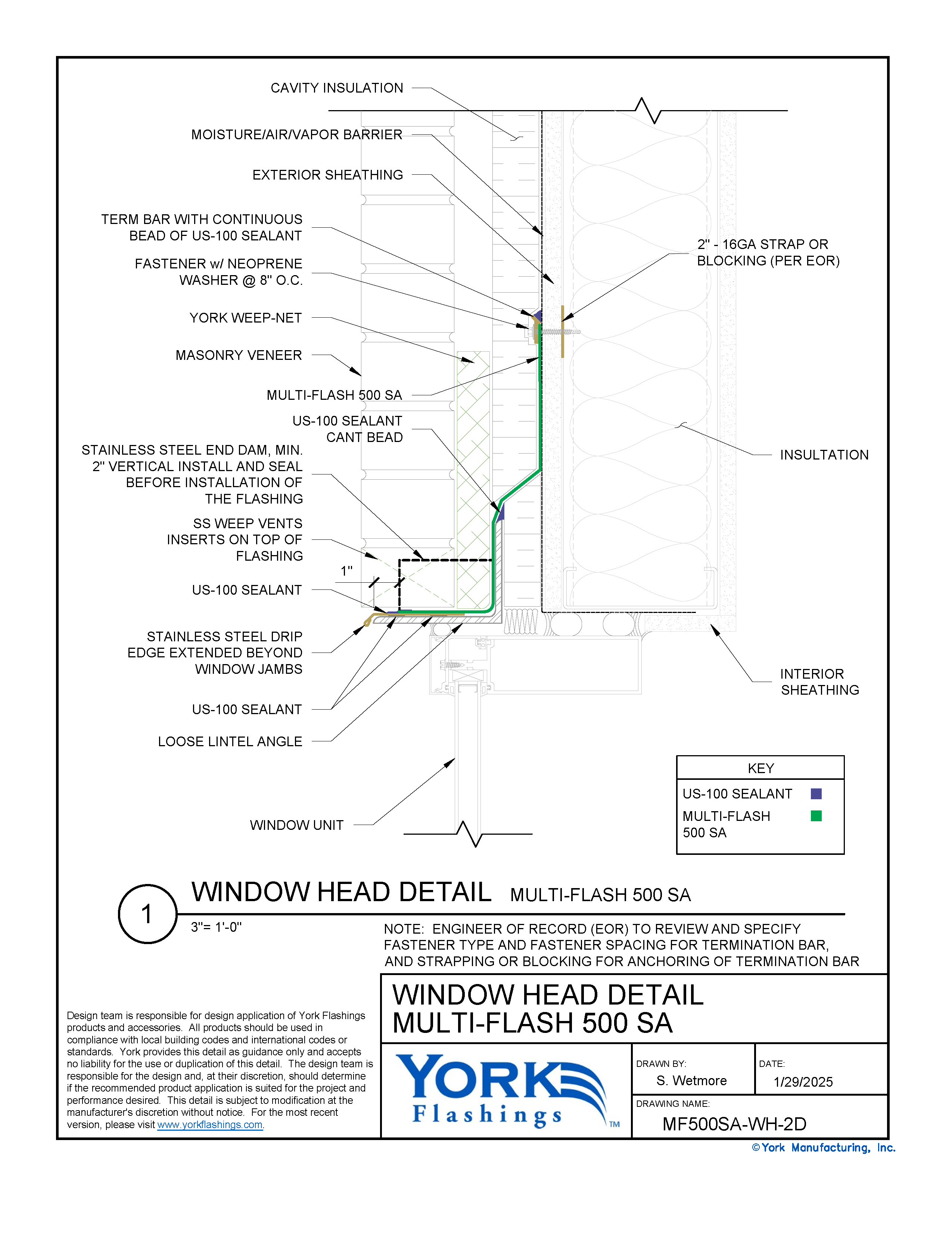

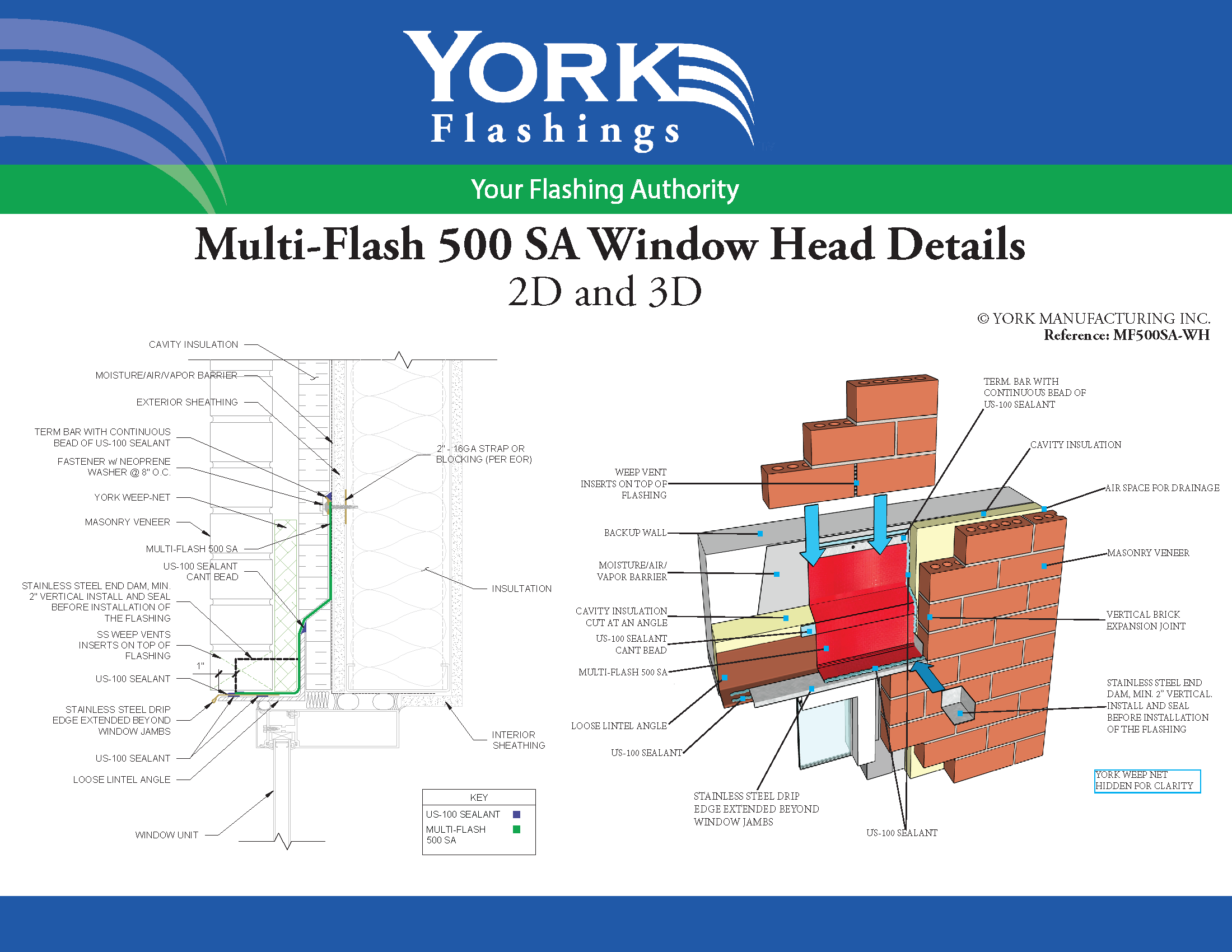

Window Head

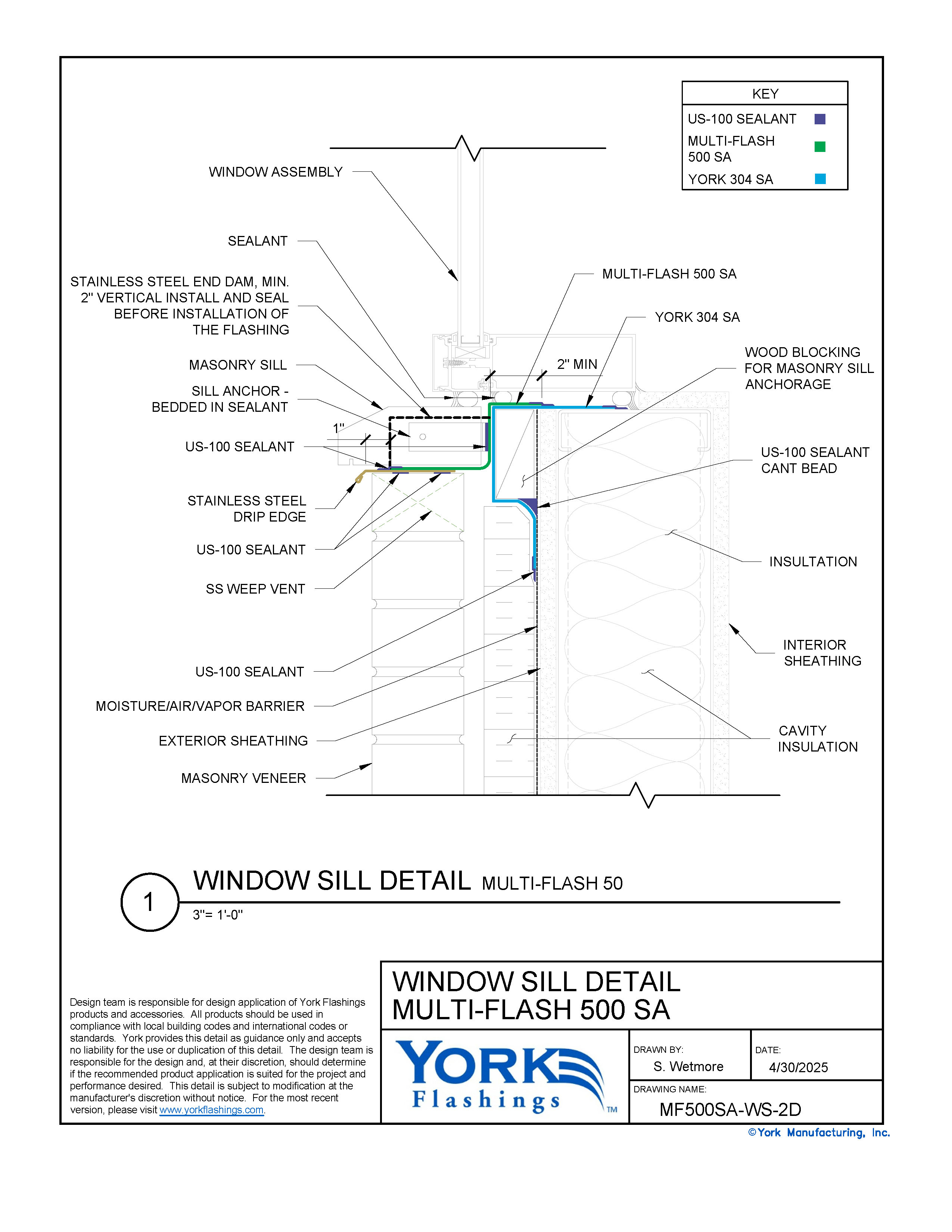

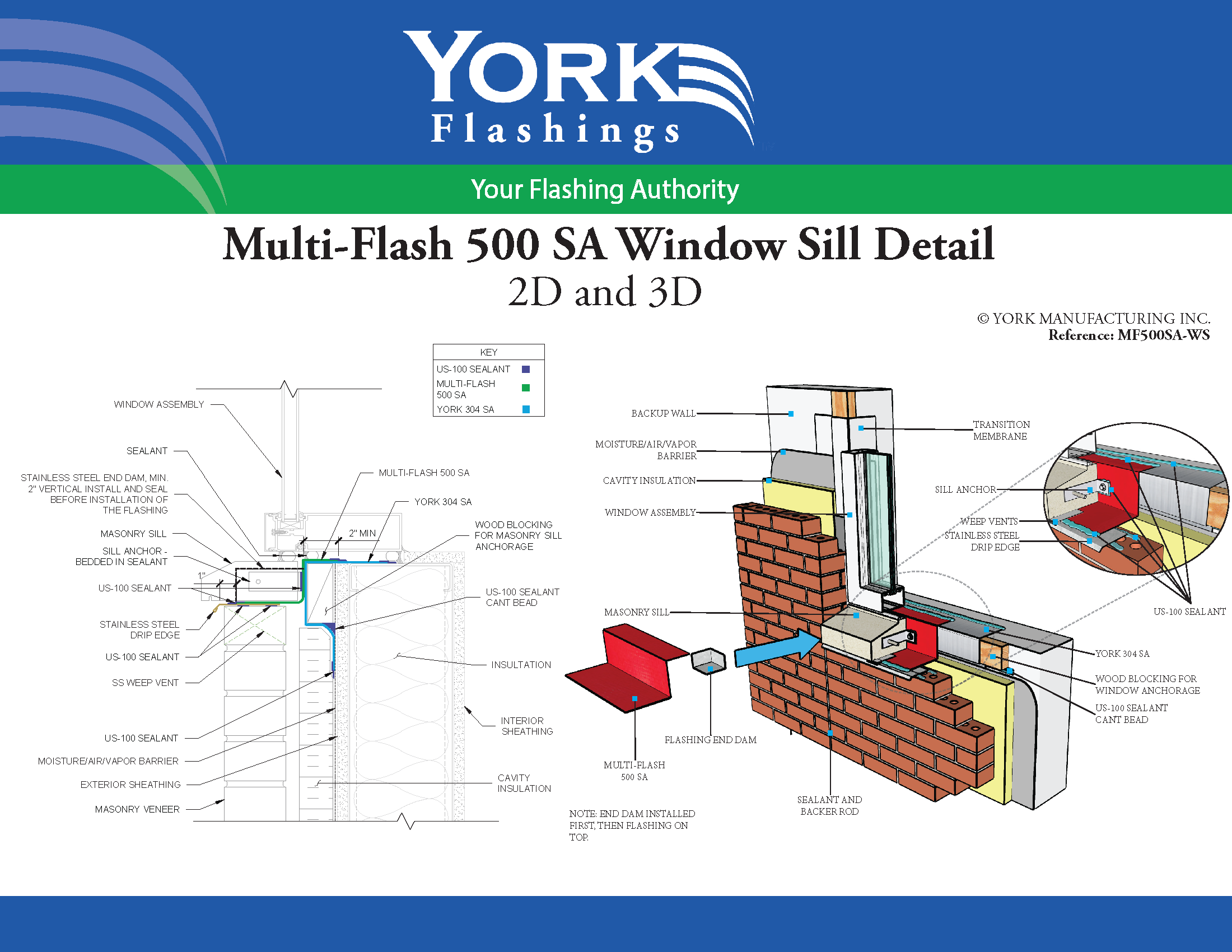

Window Sill
BIM
HPD
LEED
SDS
Submittal Form
Submittal
Sub Request
Multi-Flash 500 SA
Copper Flashing - Offers quality copper with a butyl adhesive for a watertight bond.
