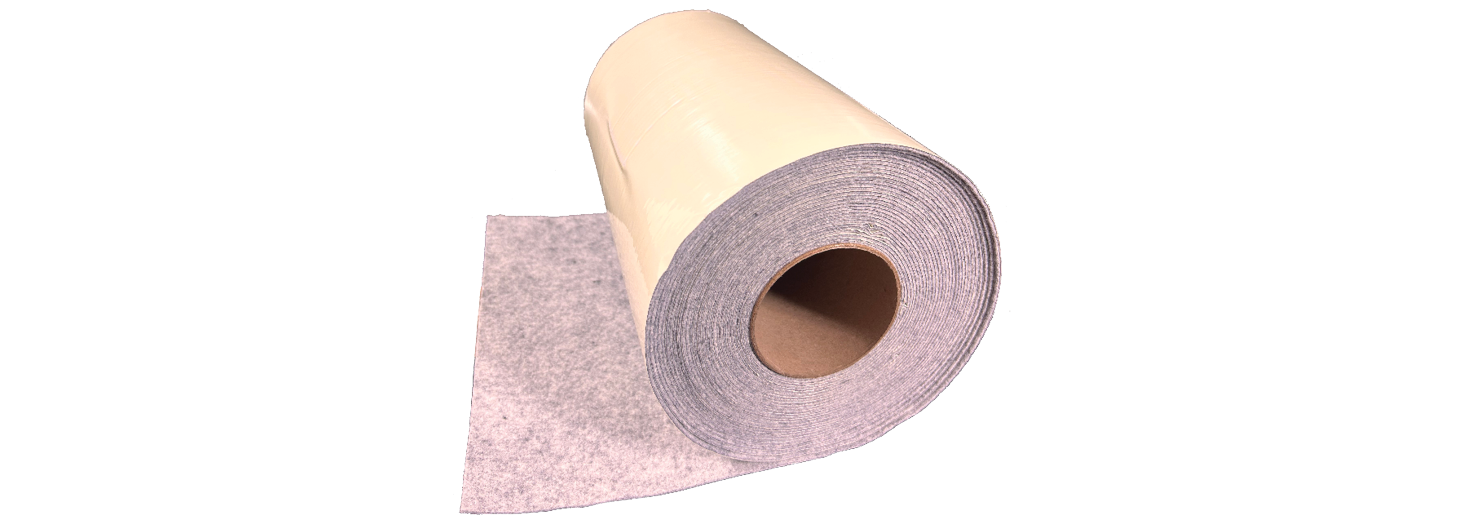

Flash-Vent SA SS
Designed with a flexible 2 mil sheet of type 304 stainless steel, 8 mils of butyl adhesive with a siliconized release liner, and drainage fabric laminated to one side. Flash-Vent™ SA SS is compatible with air barriers, spray polyurethane foams, insulation and construction sealants. Flash-Vent™ SA SS has a 20 year warranty.
- Available in type 304 (standard) & type 316for more corrosive/coastal areas
- 20 year warranty
- Co-polymer butyl adhesive
- Does not clog with mortar
- Eliminates need for mortar netting - Best in class puncture & tear resistance
- Puncture: ASTM E154; 2,500+ psi
- Tensile: ASTM D412; 100,000 - Mold resistant: passes ASTM D3273
- Made of 60% recycled stainless steel
- HPD# available upon request
- Storage temperature: 40°F to 90°F
- Shelf life: 2 years
- Continuous weep/active drainage
- Cavity Wall
- Stucco
- Manufactured Stone
- Thin Brick
- Air barriers
- Spray polyurethane Foam
- Cavity wall insulations
- Construction sealants
Tech Data

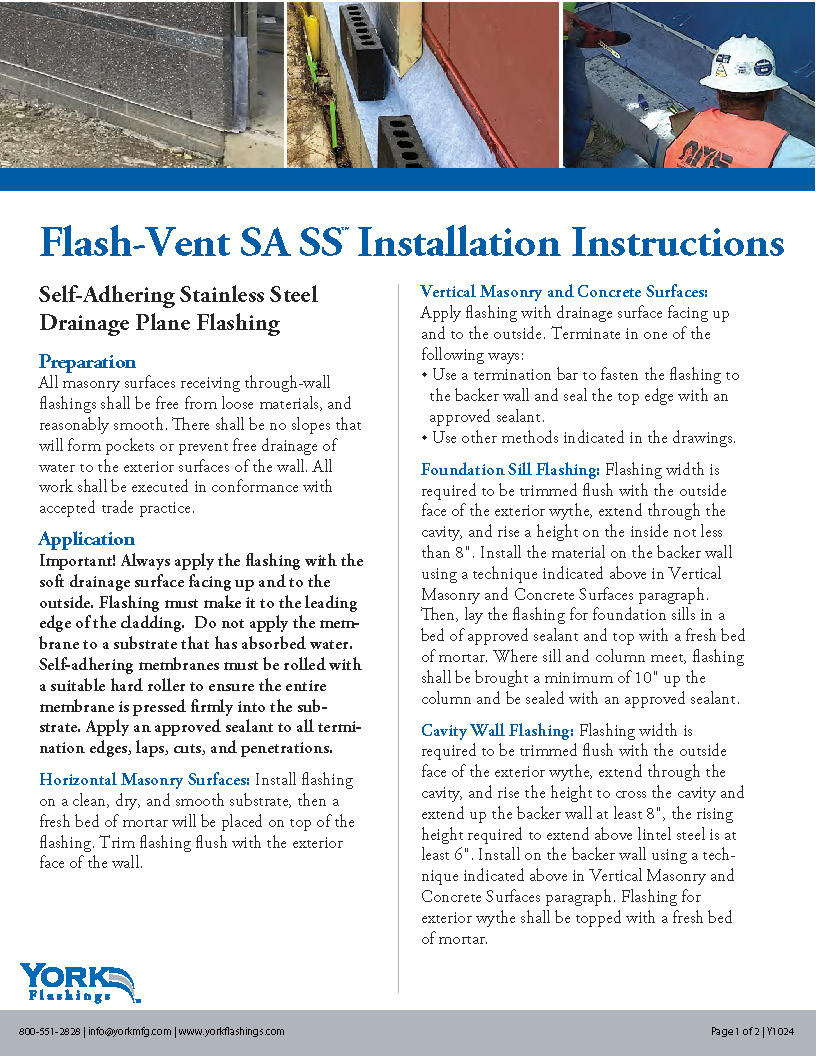

Installation Instructions

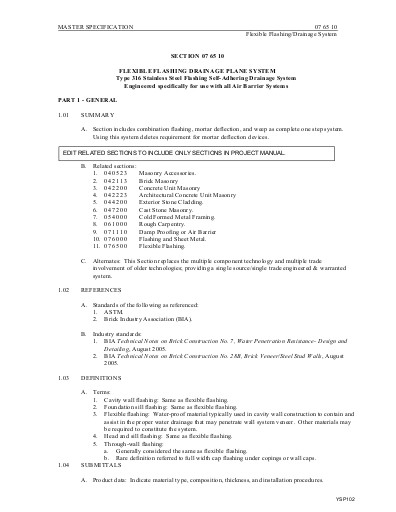

3 Part Spec
Details 2D and 3D

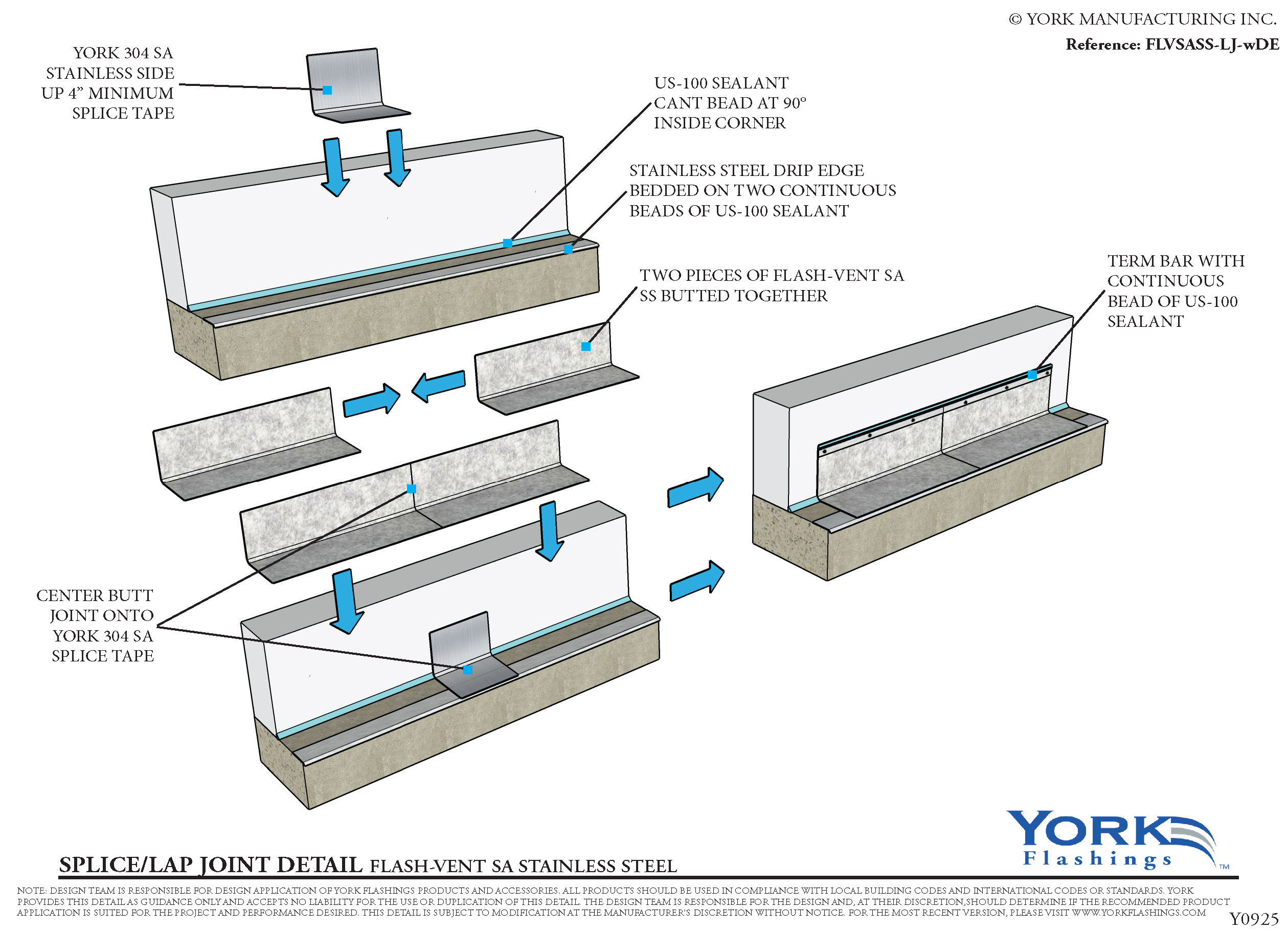

Flash Vent SA Splice

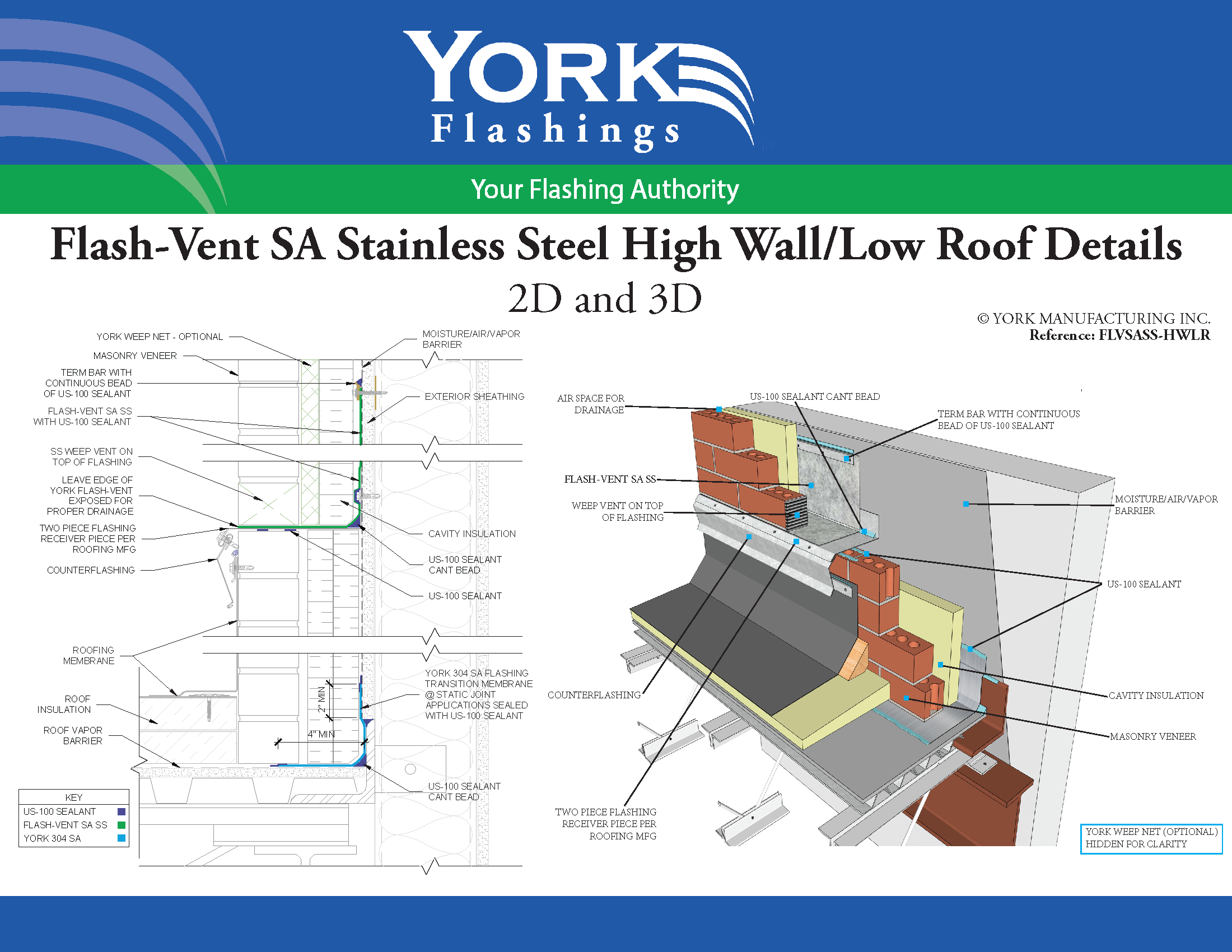

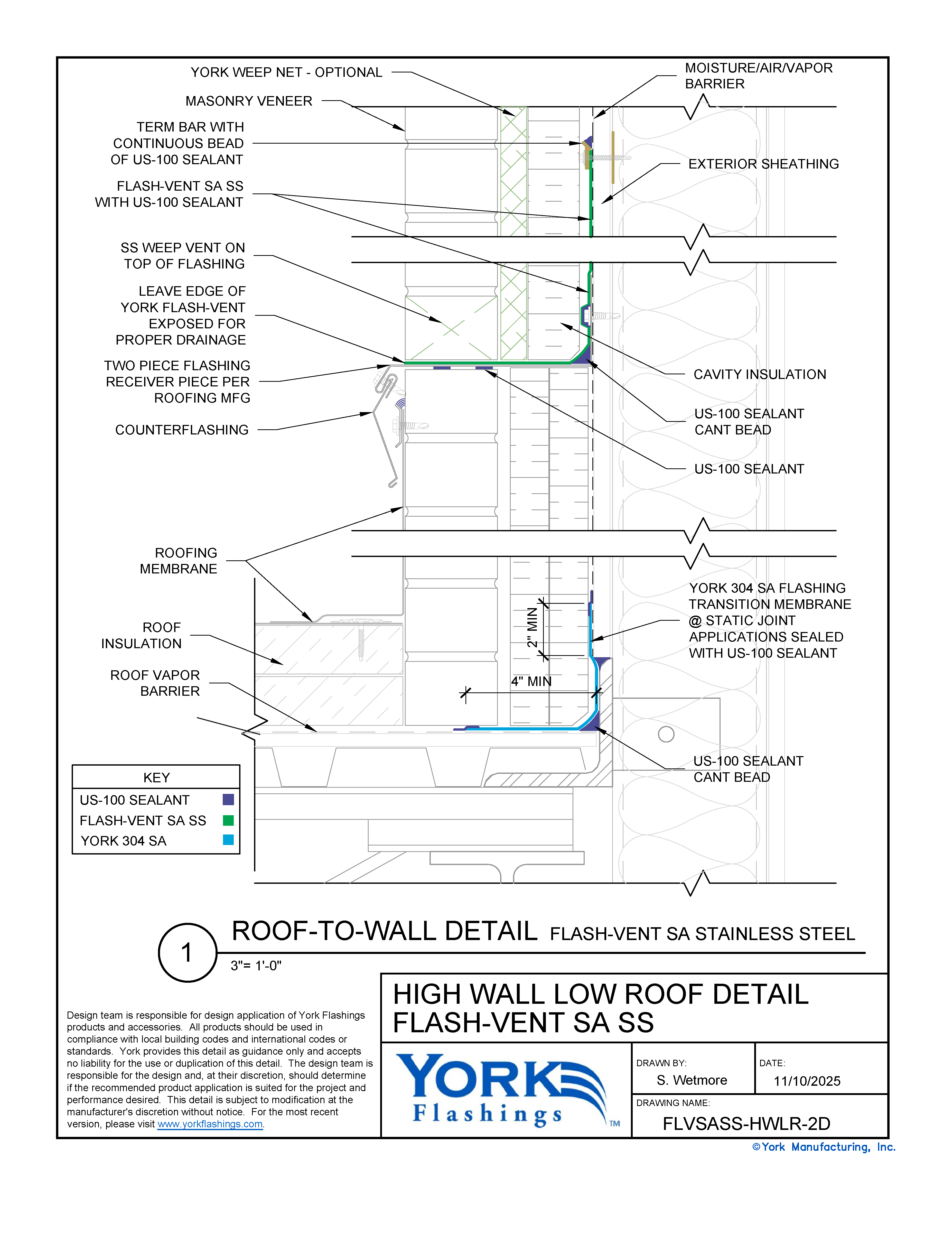

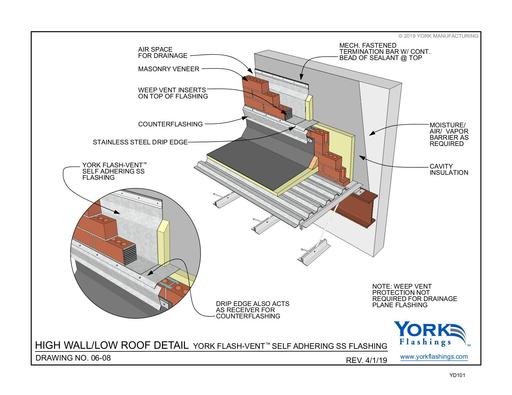

High Wall Low Roof

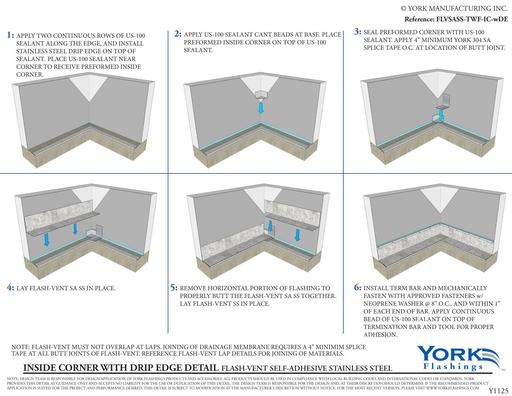

Inside Corner

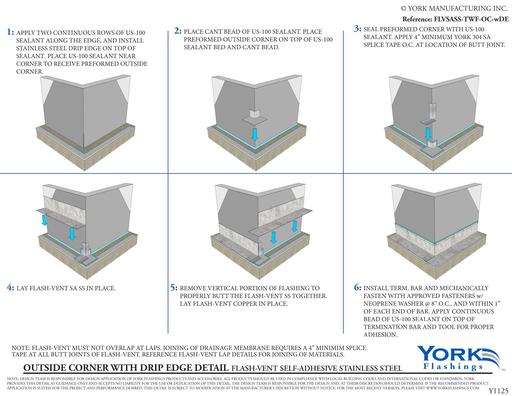

Outside Corner

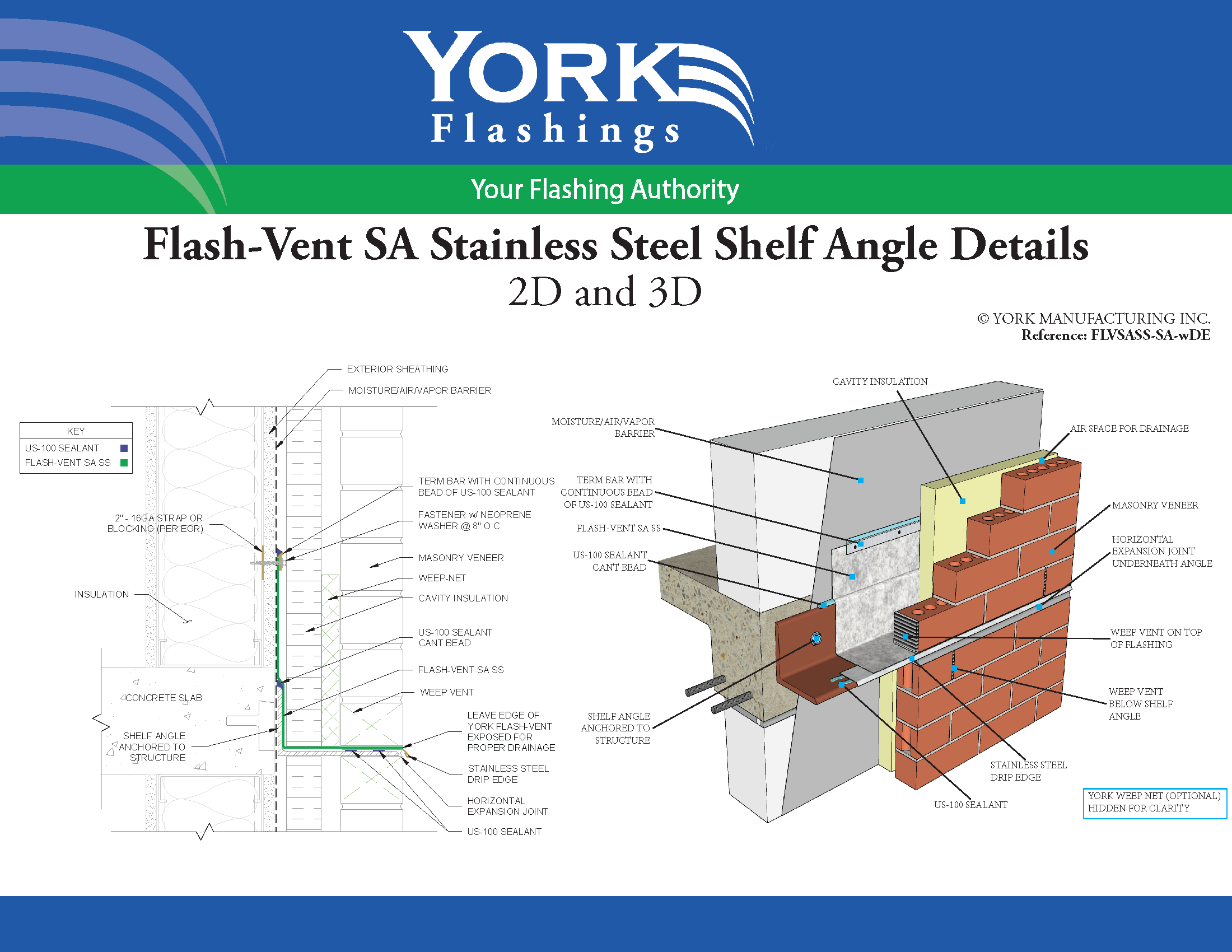

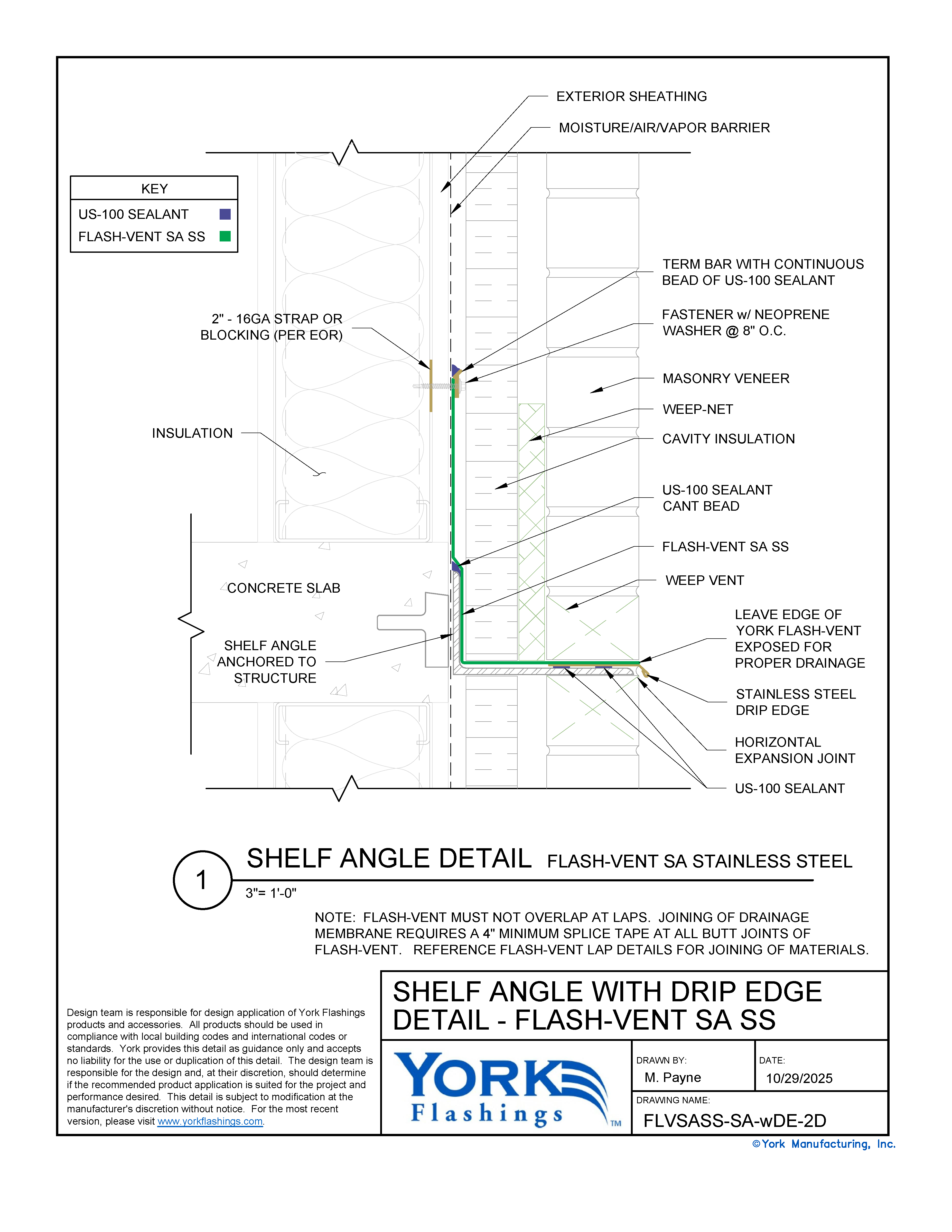

Shelf Angle

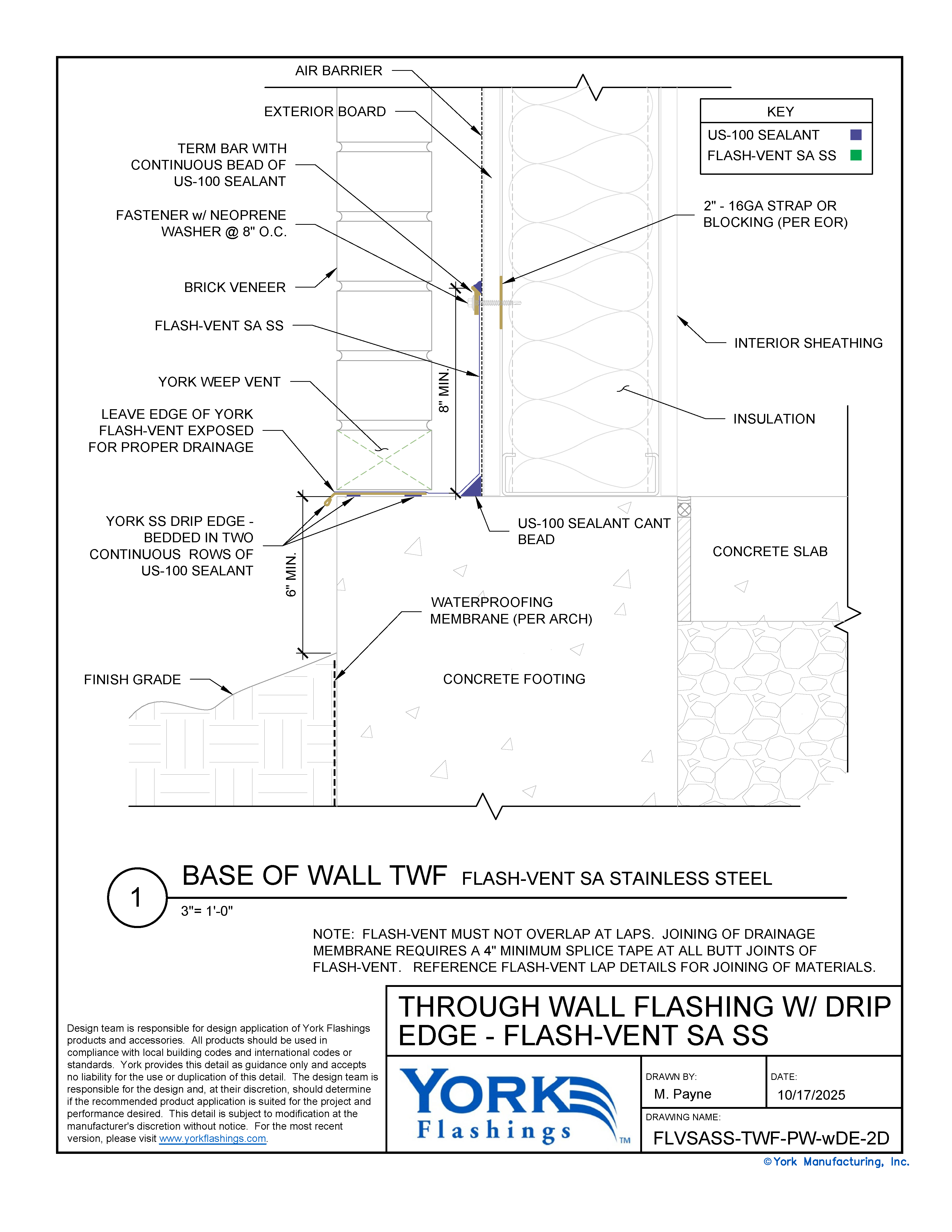

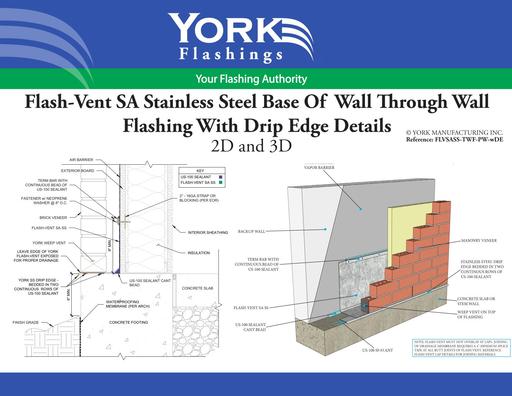

Through Wall Flashing

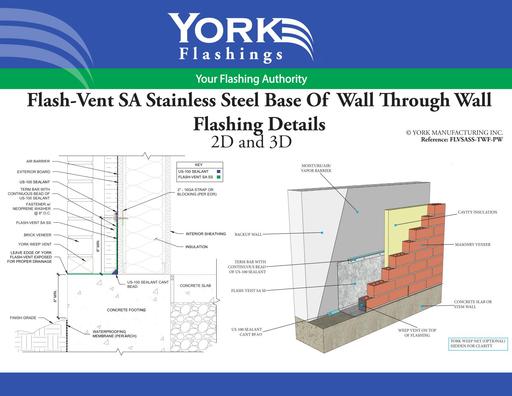

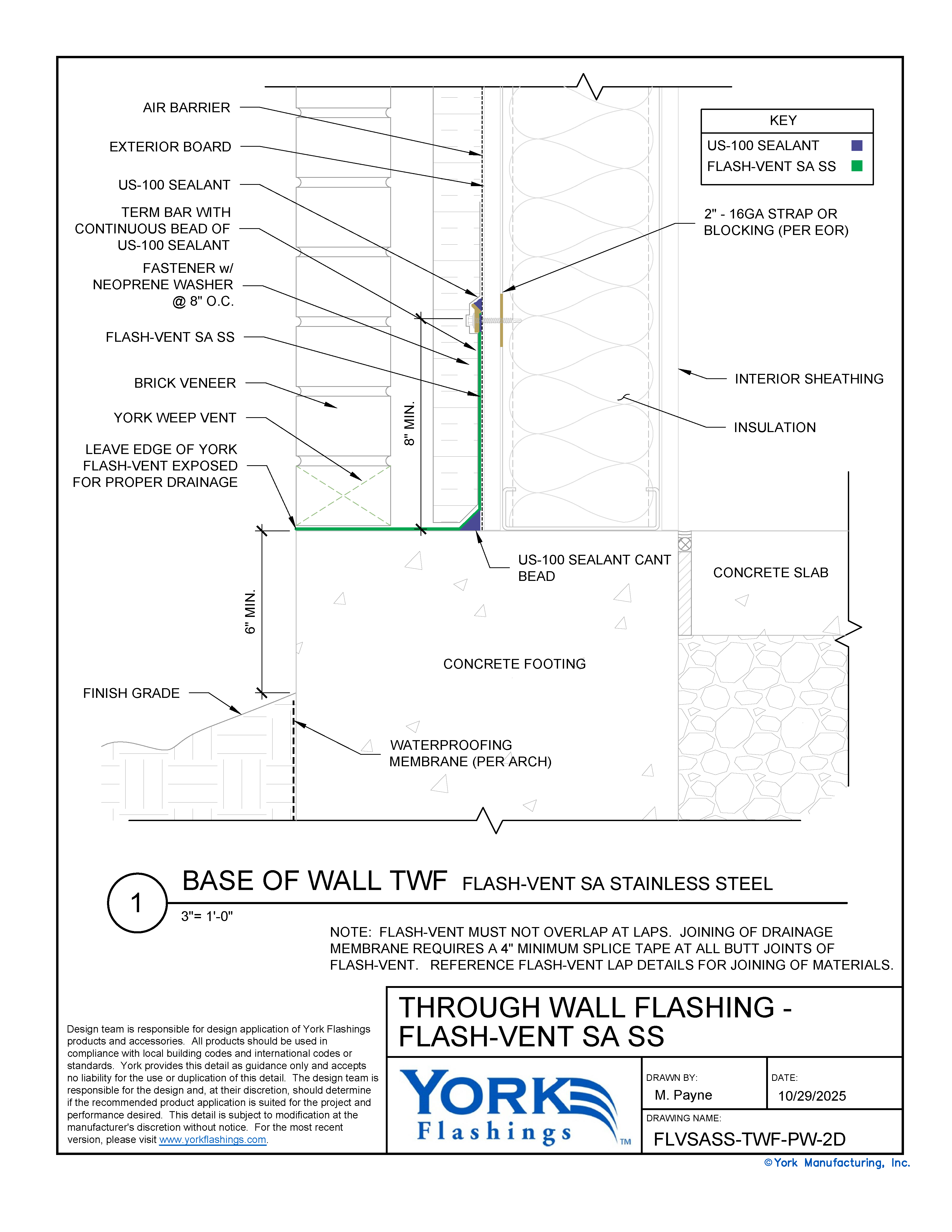

Through Wall Flashing No Drip Edge

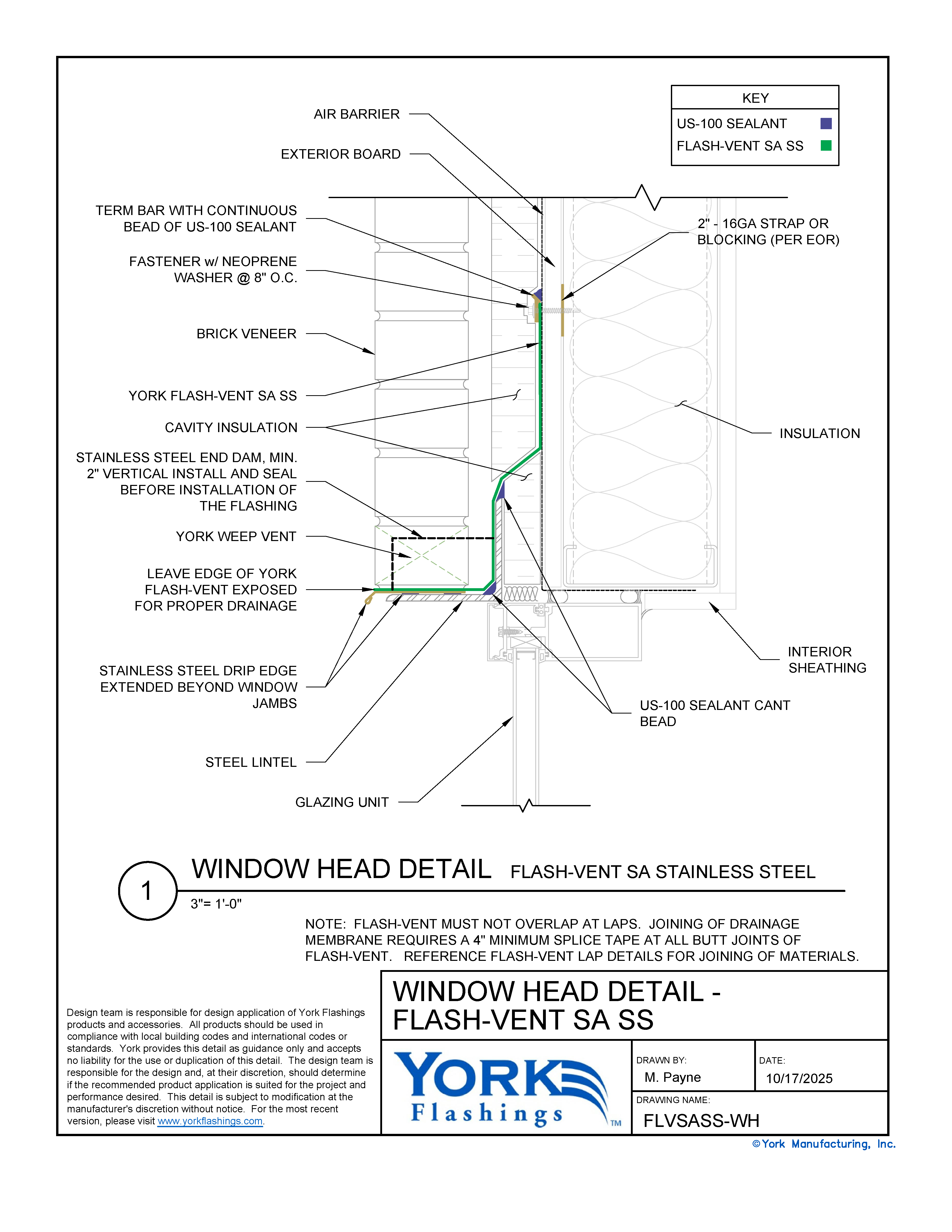

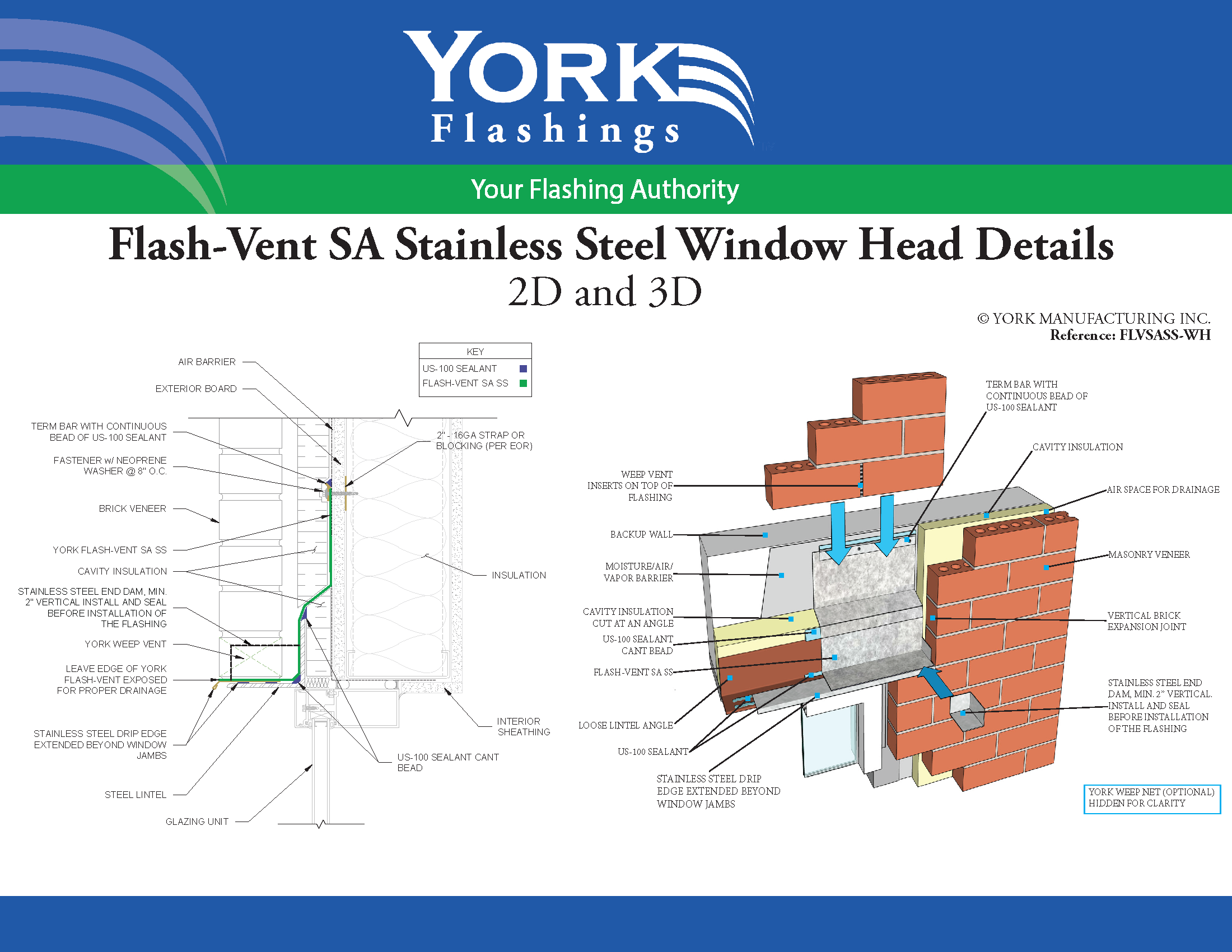

Window Head
BIM
HPD
LEED
SDS
Submittal Form
Submittal
Sub Request
Flash-Vent SA SS
Flash-Vent SA Stainless Steel Flashing - Does not clog, eliminating the need for mortar netting. Flash-Vent SA SS can be in cavity wall, stucco, manufactured stone, and thin brick applications and is compatible with air barriers, spray polyurethane foams, cavity wall insulations, and construction sealants.
