Installation Instructions

No-Bow Termination Strip

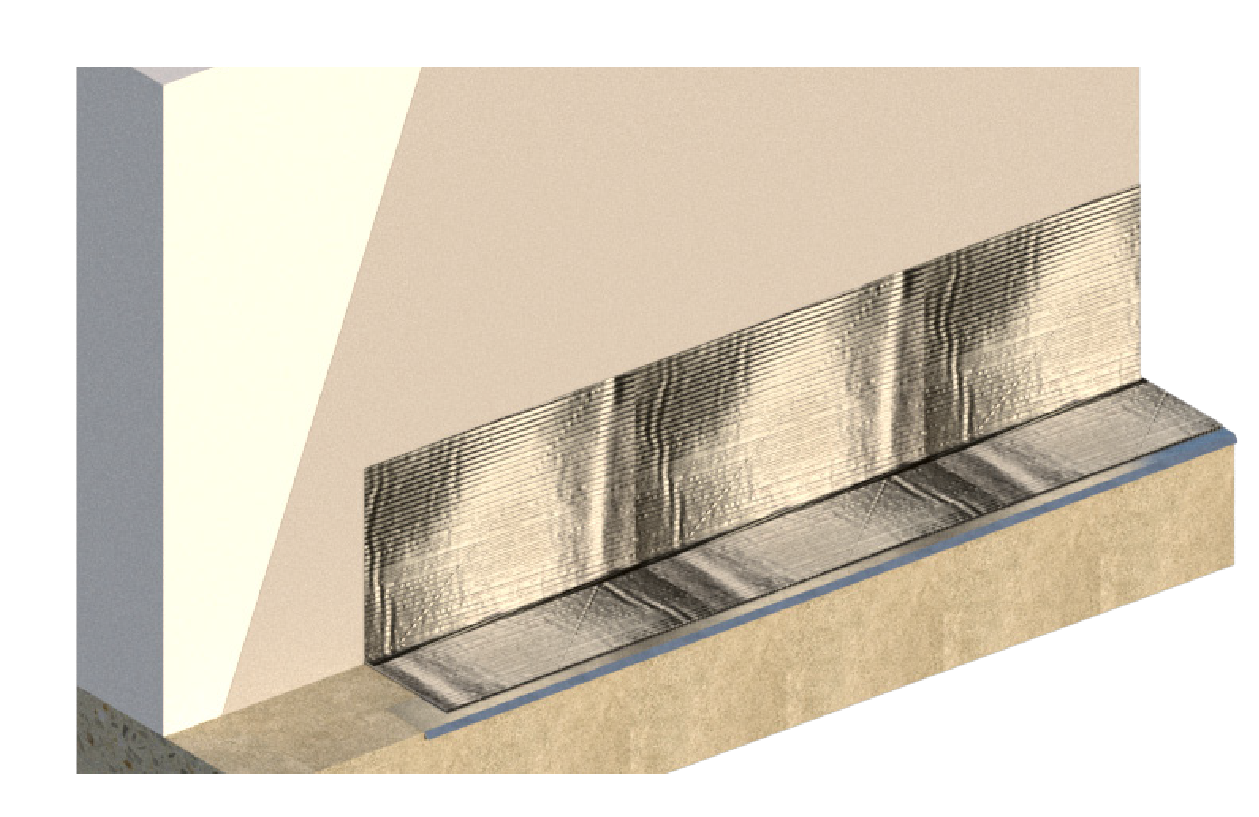

1.Choose and install your flashing per manufacturers installation instructions.

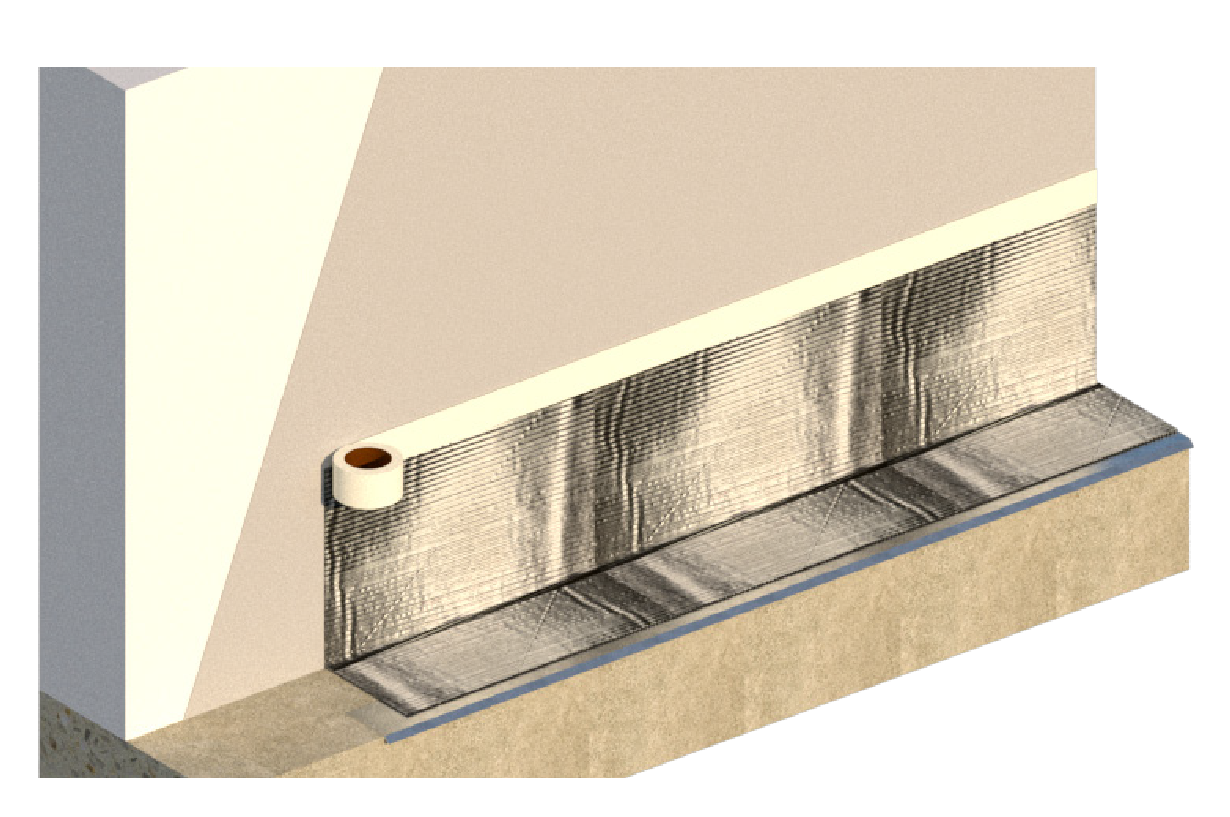

2. Remove the release liner and place 1" of the Termination Strip on the flashing and the other 1" on the backup substrate. (Roll the termination bar with a hard roller)

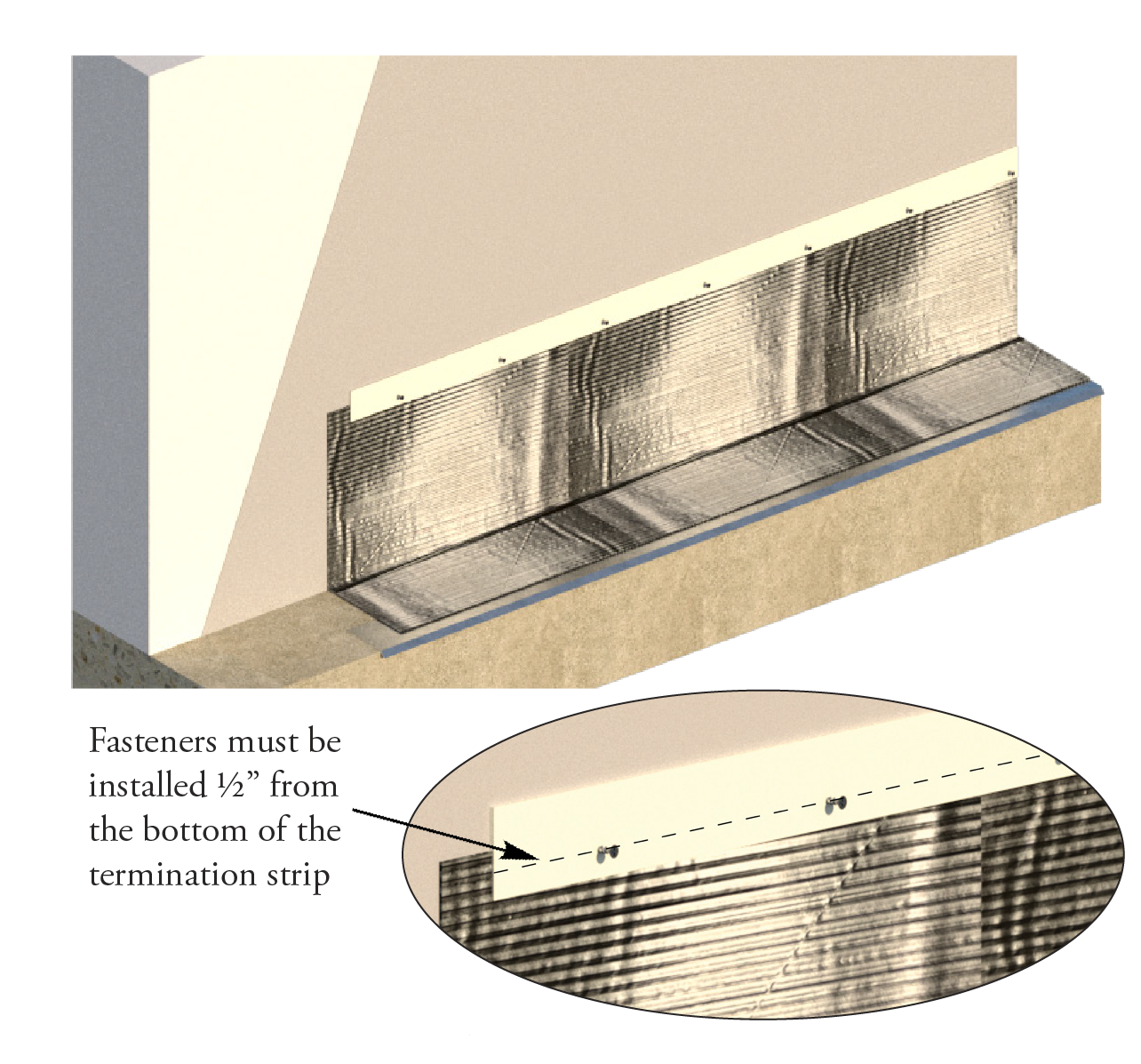

3. Install fasteners through the Termination Strip, puncturing through the facer of the flashing. (Install fasteners per BIA spacing recommendations)

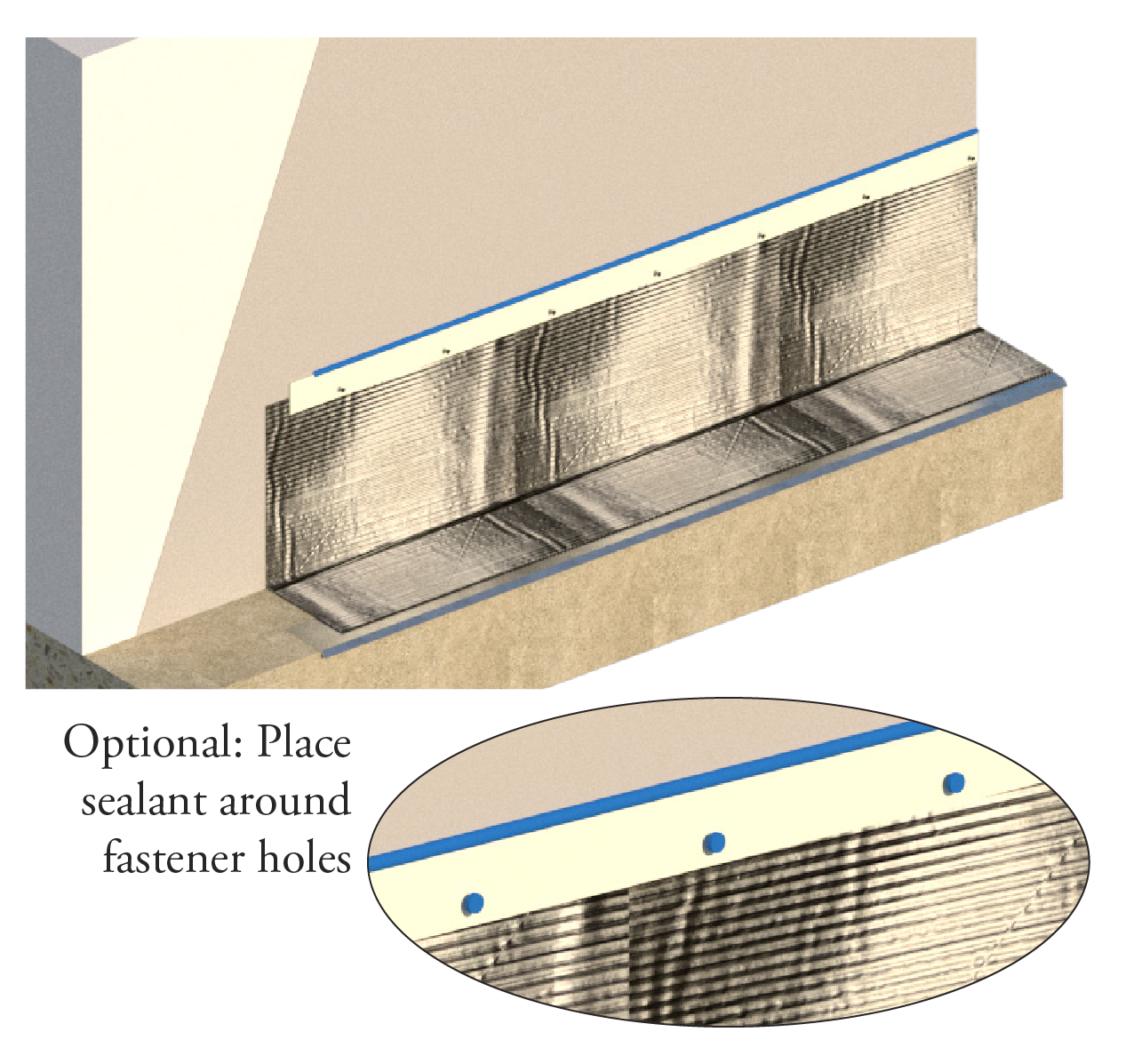

4. Apply a compatible sealant at the top of the termination bar.
