AirSill Installation Instructions

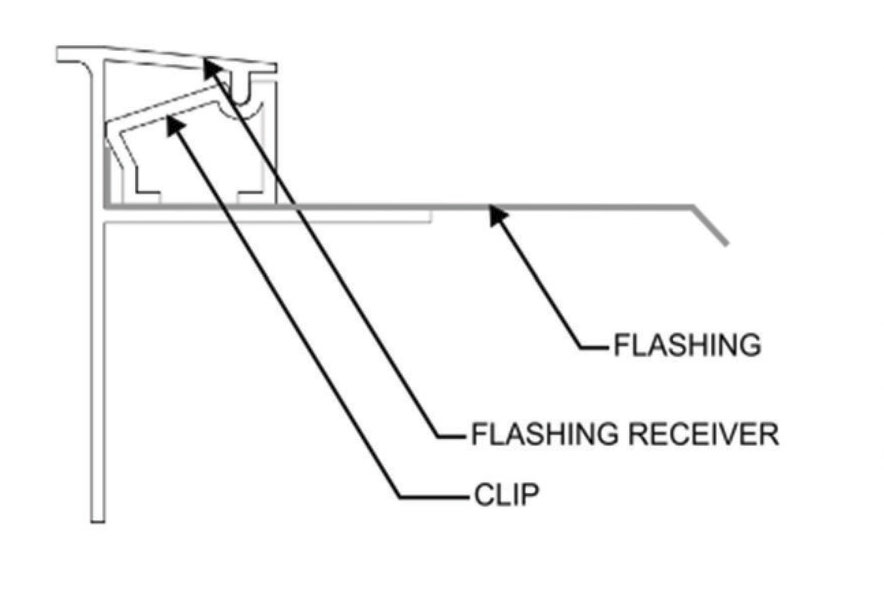

Flashing Receiver and Clip

Application

Step 1:

  • Secure York AirSill receiver at perimeter of wall opening with adhesive and/or fasteners
  • Verify adhesive compatibility with substrate
  • Fully bed AirSill receiver in substrate compatible sealant or mastic (recommended)
  • Predrill and seal fasteners (recommended)

Step 2: Place flashing into receiver channel

Step 3: Secure flashing with receiver clip

  • See York AirSill conceptual details for more information
  • Installation instructions are available for more advanced designs (e.g. collar flashing applications)
  • Project specific details upon request
